MAX4212

PRODUCTION

Miniature, 300MHz, Single-Supply, Rail-to-Rail Op Amps with Enable

Data Sheet (Rev. 3)

Part Models: 2
1ku List Price: Starting From $4.32

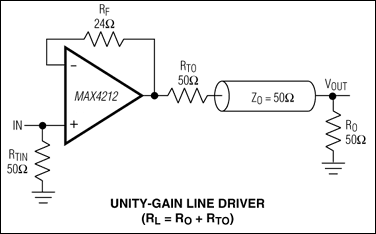

Viewing:

Part Details

High Speed:
- 300MHz -3dB Bandwidth (MAX4212/MAX4213)
- 200MHz -3dB Bandwidth (MAX4216/MAX4218/MAX4220)
- 50MHz 0.1dB Gain Flatness (MAX4212/MAX4213)
- 600V/µs Slew Rate
Single 3.3V/5.0V Operation
Rail-to-Rail Outputs
Input Common-Mode Range Extends Beyond V_EE
Low Differential Gain/Phase: 0.02%/0.02°
Low Distortion at 5MHz:
- -78dBc SFDR
- -75dB Total Harmonic Distortion
High-Output Drive: ±100mA
400µA Shutdown Capability (MAX4213/MAX4218)
High-Output Impedance in Off State (MAX4213/MAX4218)
Space-Saving SOT23, µMAX, or QSOP Packages

Part Models: 2
1ku List Price: Starting From $4.32

Documentation

Data Sheet 1

MAX4212-MAX4220: Miniature, 300MHz, Single-Supply, Rail-to-Rail Op Amps with Enable Data Sheet (Rev.3) 11/24/2003

Technical Articles 2

Analog Filter Design Demystified 02/13/2003

Driving Video Lines 07/29/2002

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX4212EUK+	5-SOT_23-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX4212EUK+T	5-SOT_23-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 11, 2021 - 1703RA ASSEMBLY
		pcn_1703ra
MAX4212EUK+	PRODUCTION
MAX4212EUK+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

SPICE Model 1

MAX4212 SPICE Macro Model
