MAX3510

Upstream CATV Amplifier

Data Sheet (Rev. 4)

Viewing:

Part Details

Ultra-Low Power-Up/Down Transients, 7mV Typical at 59dBmV Output
Single +5V Supply
Output Level Ranges from <8dBmV to 64dBmV
Gain Programmable in 1dB Steps
Low Transmit Output Noise Floor: -47dBmV (160kHz BW)
Low Transmit-Disable Output Noise: -70dBmV
Two Power-Down Modes

Documentation

Data Sheet 1

MAX3510: Upstream CATV Amplifier Data Sheet (Rev.4) 06/13/2007

Design Note 1

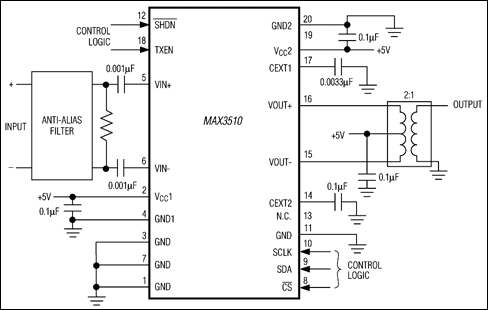

Block Diagram for MAX3510 Upstream CATV Amplifier Application 05/01/2001

Technical Articles 2

Converting S-Parameters from 50Ω to 75Ω Impedance 11/21/2003

Performance of Maxim's Cable Upstream Amplifier Meets DOCSIS 2.0 Requirements 03/25/2003
