MAX2693L

PRODUCTION

GPS/GNSS Low-Noise Amplifiers with Integrated LDO

Low-Noise-Figure GPS LNA in an Ultra-Small WLP; Versions Available with Different Levels of Gain

Data Sheet (Rev. 1)
Part Models
2
1ku List Price
Starting From $0.86
Viewing:

Part Details

  • High Power Gain: 19dB (MAX2686L)
  • Low Noise Figure: 0.88dB (MAX2686L)
  • Integrated 50Ω Output Matching Circuit
  • Low Supply Current: 1.8mA (MAX2693L)
  • Wide Supply Voltage Range: 1.6V to 4.2V
  • Low Bill of Materials: One Inductor, Two Capacitors
  • Small Footprint: 0.86mm x 0.86mm
  • 0.4mm Pitch WLP
MAX2693L
GPS/GNSS Low-Noise Amplifiers with Integrated LDO

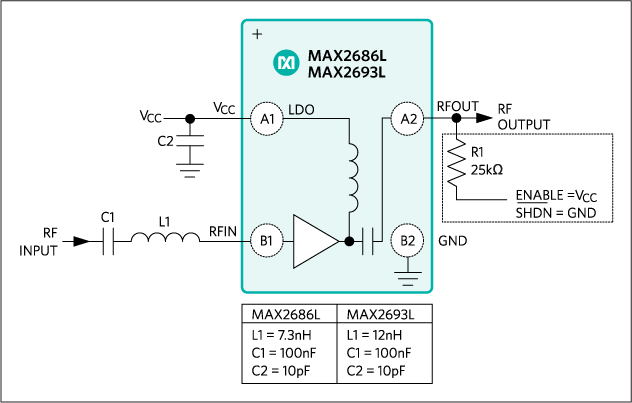

MAX2686L, MAX2693L: Typical Operating Circuit
