MAX2669

GPS/GNSS Ultra-Low-Noise-Figure LNAs

Industry's Lowest Noise Figure GPS LNAs Deliver High Gain and High Linearity in a Tiny Package

Data Sheet (Rev. 1)

Viewing:

Part Details

19dB High-Power Gain (MAX2667)
Ultra-Low Noise Figure: 0.65dB
Integrated 50Ω Output Matching Circuit
Low 4.1mA Supply Current (MAX2667)
Wide 1.6V to 3.3V Supply Voltage Range

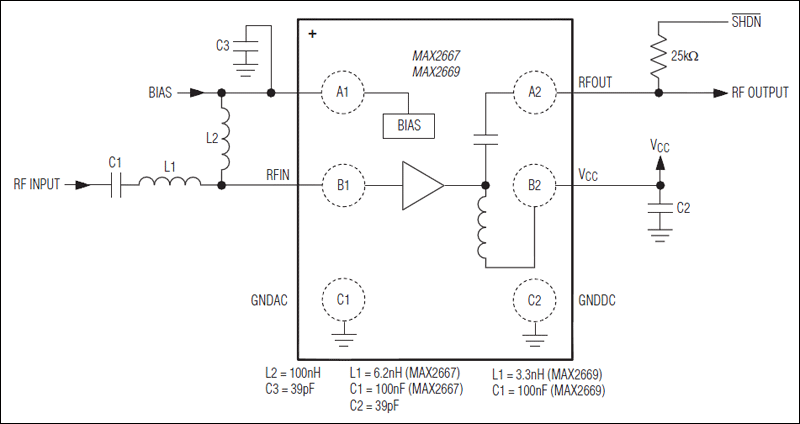

Low Bill of Materials: Two Inductors, Three Capacitors, and One Resistor
Small Footprint: 0.86mm x 1.26mm
Thin Profile: 0.65mm
0.4mm-Pitch Wafer-Level Package (WLP)

Documentation

Data Sheet 1

MAX2667-MAX2669: GPS/GNSS Ultra-Low-Noise-Figure LNAs Data Sheet (Rev.1) 10/16/2012

Technical Articles 1

PCBs Layout Guidelines for RF & Mixed-Signal 09/14/2011

This is the most up-to-date revision of the Data Sheet.
