MAX17332

• ModelGauge m5 Algorithm
• Charges, Monitors, and Protects a 1S Battery
• Full Protection Solution On-Board for Evaluation
• Battery Voltage (V_BATT) Range of +2.16V to +4.9V with Default Hardware
• Input Voltage up to 5.7V
• Default Current Range -5A (Discharge) to +2.56A (Charge) with 10mΩ Sense Resistor (Higher Currents can be Supported by Changing to a Smaller Sense Resistor)
• Two Thermistor Measurements
• On-Board I²C Communication Interface with Built-In MAXUSB Interface
• Windows 7 or Newer Compatible Software
• Proven PCB Layout
• Fully Assembled and Tested

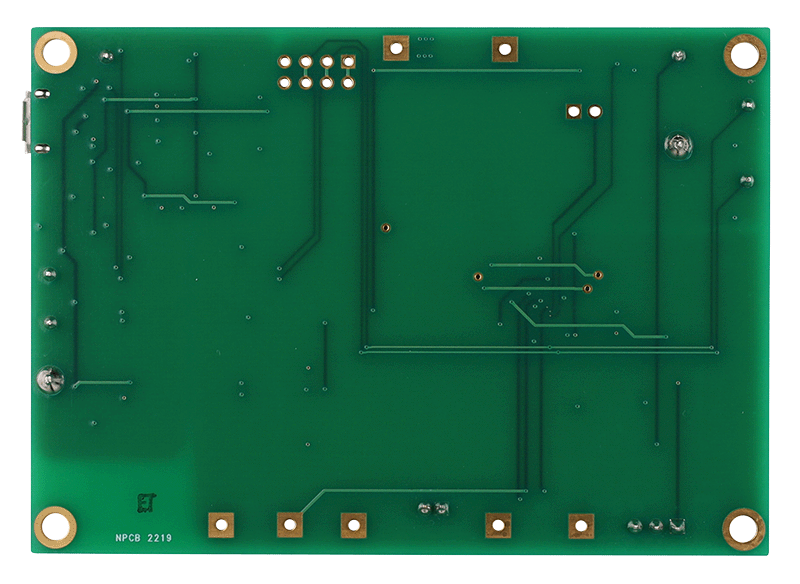

The MAX17332 evaluation kit (EV kit) is a fully assembled and tested surface-mount PCB that evaluates the standalone charger, fuel gauge IC with protector and optional SHA-256 authentication for 1 cell lithium-ion/polymer batteries.

The MAX17332 EV kits include the IC evaluation board with integrated I²C interface and USB micro-B cable. Windows^® based graphical user interface (GUI) software is available for use with the EV kit and can be downloaded from MAX17332 product page under the Design Resources tab. Windows 7 or newer Windows operating system is required to use with the EV kit GUI software.
