LTC6087

RECOMMENDED FOR NEW DESIGNS

Dual 14MHz, Rail-to-Rail CMOS Amplifiers

Part Models
8
1ku List Price
Starting From $1.14
Viewing:

Part Details

  • Low Offset Voltage: 750μV Maximum
  • Low Offset Drift: 5μV/°C Maximum
  • Input Bias Current:
    • 1pA (Typical at 25°C)
    • 15pA (Typical at 85°C)
  • Rail-to-Rail Inputs and Outputs
  • Gain Bandwidth Product: 14MHz
  • CMRR: 70dB Minimum
  • PSRR: 93dB Minimum
  • Input Noise Voltage Density: 12nV/√Hz
  • Supply Current: 1.05mA per Amp
  • Shutdown Current: 2.3μA per Amp
  • 2.7V to 5.5V Operation Voltage
  • Available in 8-Lead MSOP and 10-Lead DFN Packages (LTC6087), 16-Lead SSOP and DFN Packages (LTC6088)
LTC6087
Dual 14MHz, Rail-to-Rail CMOS Amplifiers

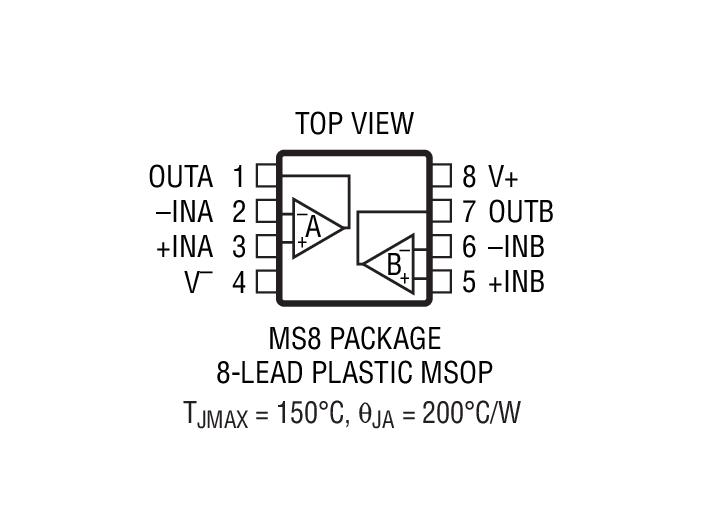

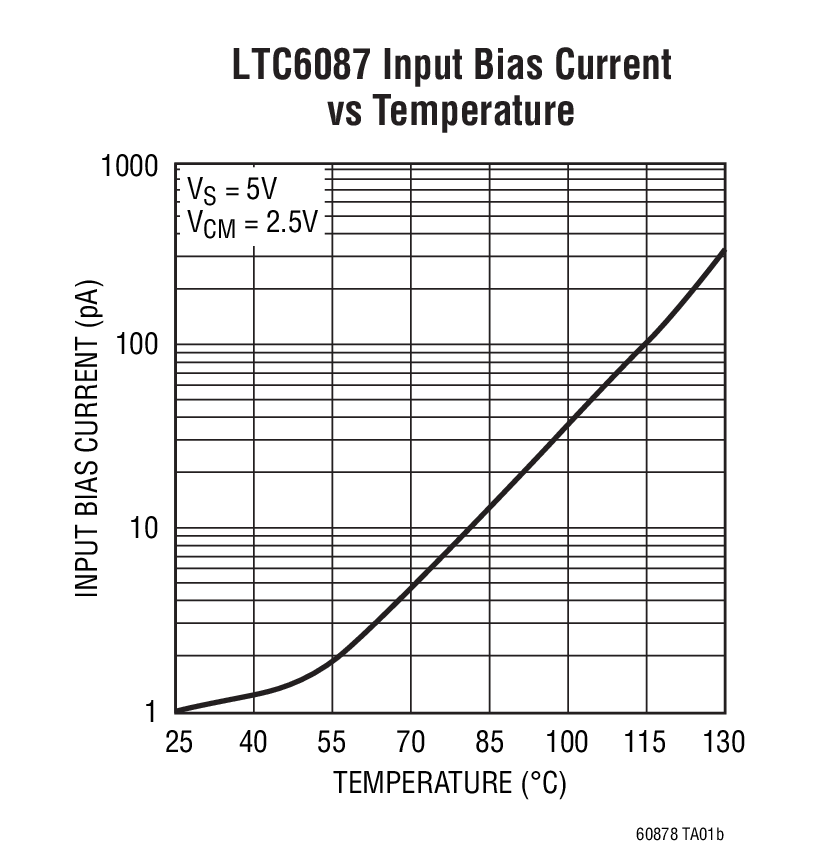

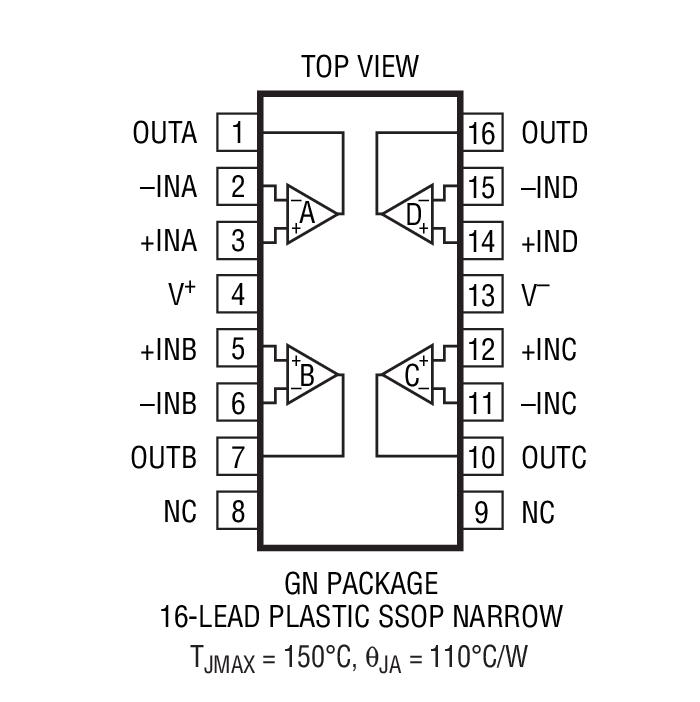

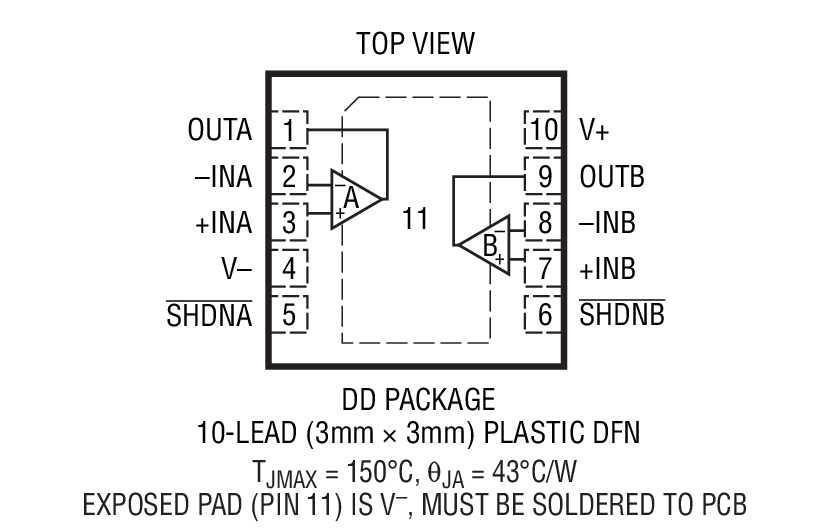

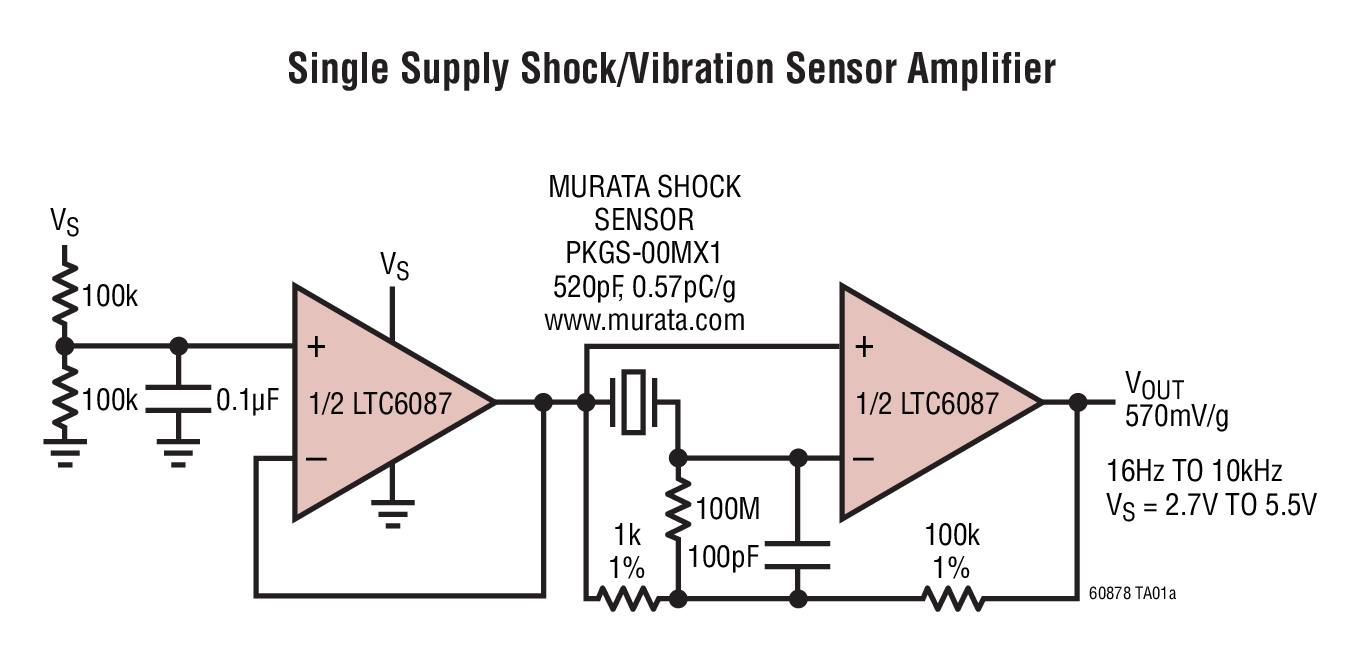

Single Supply Shock/Vibration Sensor Amplifier LTC6087 Input Bias Current vs Temperature Product Package 1 Product Package 2 Product Package 3 Product Package 4
