LT6550

PRODUCTION

3.3V Triple and Quad Video Amplifiers

Part Models: 4
1ku List Price: Starting From $2.34

Viewing:

Part Details

Single Supply Operation from 3V to 12.6V

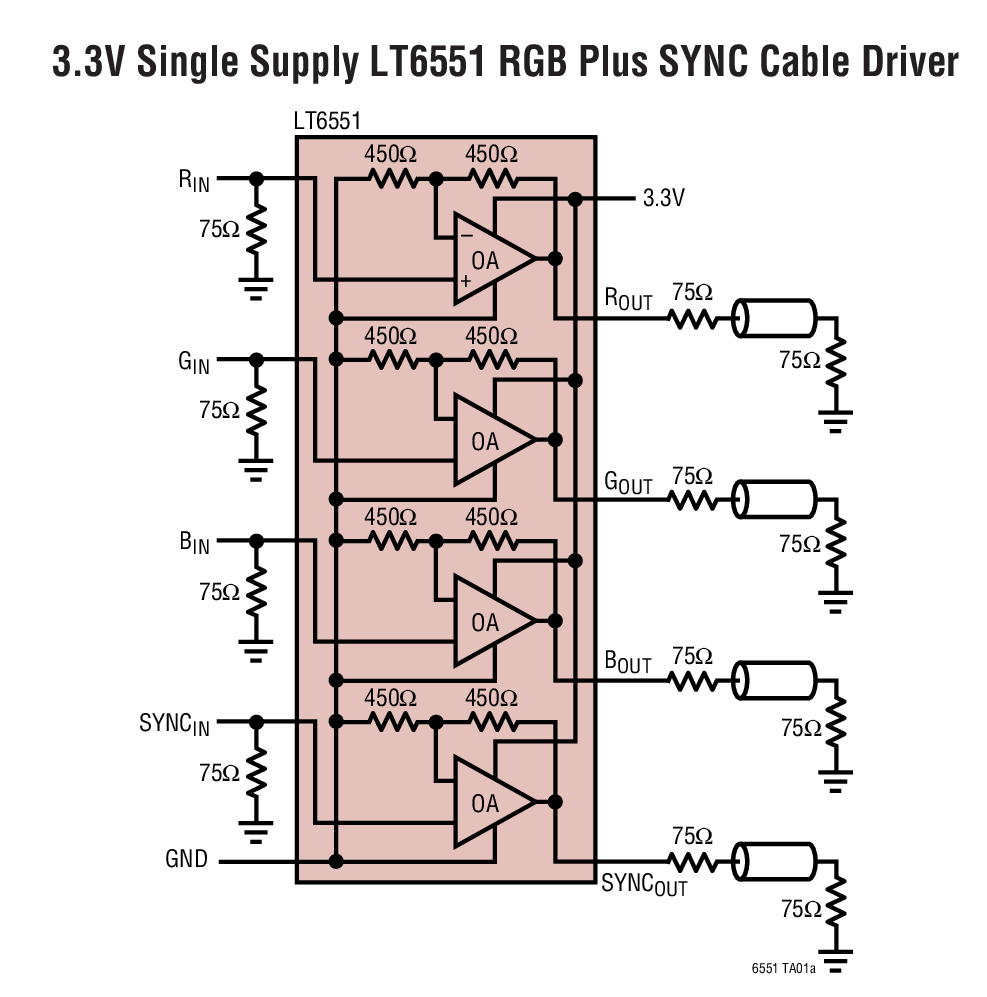

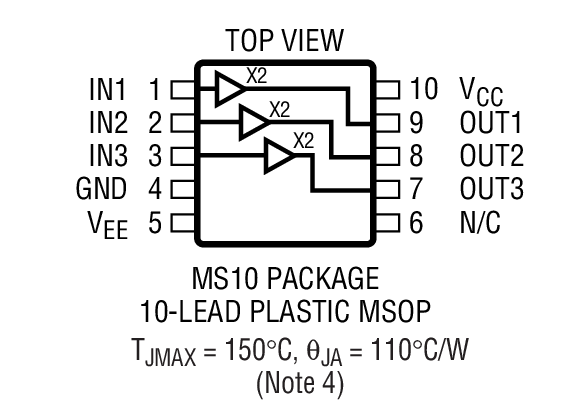

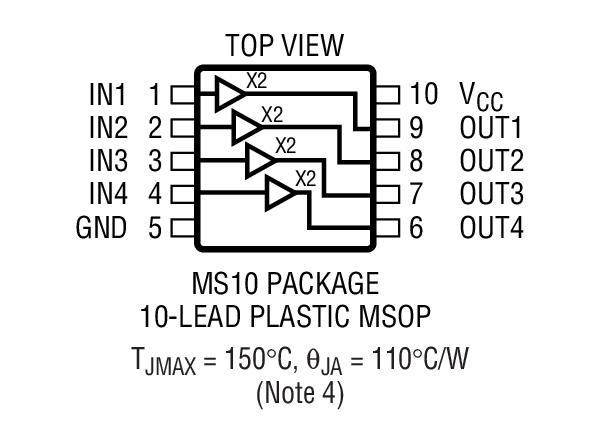

Small (3mm x 5mm) MSOP 10-Lead Package
Internal Resistors for a Gain of Two
340V/µs Slew Rate
110MHz –3dB Bandwidth

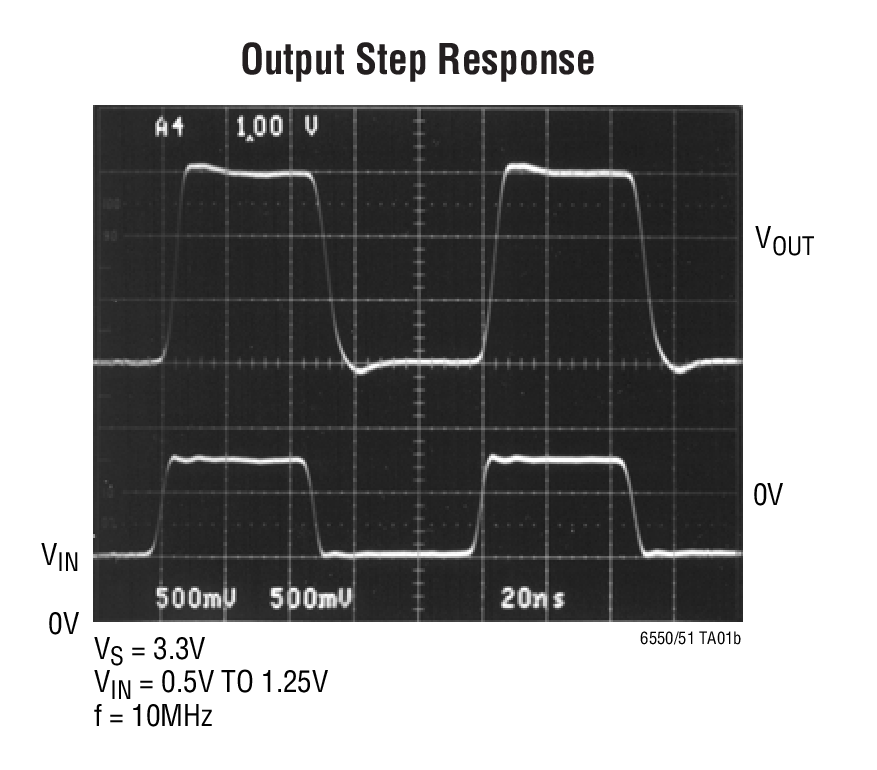

30MHz Flat to 0.25dB
3% Settling Time: 20ns
Input Common Mode Range Includes Ground
Rail-to-Rail Output
High Output Drive: 60mA
Operating Temperature Range: –40°C to 85°C
24-Bit RGB

Part Models: 4
1ku List Price: Starting From $2.34

Documentation

Reliability Data 1

R378 Reliability Data 03/23/2018

Technical Articles 2

Video Signal Distribution Using Low Supply-Voltage Amplifiers 12/01/2003

Triple and Quad RGB Amplifiers Deliver Full Performance on 3.3V 03/01/2003
