LT6211

PRODUCTION

Dual Programmable Supply Current, R-R Output, Current Feedback Amplifiers

Data Sheet Product Selection Table

Part Models: 8
1ku List Price: Starting From $2.54

Viewing:

Part Details

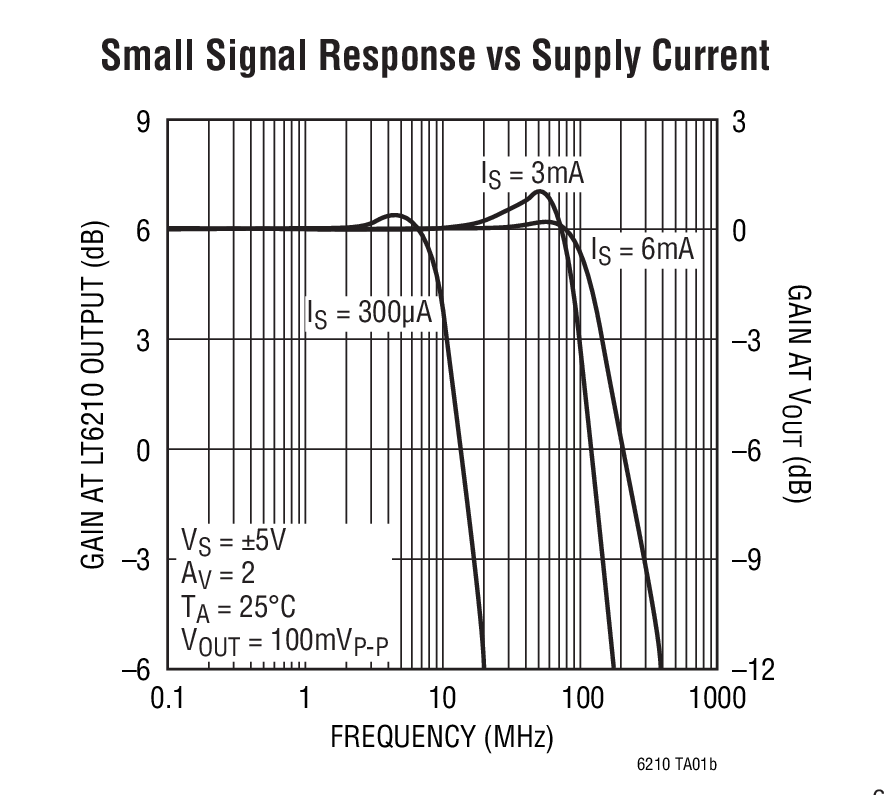

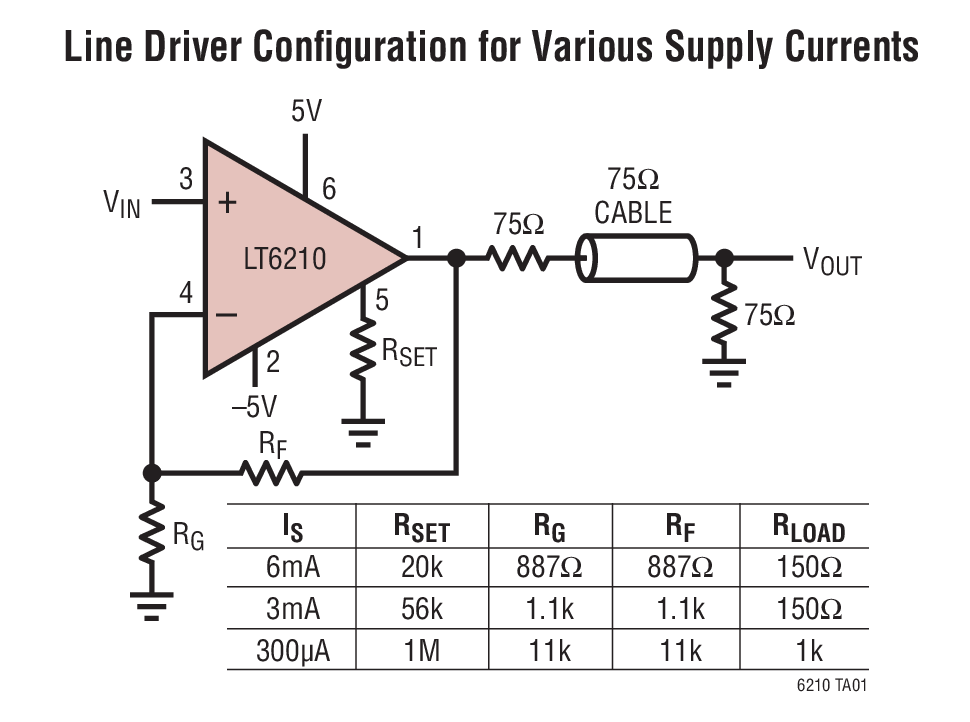

Programmable Supply Current and Bandwidth:

10MHz at 300µA per Amplifier up to 200MHz at 6mA per Amplifier

Rail-to-Rail Output:

0.05V to 2.85V on 3V Single Supply

High Slew Rate: 700V/µs
High Output Drive:

±75mA Minimum Output Current

C-Load^™ Op Amp Drives All Capacitive Load
Low Distortion:

-70dB HD2 at 1MHz 2V_P-P
-75dB HD3 at 1MHz 2V_P-P

Fast Settling:

20ns 0.1% Settling for 2V Step

Excellent Video Performance Into 150Ω Load:

Differential Gain of 0.20%
Differential Phase of 0.10°

Wide Supply Range:

3V to 12V Single Supply
±1.5V to ±6V Dual Supplies

Small Size:

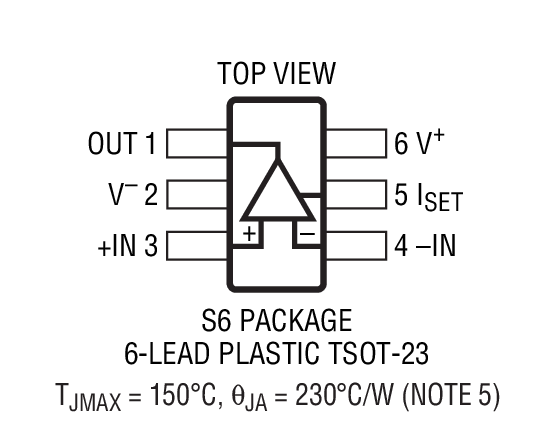

Low Profile (1mm) 6-Lead SOT-23 (ThinSOT^™)

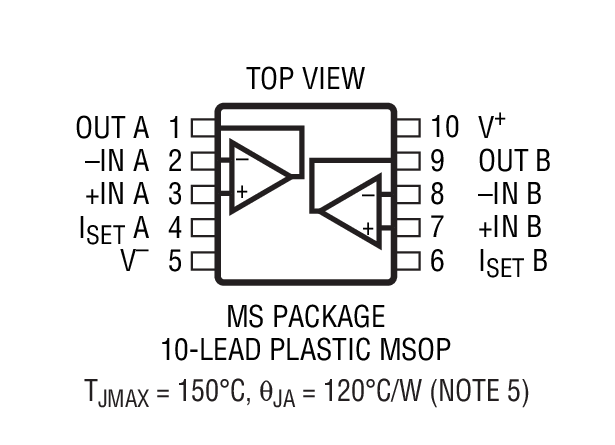

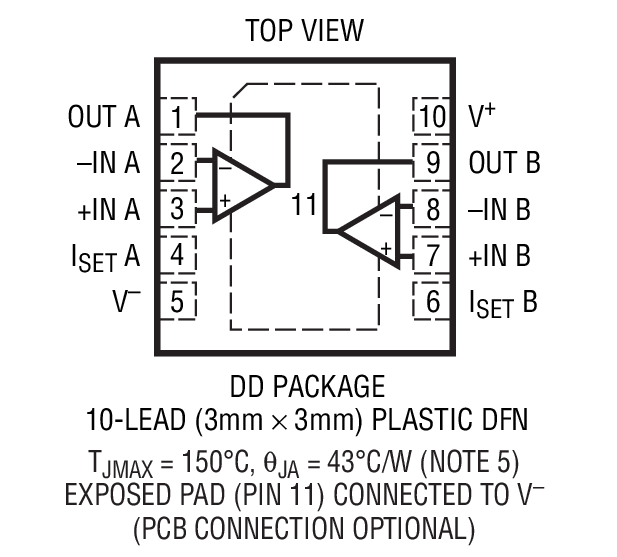

3mm x 3mm x 0.8mm DFN and 10-Lead MSOP Packages

Part Models: 8
1ku List Price: Starting From $2.54

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT6211CDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6211CDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6211CMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6211CMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6211IDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6211IDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6211IMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6211IMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0130_Form Material_Report
LT6211CMS#PBF	PRODUCTION
LT6211CMS#TRPBF	PRODUCTION
LT6211IMS#PBF	PRODUCTION
LT6211IMS#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
