LT1813

PRODUCTION

Dual 3mA, 100MHz, 750V/µs Operational Amplifier

Part Models: 20
1ku List Price: Starting From $1.29

Viewing:

Part Details

100MHz Gain Bandwidth Product
750V/µs Slew Rate
3.6mA Maximum Supply Current per Amplifier
Tiny 3mm × 3mm × 0.8mm DFN Package
8nV/√Hz Input Noise Voltage
Unity-Gain Stable
1.5mV Maximum Input Offset Voltage
4µA Maximum Input Bias Current
400nA Maximum Input Offset Current
40mA Minimum Output Current, V_OUT = ±3V
±3.5V Minimum Input CMR, V_S = ±5V
30ns Settling Time to 0.1%, 5V Step
Specified at ±5V, Single 5V Supplies
Operating Temperature Range: –40°C to 85°C

Part Models: 20
1ku List Price: Starting From $1.29

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

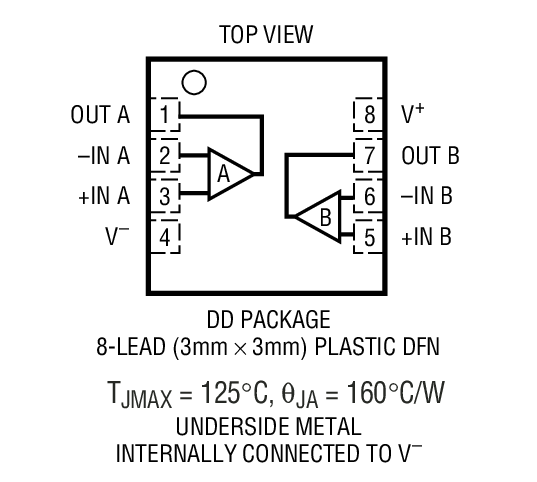

LT1813CDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1813CDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

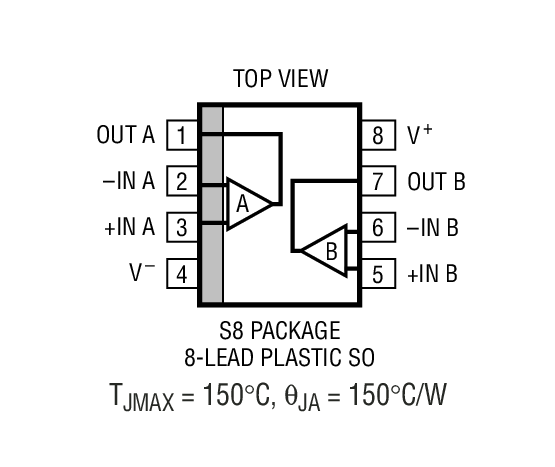

LT1813CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
