LT1784

PRODUCTION

2.5MHz, Over-The-Top Low Power, Rail-to-Rail Input and Output Op Amp in SOT-23

Part Models: 8
1ku List Price: Starting From $1.09

Viewing:

Part Details

Operates with Inputs Above V⁺
Rail-to-Rail Input and Output
Gain Bandwidth Product: 2.5MHz
Slew Rate: 2.1V/µs
Low Input Offset Voltage: 3.5mV Max
High Voltage Gain: 1000V/mV
Single Supply Input Range: 0V to 18V
Specified on 3V, 5V and ±5V Supplies
Reverse Battery Protection to 18V
Low Power: 750µA Supply Current Max

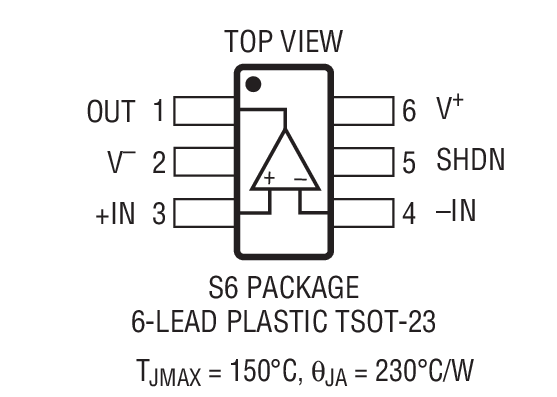

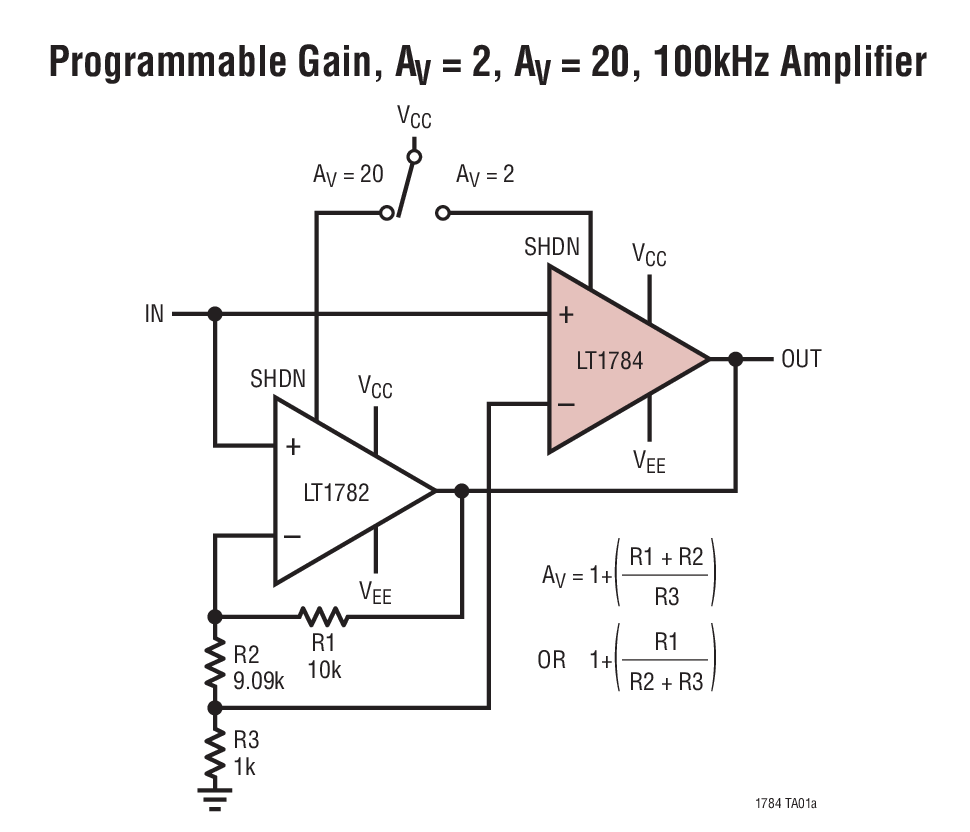

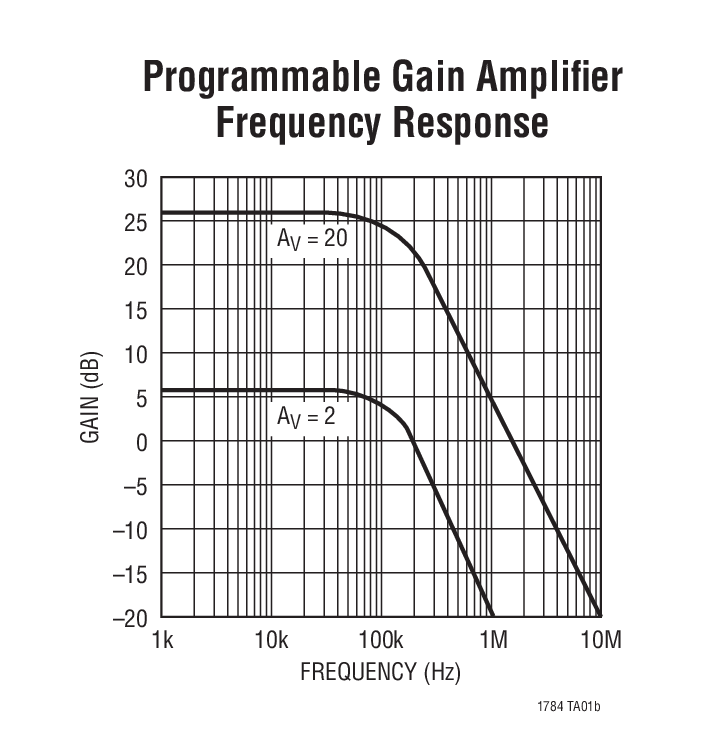

Output Shutdown on 6-Lead Version
High Output Current: 15mA Min
Operating Temperature Range: –40°C to 85°C
Low Profile (1mm) ThinSOT^™ Package

Part Models: 8
1ku List Price: Starting From $1.09

Documentation

Reliability Data 1

R417 Reliability Data 03/26/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

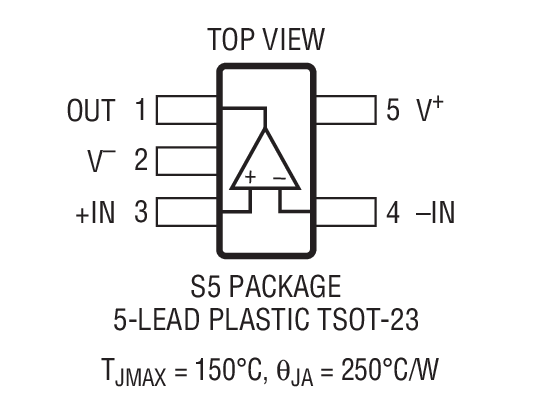

LT1784CS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1784CS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1784CS6#TRMPBF	6-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1784CS6#TRPBF	6-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1784IS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1784IS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1784IS6#TRMPBF	6-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1784IS6#TRPBF	6-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LT1784

Analog Filter Wizard

Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

Open Tool

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
