LT1498

PRODUCTION

10MHz, 6V/μs, Dual Rail-to-Rail Input and Output Precision C-Load Op Amps

Part Models
10
1ku List Price
Starting From $3.38

Part Details

  • Rail-to-Rail Input and Output
  • 475μV Max VOS from V+ to V
  • Gain-Bandwidth Product: 10MHz
  • Slew Rate: 6V/μs
  • Low Supply Current per Amplifier: 1.7mA
  • Input Offset Current: 65nA Max
  • Input Bias Current: 650nA Max
  • Open-Loop Gain: 1000V/mV Min
  • Low Input Noise Voltage: 12nV/√Hz Typ
  • Wide Supply Range: 2.2V to ±15V
  • Large Output Drive Current: 30mA
  • Stable for Capacitive Loads Up to 10,000pF

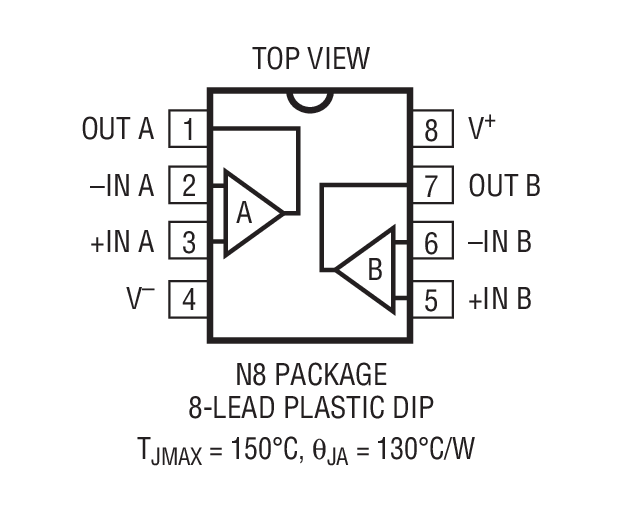

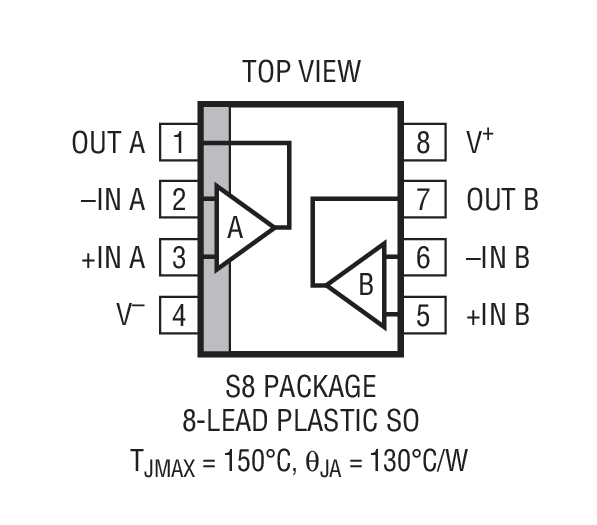

  • Dual in 8-Pin PDIP and SO Package

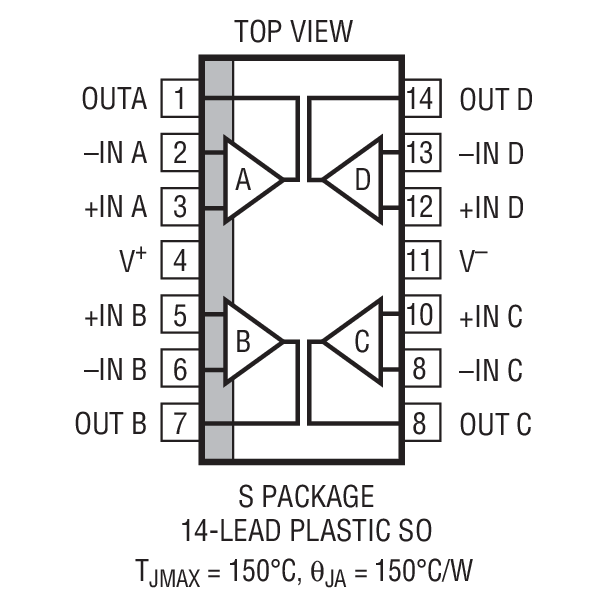

  • Quad in Narrow 14-Pin SO
LT1498
10MHz, 6V/μs, Dual Rail-to-Rail Input and Output Precision C-Load Op Amps
Ask a Question

Documentation

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1


Models for the following parts are available in LTspice:

  • LT1498
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
