LT1465

NOT RECOMMENDED FOR NEW DESIGNS

Dual/Quad Micropower, 1MHz C-Load Picoampere Bias Current JFET Input Op Amps

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: Starting From $5.82

Viewing:

Part Details

Input Bias Current:
- 2pA Max (LT1464A)
- 20pA Max (LT1464, LT1465)
Supply Current per Amplifier: 200µA Max
Gain Bandwidth Product: 1MHz Typ
Slew Rate: 0.9V/µs Typ
Input Common Mode Range Includes Positive Rail
Unity-Gain Stable for C-Load^™Up to 10nF
Open-Loop Gain: 1 Million Typ
Guaranteed Specs with ±5V, ±15V Supplies
Guaranteed Matching Specifications

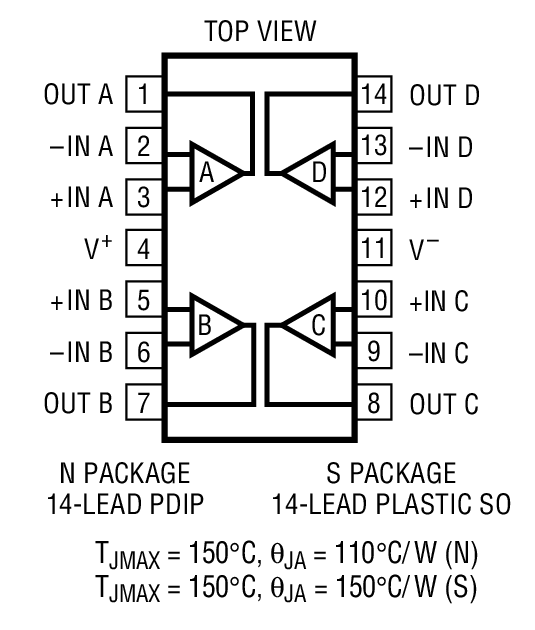

Standard Pinout: SO-8, SO-14 Package

Part Models: 2
1ku List Price: Starting From $5.82

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1465CS#PBF	14-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1465CS#TRPBF	14-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 12, 2022 - 22_0251 Epoxy Change from Henkel 8290 to 8290A for 14-Lead SOIC Package
		PCN22_0251_Form Material_Report Qualification Results Summary
LT1465CS#PBF	PRODUCTION
LT1465CS#TRPBF	PRODUCTION
Aug 6, 2022 - 22_0173 Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]
		PCN22_0173_Form Material_Report Delta Qualification Matrix
LT1465CS#PBF	PRODUCTION
LT1465CS#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

LT1465 - Operational Amplifiers (Op Amps)

Models for the following parts are available in LTspice:

LT1465

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
