LT1256

PRODUCTION

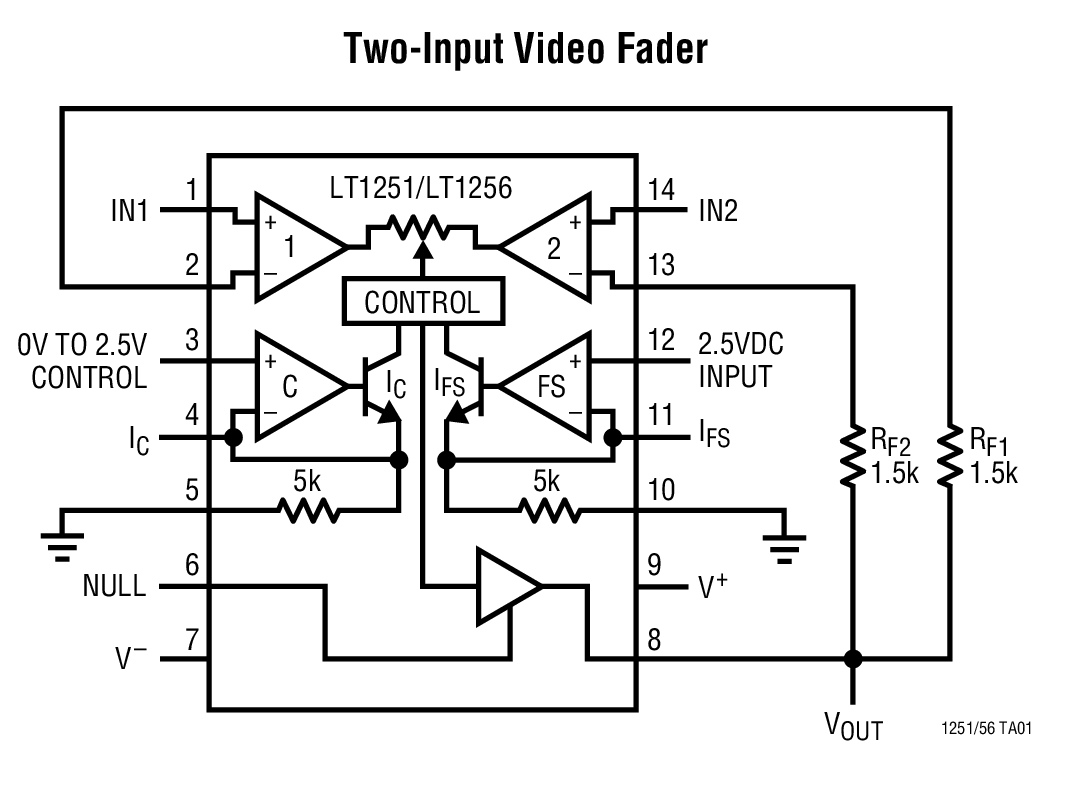

40MHz Video Fader and DC Gain Controlled Amplifier

Data Sheet

Part Models: 3
1ku List Price: Starting From $8.64

Viewing:

Part Details

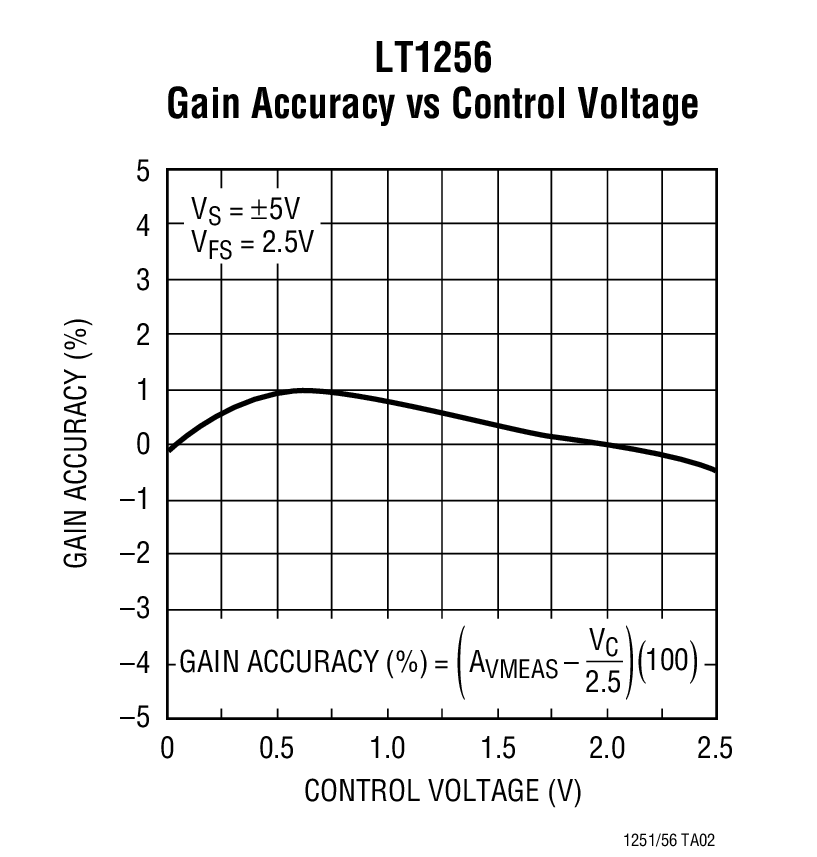

Accurate Linear Gain Control: ±1% Typ, ±3% Max
Constant Gain with Temperature
Wide Bandwidth: 40MHz
High Slew Rate: 300V/µs
Fast Control Path: 10MHz
Low Control Feedthrough: 2.5mV
High Output Current: 40mA
Low Output Noise
- 45nV/√Hz at A_V = 1
- 270nV/√Hz at A_V = 100
Low Distortion: 0.01%
Wide Supply Range: ±2.5V to ±15V
Low Supply Current: 13mA
Low Differential Gain and Phase: 0.02%, 0.02°

Part Models: 3
1ku List Price: Starting From $8.64

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1256CN#PBF	14-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1256CS#PBF	14-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1256CS#TRPBF	14-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1256CN#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1256CN#PBF	PRODUCTION
Oct 12, 2022 - 22_0251 Epoxy Change from Henkel 8290 to 8290A for 14-Lead SOIC Package
		PCN22_0251_Form Material_Report Qualification Results Summary
LT1256CS#PBF	PRODUCTION
LT1256CS#TRPBF	PRODUCTION
Aug 6, 2022 - 22_0173 Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]
		PCN22_0173_Form Material_Report Delta Qualification Matrix
LT1256CS#PBF	PRODUCTION
LT1256CS#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
