LT1229

PRODUCTION

Dual 100MHz Current Feedback Amplifiers

Data Sheet Product Selection Table

Part Models: 3
1ku List Price: Starting From $4.01

Viewing:

Part Details

100MHz Bandwidth
1000V/µs Slew Rate
Low Cost
30mA Output Drive Current
0.04% Differential Gain
0.1° Differential Phase
High Input Impedance: 25MΩ, 3pF
Wide Supply Range: ±2V to ±15V
Low Supply Current: 6mA Per Amplifier
Inputs Common Mode to Within 1.5V of Supplies
Outputs Swing Within 0.8V of Supplies

Part Models: 3
1ku List Price: Starting From $4.01

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

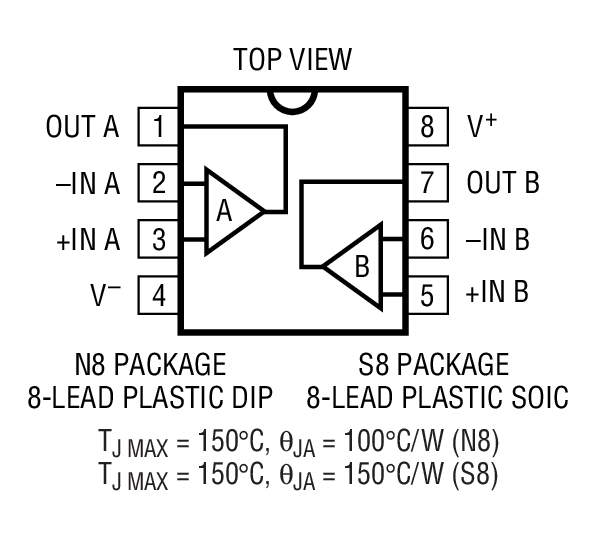

LT1229CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1229CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1229CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1229CN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1229CN8#PBF	PRODUCTION
Jun 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1229CS8#PBF	PRODUCTION
LT1229CS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

LT1229 - Operational Amplifiers (Op Amps)

Models for the following parts are available in LTspice:

LT1229

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
