LT1206

PRODUCTION

250mA/60MHz Current Feedback Amplifier

Part Models
6
1ku List Price
Starting From $5.02

Part Details

  • 250mA Minimum Output Drive Current
  • 60MHz Bandwidth, AV = 2, RL = 100Ω
  • 900V/µs Slew Rate, AV = 2, RL = 50Ω
  • 0.02% Differential Gain, AV = 2, RL = 30Ω
  • 0.17° Differential Phase, AV = 2, RL = 30Ω
  • High Input Impedance, 10MΩ
  • Wide Supply Range, ±5V to ±15V

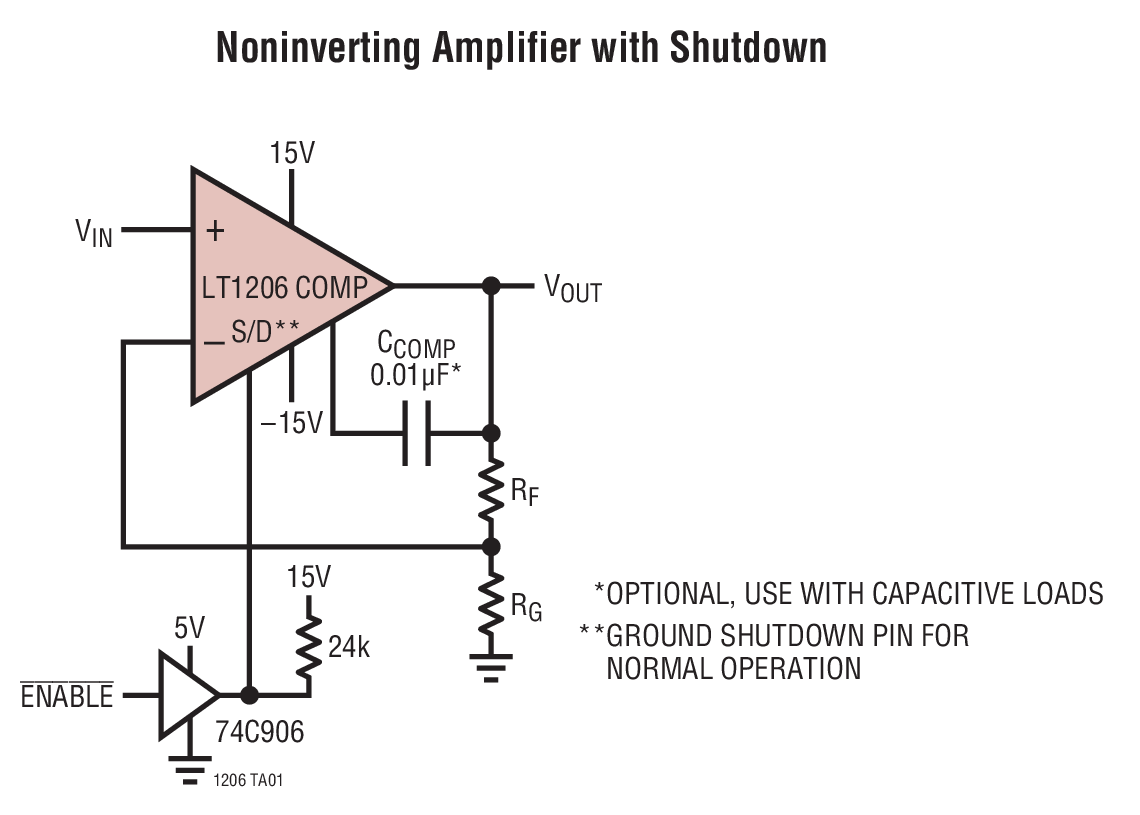

  • Shutdown Mode: IS <200µA
  • Adjustable Supply Current

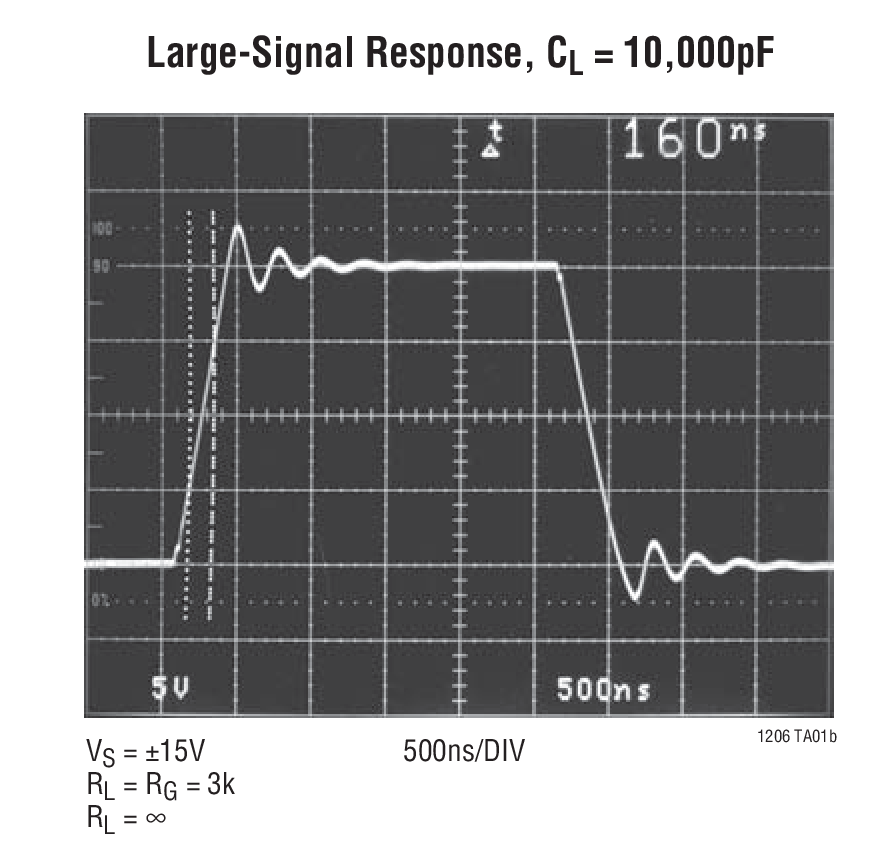

  • Stable with CL = 10,000pF
LT1206
250mA/60MHz Current Feedback Amplifier
