LT1190

LAST TIME BUY

Ultrahigh Speed Operational Amplifier

Data Sheet
Viewing:
  • Part Details
  • Documentation
  • Software Resources
  • Tools & Simulations
  • Evaluation Kits
  • Latest Discussions
    •

    Part Details

    • Gain Bandwidth Product, AV = 1: 50MHz
    • Slew Rate: 450V/µs
    • Low Cost
    • Output Current: ±50mA
    • Settling Time: 140ns to 0.1%
    • Differential Gain Error: 0.1%, (RL = 1k)
    • Differential Phase Error: 0.06°, (RL = 1k)
    • High Open-Loop Gain: 10V/mV Min
    • Single Supply +5V Operation
    • Output Shutdown
    LT1190
    Ultrahigh Speed Operational Amplifier
    Ask a Question

    Documentation

    Data Sheet 1

    Reliability Data 1

    User Guide 1

    Application Note 3

    Design Note 5

    Data Sheet

    This is the most up-to-date revision of the Data Sheet.

    Learn More

    Software Resources

    Can't find the software or driver you need?

    Request a Driver/Software

    Tools & Simulations

    LTspice 1

    Models for the following parts are available in LTspice:

    • LT1190
    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    Evaluation Kits

    eval board

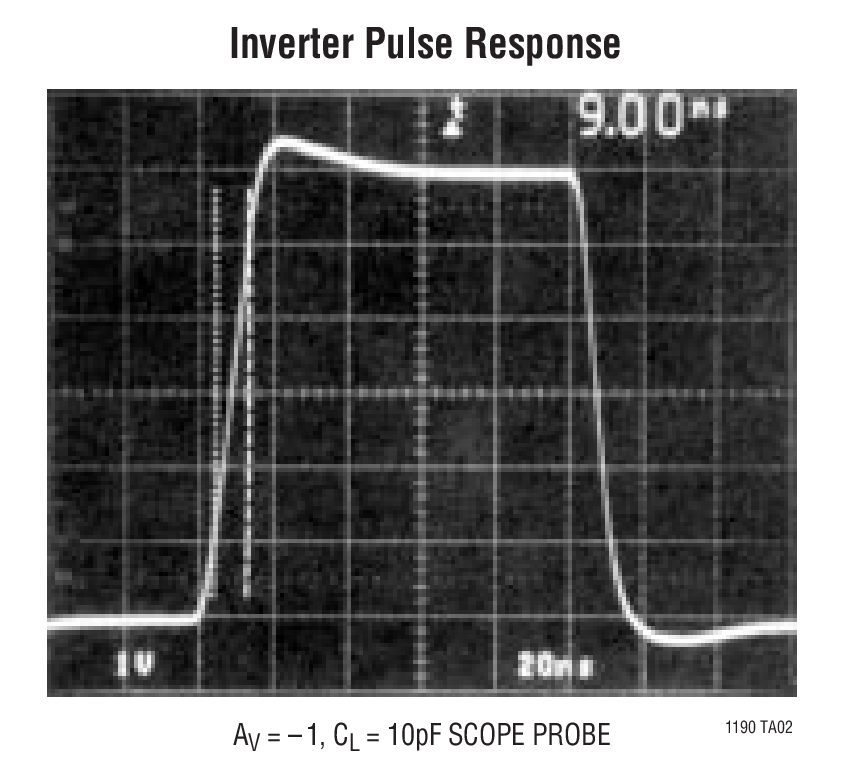

    schematic 1

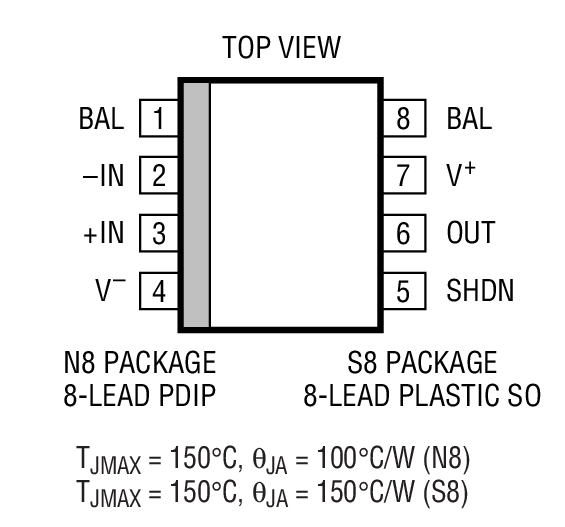

    schematic 2

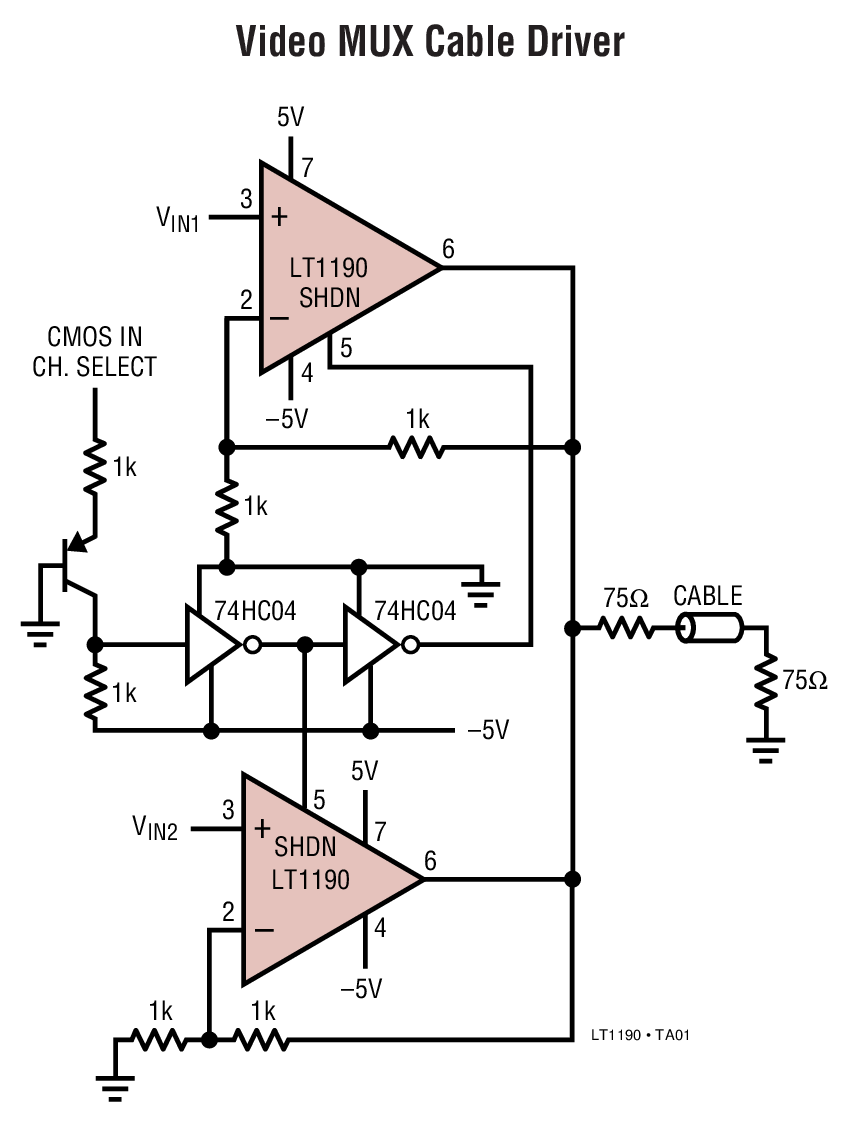

    schematic 3
    schematic 4
    schematic 5
    DC417B

    DIP8, MS8, S8, SOT23-6 | Multi-Footprint General Purpose Board for Single Op. Amp

    Buy Now View Details

    Product Details

    DC417B: Demo Board



    DC417B
    DIP8, MS8, S8, SOT23-6 | Multi-Footprint General Purpose Board for Single Op. Amp
