LT1022

PRODUCTION

High Speed, Precision JFET Input Operational Amplifier

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: Starting From $3.00

Viewing:

Part Details

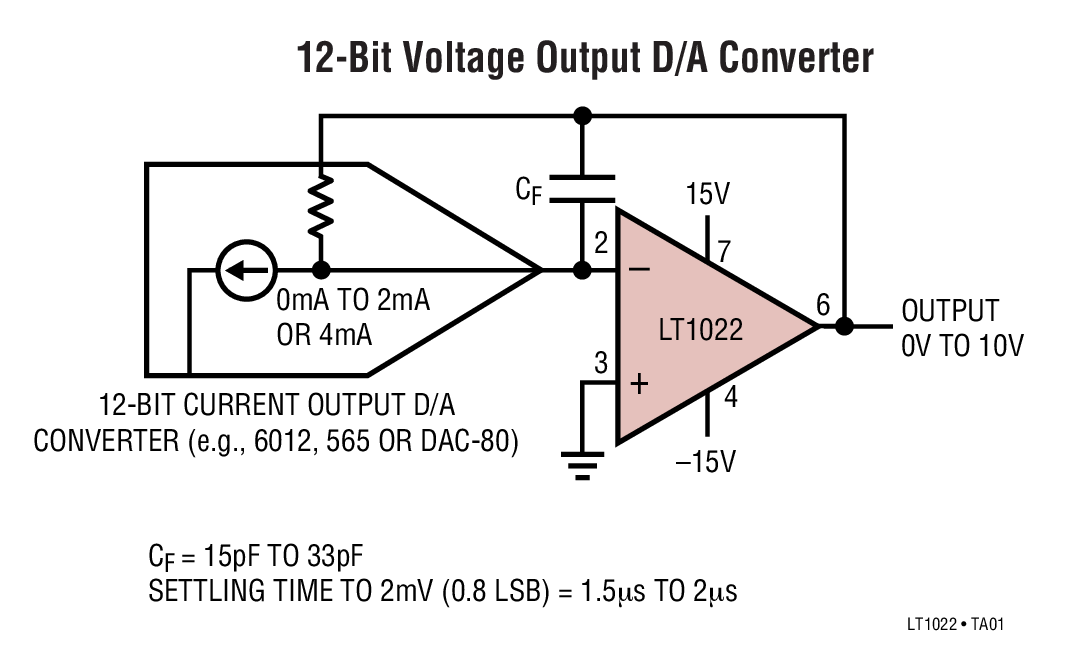

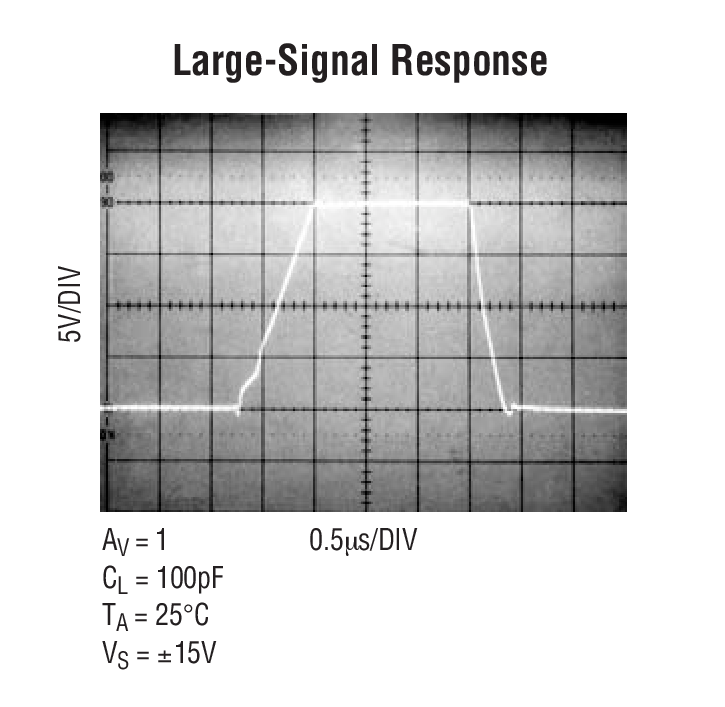

Guaranteed Slew Rate: 23V/µs Min.
Guaranteed Offset Voltage: 250µV Max

-55°C to 125°C: 750µV Max.

Guaranteed Drift: 5µV/°C Max.
Guaranteed Bias Current:

70°C 180pA Max.
125°C 4nA Max.

Gain-Bandwidth Product: 8.5MHz Typ
Settling Time to 0.05% (10V Step): 0.9µs Typ

Part Models: 2
1ku List Price: Starting From $3.00

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1022AMH/883	8-Lead TO-5 (0.2 Inch PCD)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

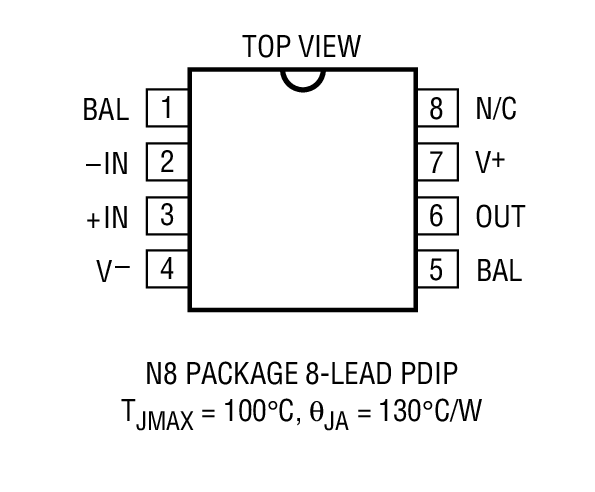

LT1022CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 4, 2022 - 22_0025 Implement Laser Top Mark for TO Metal Can Packages Assembled in Team Pacific Corporation.
		PCN22_0025_Form Material_Report Detailed Parts List
LT1022AMH/883		PCN22_0025_Form Material_Report Detailed Parts List
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1022CN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1022CN8#PBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LT1022
LT1022A

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
