LT1017

PRODUCTION

Micropower Dual Comparator

Part Models: 8
1ku List Price: Starting From $2.68

Viewing:

Part Details

Maximum Offset Voltage: 1mV
Maximum Bias Current: 15nA
Typical Output Drive: 70mA
Operates from 1.1V to 40V
Internal Pull-Up Current
Output Can Drive Loads Above V⁺

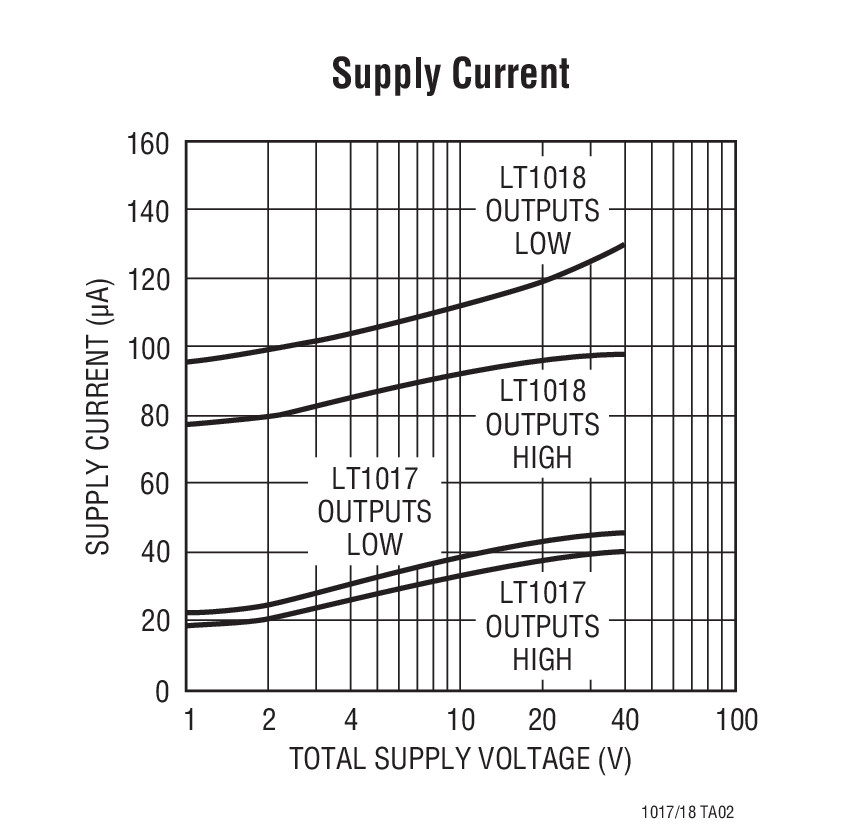

30µA Supply Current (LT1017)
110µA Supply Current (LT1018)

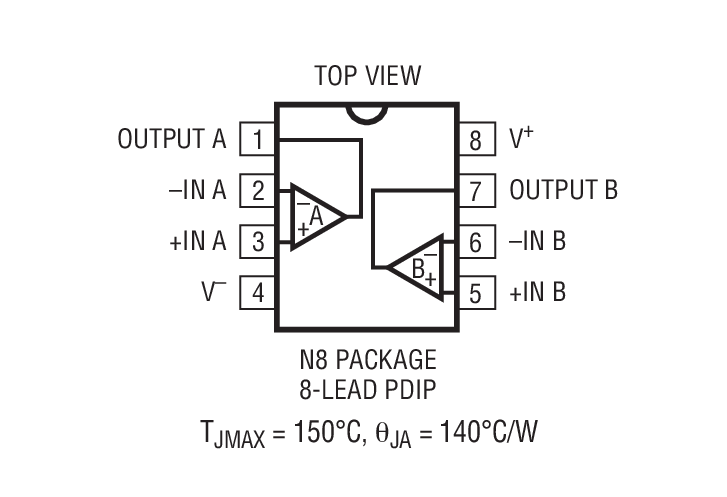

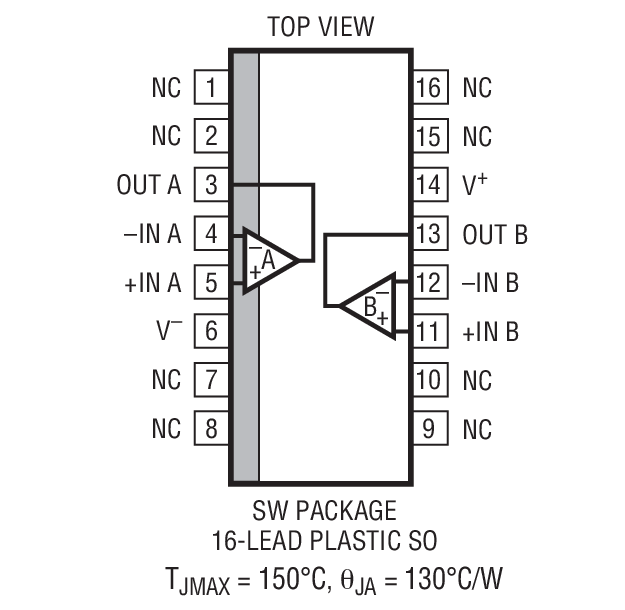

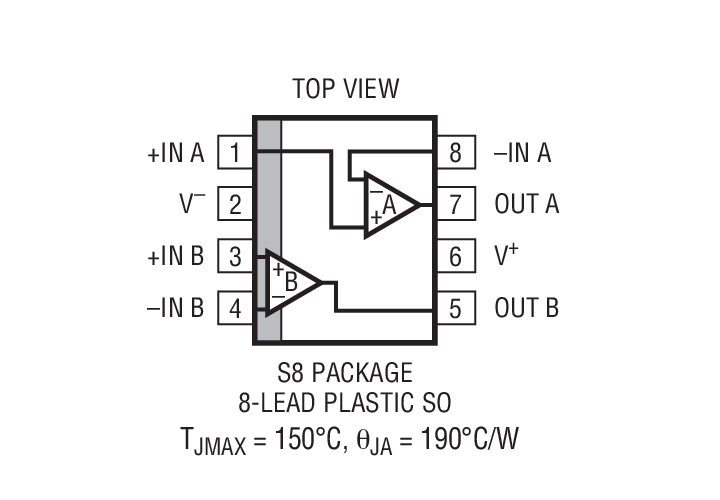

Available in 8-Lead PDIP, 8-Lead Plastic S0, and 16-Lead Plastic SO Packages

Part Models: 8
1ku List Price: Starting From $2.68

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1017CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1017CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1017CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1017CSW#PBF	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1017CSW#TRPBF	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1017IN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1017IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1017IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1017CN8#PBF	PRODUCTION
LT1017IN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1017CN8#PBF	PRODUCTION
LT1017IN8#PBF	PRODUCTION
Jun 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1017CS8#PBF	PRODUCTION
LT1017CS8#TRPBF	PRODUCTION
LT1017IS8#PBF	PRODUCTION
LT1017IS8#TRPBF	PRODUCTION
Aug 10, 2022 - 22_0176 Laser Top Mark Conversion for SOIC_W Packages Assembled in ADPG [PNG] and UTL
		PCN22_0176_Form Material_Report Delta Qualification Matrix
LT1017CSW#PBF	PRODUCTION
LT1017CSW#TRPBF	PRODUCTION

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LT1017

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Latest Discussions

No discussions on LT1017 yet. Have something to say?

Start a Discussion on EngineerZone®
