LT1011
LT1011A

PRODUCTION

Voltage Comparator

Data Sheet

Part Models: 8
1ku List Price: Starting From $1.74

Viewing:

Part Details

Pin-Compatible with LM111 Series Devices
Guaranteed Max 0.5mV Input Offset Voltage
Guaranteed Max 25nA Input Bias Current
Guaranteed Max 3nA Input Offset Current

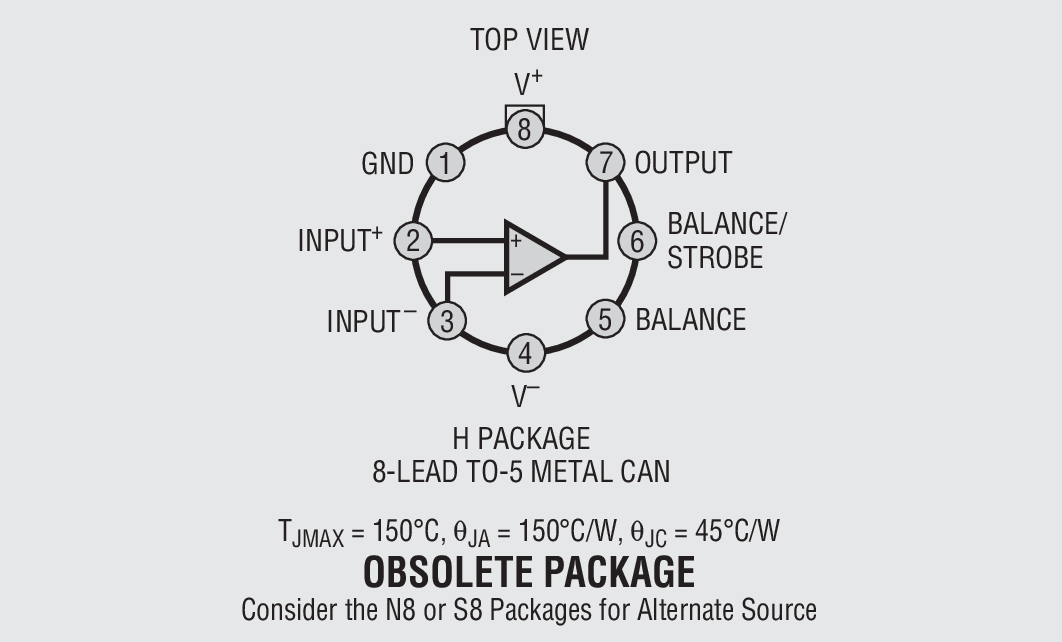

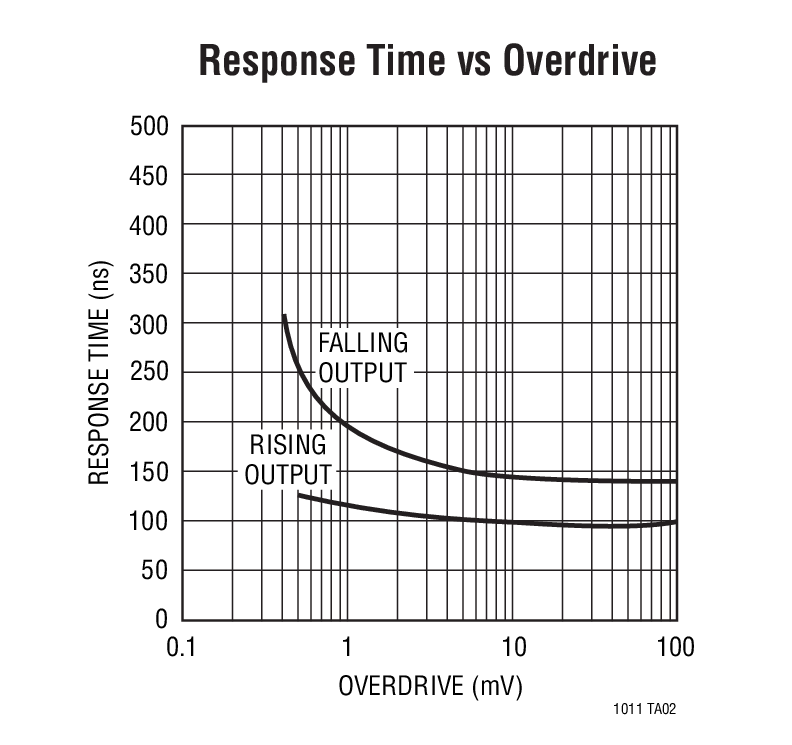

Guaranteed Max 250ns Response Time
Guaranteed Min 200,000 Voltage Gain
50mA Output Current Source or Sink
±30V Differential Input Voltage
Fully Specified for Single 5V Operation

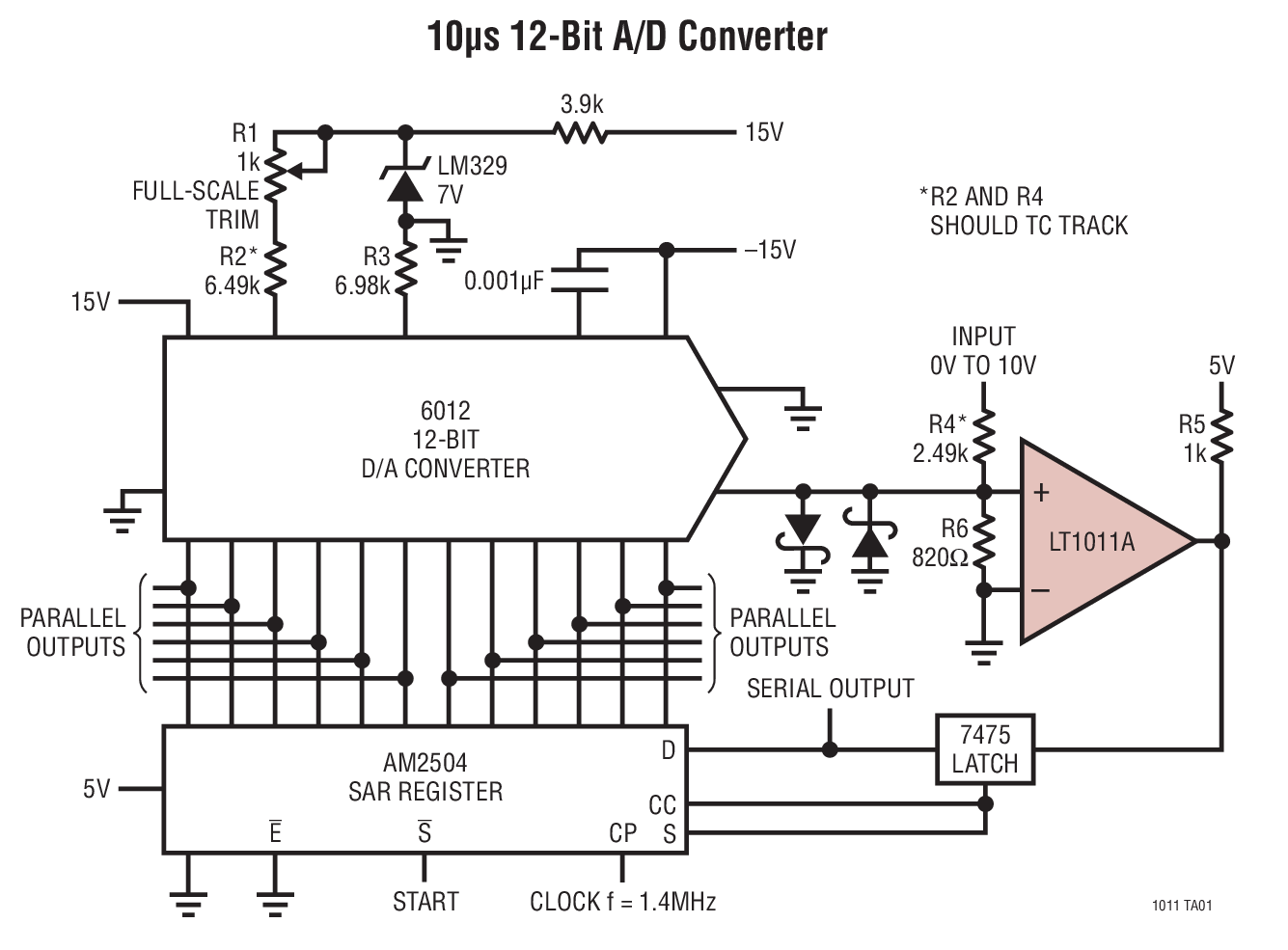

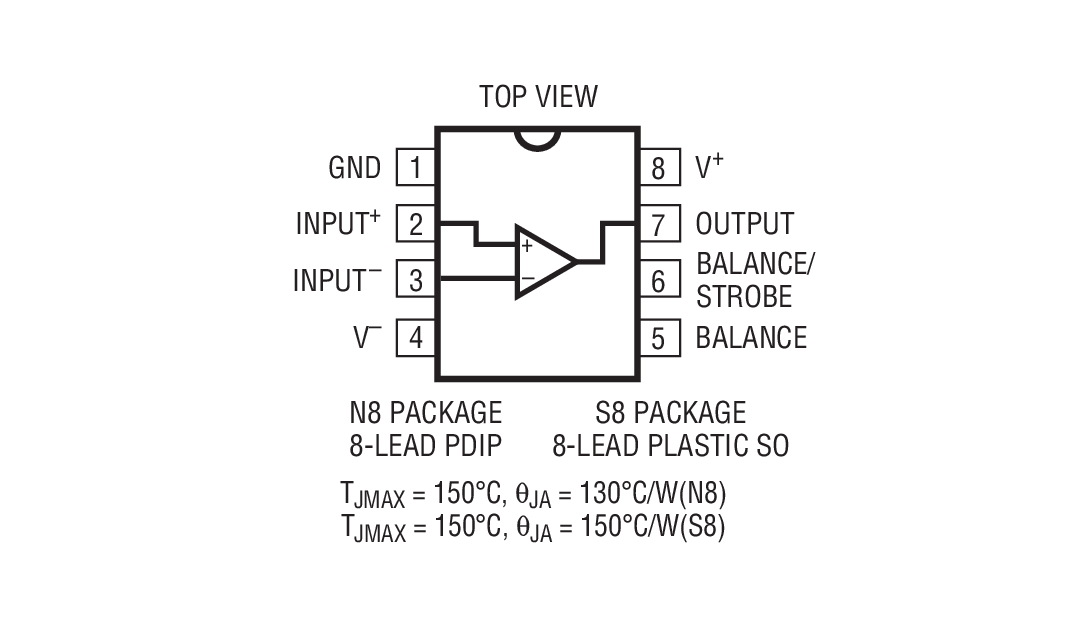

Available in 8-Lead PDIP and SO Packages

Part Models: 8
1ku List Price: Starting From $1.74

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1011ACN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1011AIS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1011AIS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1011CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1011CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1011CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1011IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1011IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1011ACN8#PBF	PRODUCTION
LT1011CN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1011ACN8#PBF	PRODUCTION
LT1011CN8#PBF	PRODUCTION
Oct 12, 2022 - 22_0254 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2)
		PCN22_0254_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1011AIS8#PBF	PRODUCTION
LT1011AIS8#TRPBF	PRODUCTION
LT1011CS8#PBF	PRODUCTION
LT1011CS8#TRPBF	PRODUCTION
LT1011IS8#PBF	PRODUCTION
LT1011IS8#TRPBF	PRODUCTION
Jun 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1011AIS8#PBF	PRODUCTION
LT1011AIS8#TRPBF	PRODUCTION
LT1011CS8#PBF	PRODUCTION
LT1011CS8#TRPBF	PRODUCTION
LT1011IS8#PBF	PRODUCTION
LT1011IS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

LT1011 - Comparators

Models for the following parts are available in LTspice:

LT1011

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
