LT1010

PRODUCTION

Fast ±150mA Power Buffer

Data Sheet

Part Models: 6
1ku List Price: Starting From $3.21

Viewing:

Part Details

20MHz Bandwidth
75V/μs Slew Rate
Drives ±10V into 75Ω
5mA Quiescent Current
Drives Capacitive Loads > 1μF
Current and Thermal Limit
Operates from Single Supply ≥ 4.5V

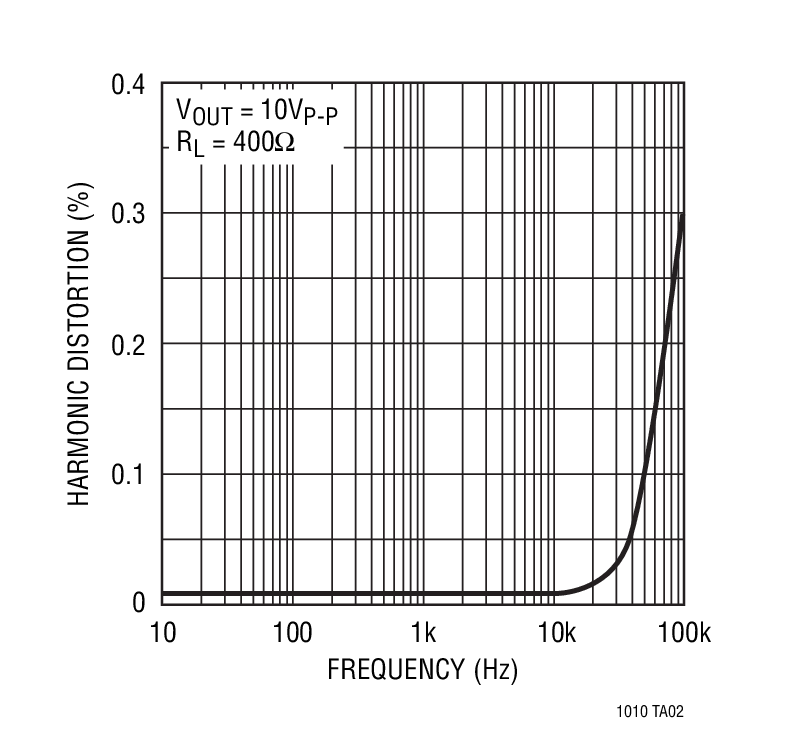

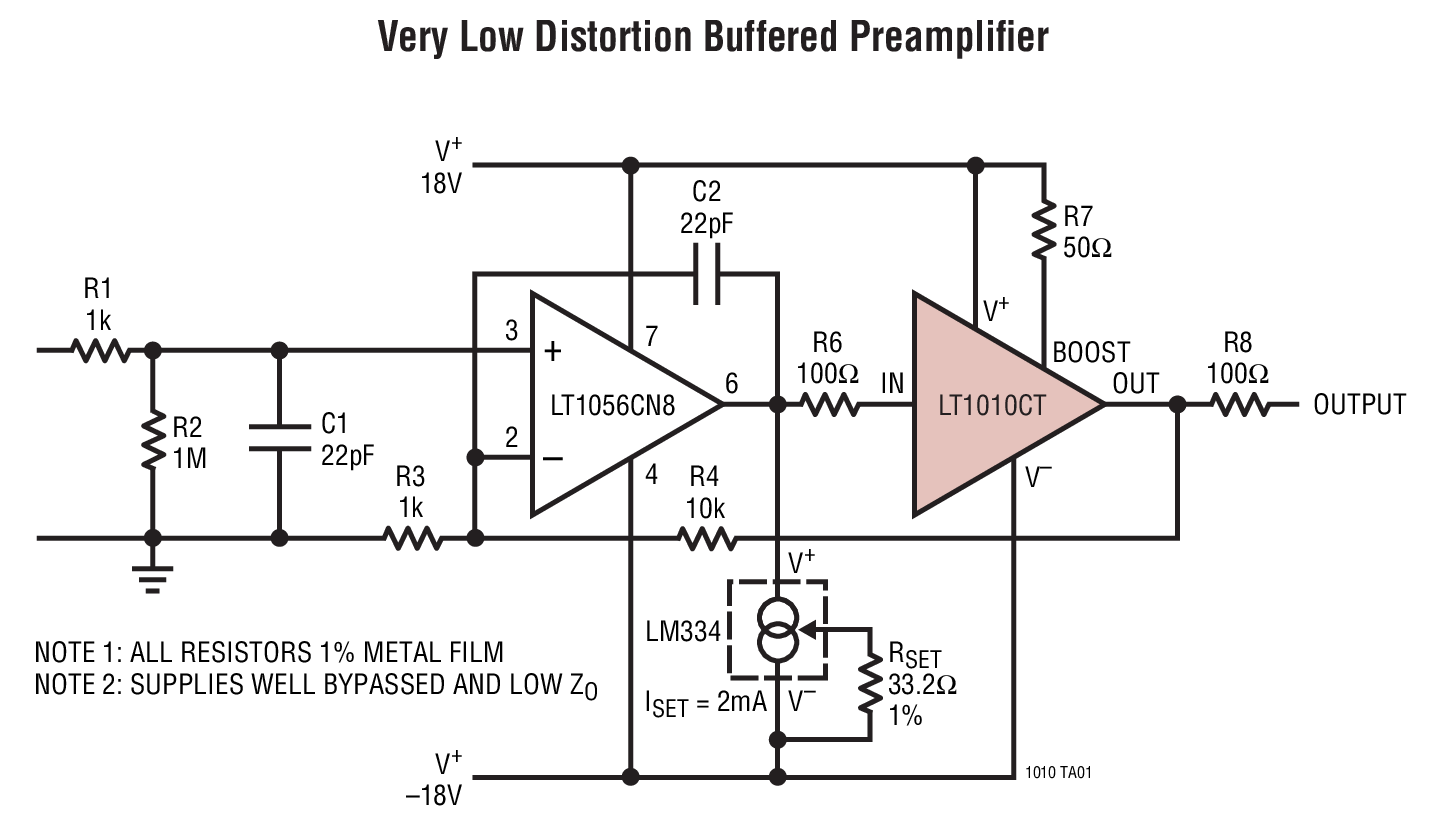

Very Low Distortion Operation
Available in 8-Pin miniDIP, Plastic TO-220 and Tiny 3mm × 3mm × 0.75mm 8-Pin DFN Packages

Part Models: 6
1ku List Price: Starting From $3.21

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

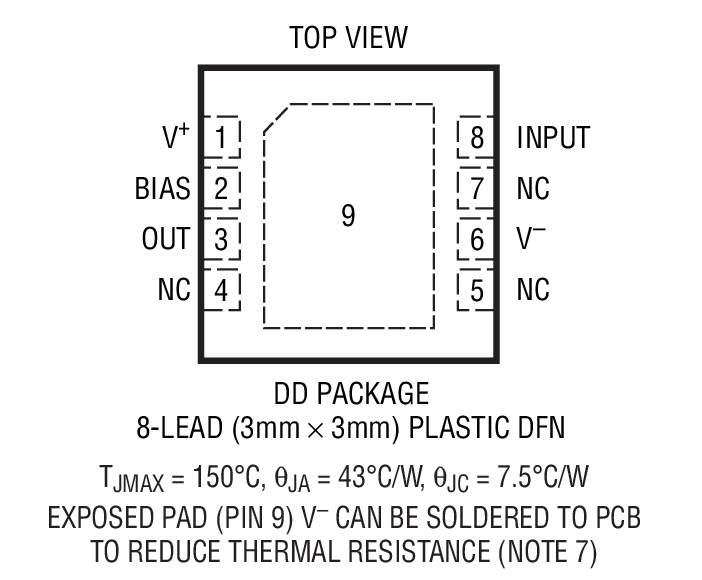

LT1010CDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1010CDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

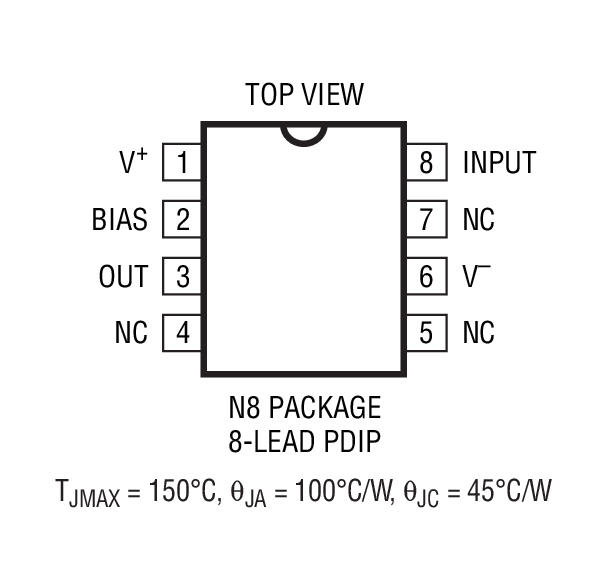

LT1010CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

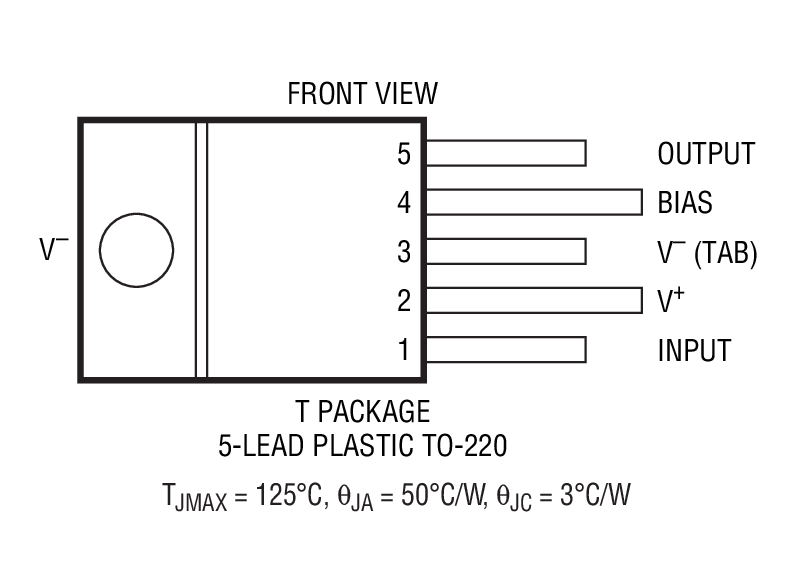

LT1010CT#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1010CT#30PBF	N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1010CT#PBF	5-Lead TO-220	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1010CN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1010CN8#PBF	PRODUCTION
Aug 10, 2022 - 22_0175 Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark
		PCN22_0175_Form Material_Report Delta Qualification Matrix
LT1010CT#06PBF	PRODUCTION
LT1010CT#30PBF	PRODUCTION
