HMC618

Obsolete

GaAs SMT pHEMT Low Noise Amplifier SMT, 1.2 - 2.2 GHz

Data Sheet Product Selection Table
Viewing:

Part Details

  • Noise Figure: 0.75 dB
  • Gain: 19 dB
  • Output IP3: 36 dBm
  • Single Supply: +3V to +5V
  • 50 Ohm Matched Input/Output
  • 16 Lead 3x3mm QFN Package: 9 mm²

Suggested Replacement Parts

HMC618A RECOMMENDED FOR NEW DESIGNS

GaAs SMT pHEMT Low Noise Amplifier, 1.2 - 2.2 GHz

HMC618

GaAs SMT pHEMT Low Noise Amplifier SMT, 1.2 - 2.2 GHz

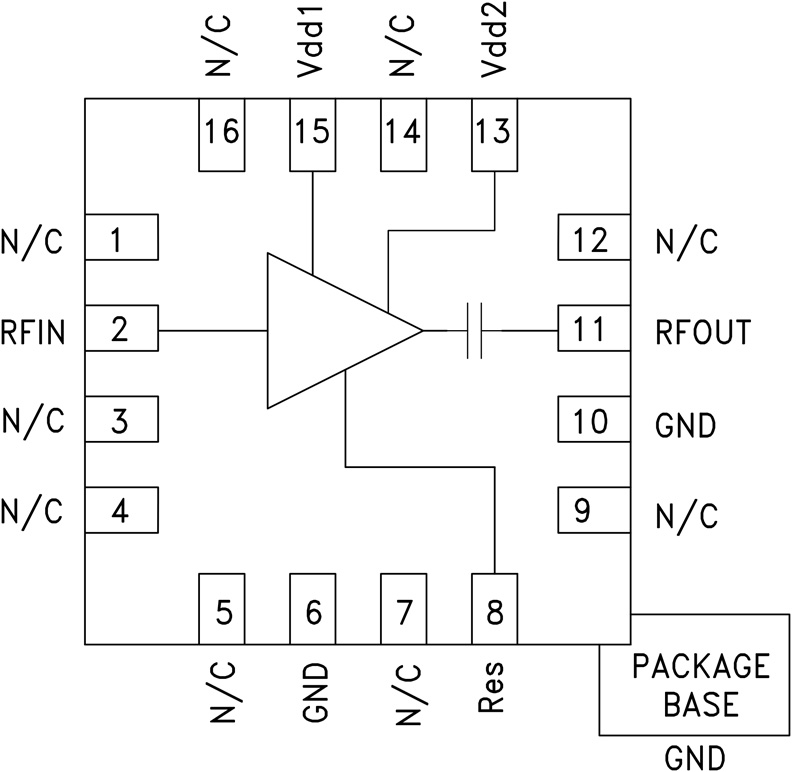

hmc618lp3_fbl
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Application Note 1

Evaluation Design File 1

Obsolete Data Sheet 1

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
HMC618A
RECOMMENDED FOR NEW DESIGNS GaAs SMT pHEMT Low Noise Amplifier, 1.2 - 2.2 GHz
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

Sys-Parameter Models for Keysight Genesys

Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.

Open Tool
