HMC589A

RECOMMENDED FOR NEW DESIGNS

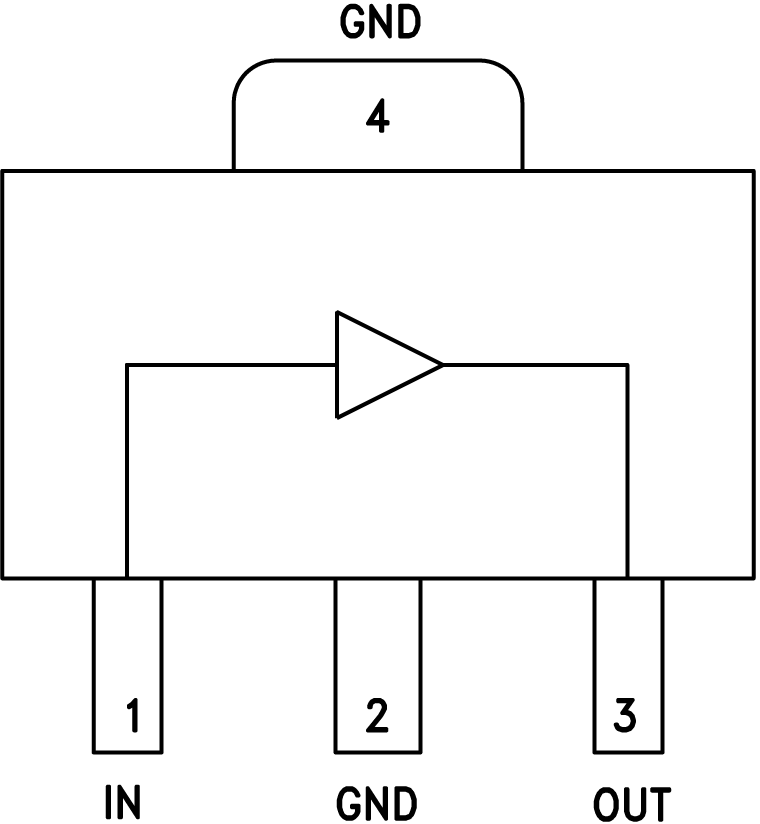

InGaP HBT Gain Block MMIC Amplifier, DC - 4 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

P1dB Output Power: +21 dBm
Gain: 21 dB
Output IP3: +33 dBm

Single Supply: +5V
Industry Standard SOT89E Package

Part Models: 2
1ku List Price: price unavailable

Documentation

Application Note 2

AN-1604: Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages 08/01/2019

AN-2591: When It Comes to Long-Term Reliability of RF Amplifier ICs, Focus First on Die Junction Temperature 08/05/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC589AST89E	3-Lead SOT-89	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC589AST89ETR	3-Lead SOT-89	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

S-Parameter 1

HMC589A S-Parameters
