HMC1049LP5E

PRODUCTION

GaAs pHEMT MMIC Low Noise Amplifier, 0.3 - 20 GHz

Data Sheet (Rev. B) Product Selection Table

Part Models: 3
1ku List Price: price unavailable

Viewing:

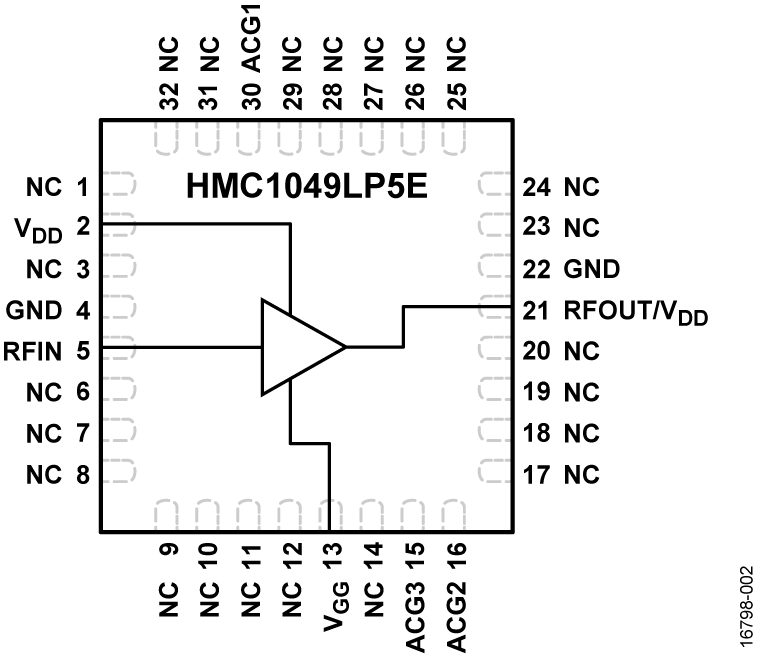

Part Details

Low noise figure: 1.8 dB
P1dB output power: 14.5 dBm
P_SAT output power: 17.5 dBm
High gain: 15 dB
Output IP3: 29 dBm
Supply voltage: V_DD = 7 V at 70 mA
50 Ω matched input/output (I/O)
32-lead, 5 mm × 5 mm LFCSP package: 25 mm²

HMC1049SCPZ-EP Supports Defense and Aerospace Applications (AQEC standard)

Download HMC1049SCPZ-EP data sheet (pdf)
Extended industrial temperature range: −55°C to +105°C
Controlled manufacturing baseline
1 assembly/test site
1 fabrication site
Product change notification
Qualification data available on request
V62/19611-01XE DSCC Drawing Number

Part Models: 3
1ku List Price: price unavailable

Documentation

Data Sheet 2

HMC1049SCPZ-EP: GaAs, pHEMT, MMIC, Low Noise Amplifier, 0.3 GHz to 20 GHz (Rev.0) 02/05/2019

HMC1049LP5E: GaAs, pHEMT, MMIC, Low Noise Amplifier, 0.3 GHz to 20 GHz Data Sheet (Rev.B) 10/20/2015

Application Note 5

Thermal Management for Surface Mount Components General Application Note 11/11/2015

AN-2061: Wideband Bias Tee Design Using 0402, SMD Components 11/30/2020

AN-1363: Meeting Biasing Requirements of Externally Biased RF/Microwave Amplifiers with Active Bias Controllers 05/13/2020

AN-1604: Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages 08/01/2019

AN-2591: When It Comes to Long-Term Reliability of RF Amplifier ICs, Focus First on Die Junction Temperature 08/05/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC1049LP5E	32-Lead QFN (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC1049LP5ETR	32-Lead QFN (5mm x 5mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC1049SCPZ-EP-R7	32-lead LFCSP (5mm x 5mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

Sys-Parameter Models for Keysight Genesys

Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.

Open Tool
