ADH606S

2 GHz to 18 GHz, UltraLow Phase Noise, Distributed Amplifier

Viewing:

Part Details

  • Ultra Low Phase Noise: -160 dBc/Hz @ 10 kHz
  • P1dB output power: + 15 dBm
  • Gain: 14 dB
  • Output IP3: + 27 dBm
  • Supply Voltage: +5 V @ 64 mA
  • 50 Ω Matched Input/Output
  • Die size: 2.802 mm x 1.73 mm x 0.1 mm
  • Screened in accordance with MIL-PRF-38534, Class K
ADH606S
2 GHz to 18 GHz, UltraLow Phase Noise, Distributed Amplifier

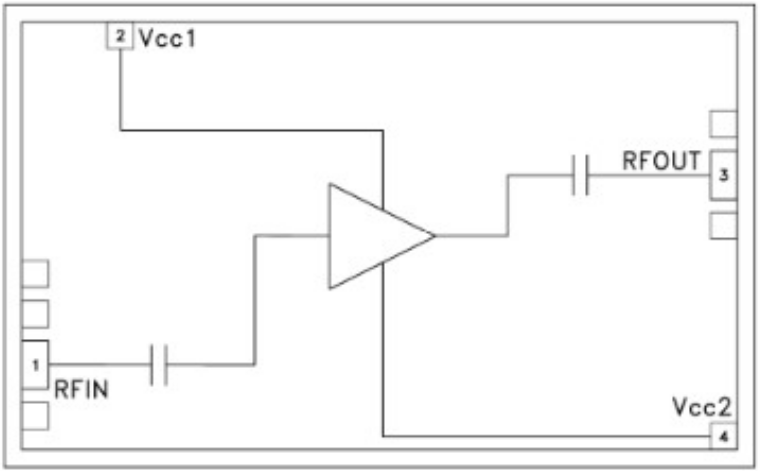

sid000018a adh606s
