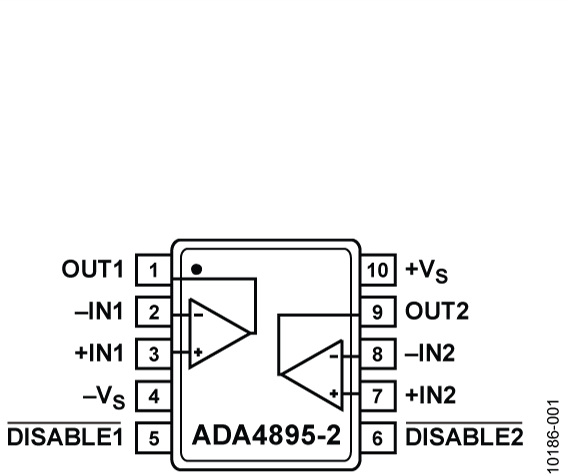

ADA4895-2

RECOMMENDED FOR NEW DESIGNS

Low Power, 1 nV/√Hz, G ≥ 10 Stable, Rail-to-Rail Output Amplifier

Data Sheet (Rev. B)

Part Models: 3
1ku List Price: Starting From $3.78

Viewing:

Part Details

Low wideband noise
-- 1 nV/√Hz
-- 2.6 pA/√Hz
Low 1/f noise:
2 nV/√Hz at 10 Hz
Low distortion (SFDR):
−96 dBc @ 100 kHz,
V_OUT = 2 V p-p
Low power:
3 mA per amplifier
Low input offset voltage:
350 μV maximum
High speed
-- 236 MHz, −3 dB bandwidth (G=+10)
-- 943 V/µs slew rate
-- 22 ns settling time to 0.1%
Rail-to-rail output
Wide supply range:
3 V to 10 V
Disable feature

Part Models: 3
1ku List Price: Starting From $3.78

Documentation

Data Sheet 1

ADA4895-1/ADA4895-2: Low Power, 1 nV/√Hz, G ≥ 10 Stable, Rail-to-Rail Output Amplifier Data Sheet (Rev.B) 12/20/2012

User Guide 1

UG-337: Universal Evaluation Board for Dual, High Speed Op Amps Offered in 10-Lead MSOP Packages 03/09/2012

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADA4895-2ARMZ	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4895-2ARMZ-R7	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4895-2ARMZ-RL	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADA4895

SPICE Model 1

ADA4895 SPICE Macro Model

Signal Chain Designer - BETA

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

Open Tool

Analog Filter Wizard

Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

Open Tool

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
