ADA4523-1

RECOMMENDED FOR NEW DESIGNS

36 V, Low Noise, Zero Drift Op Amp

Data Sheet (Rev. 0)

Part Models: 6
1ku List Price: Starting From $1.09

Viewing:

Part Details

Supply voltage range: 4.5 V to 36 V
Offset voltage: ±4 µV maximum at 5 V
Offset voltage drift: 0.01 µV/°C maximum at 5 V

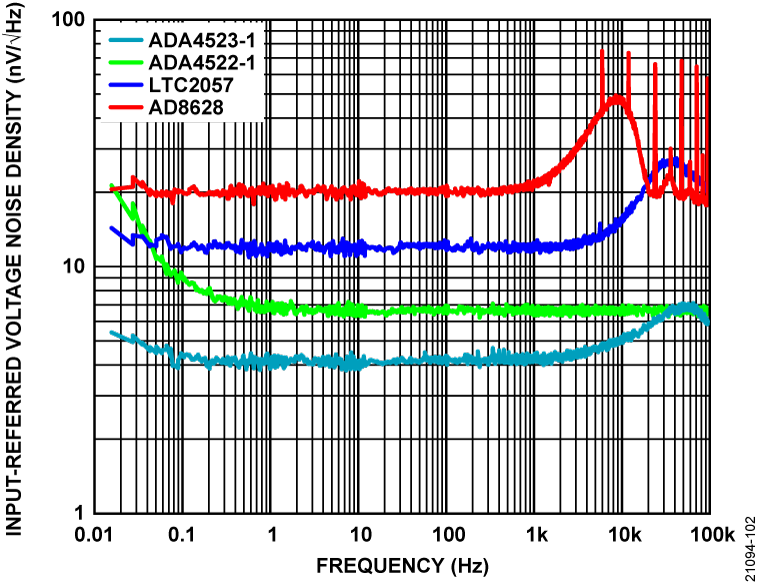

Input noise

Voltage: 88 nV p-p from 0.1 Hz to 10 Hz typical
Spectral density voltage: 4.2 nV/√Hz typical at 1 kHz

Rail-to-rail output
Unity-gain stable
GBP: 5 MHz typical
Slew rate: 1.8 V/µs typical falling

PSRR: 168 dB typical at V_S = 4.5 V to 36 V
Open-loop voltage gain: 160 dB typical at V_OUT = −14.75 V to +14.75 V, R_L = 10 kΩ, V_S = 30 V
CMRR: 160 dB typical at V_CM = −15.1 V to +13.5 V,V_S= 30V
Integrated EMI filters
Shutdown mode
Ground sense
Available in 8-lead SOIC, 8-lead MSOP, and 8-lead LFCSP

Part Models: 6
1ku List Price: Starting From $1.09

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADA4523-1BCPZ	8-Lead LFCSP (3mm x 3mm x 0.75mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4523-1BCPZ-RL7	8-Lead LFCSP (3mm x 3mm x 0.75mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4523-1BRMZ	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4523-1BRMZ-RL7	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4523-1BRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADA4523-1BRZ-RL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
ADA4523-1BRZ	PRODUCTION
ADA4523-1BRZ-RL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADA4523-1

Signal Chain Designer - BETA

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

Open Tool

Analog Filter Wizard

Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

Open Tool

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

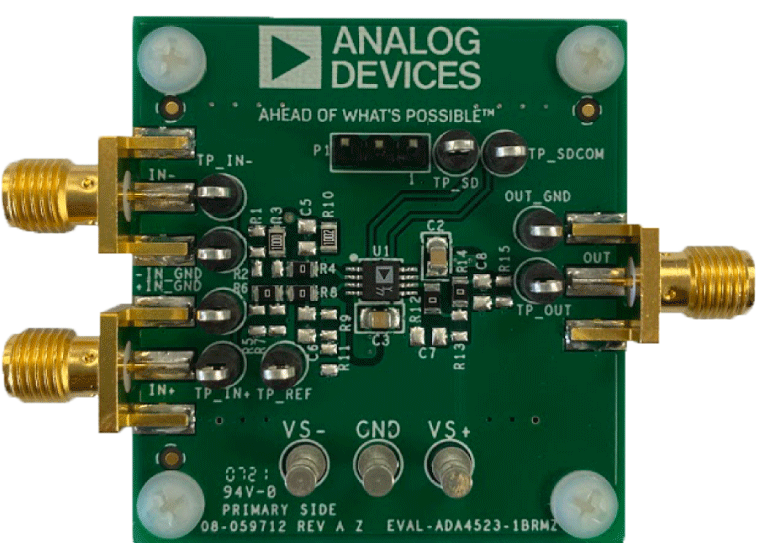

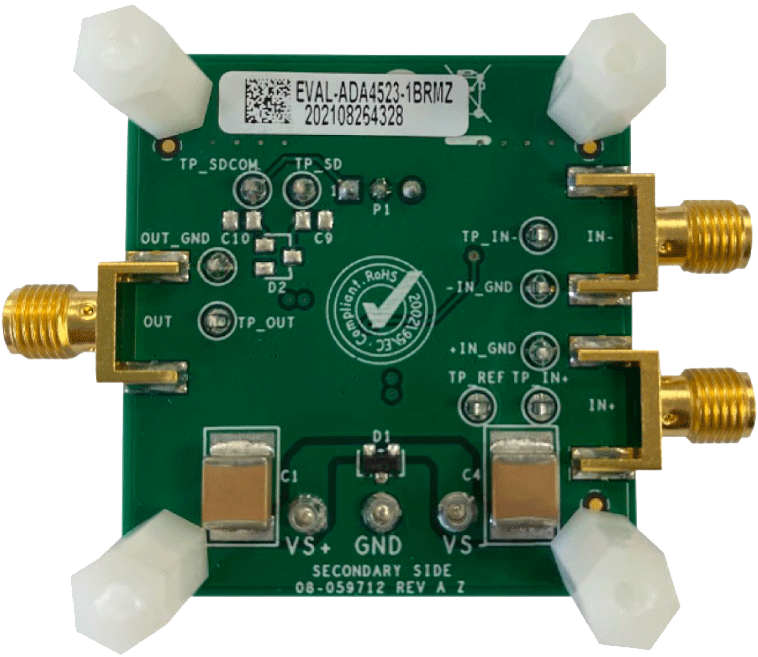

Evaluation Kits

AD-ACEVSE22KWZ-KIT

Buy Now View Details

Features and Benefits

Metrology subsystem plus selected other features of a level 2, 7kW to 22kW electric vehicle supply equipment (EVSE)
Full-featured board for ADE9112, ADE9113, and ADE9178
Rated up to three phase, 240V RMS line to neutral voltage
Rated up to 32A current measurement with on-board shunts
Supports up to 22kW combined power transfer to load
Features MAX32672 low power, secure microcontroller
Supports LCD display for energy and state updates
Supports MODBUS™ protocol over RS-485 communication interface
Supports Protobuf™ messages to communicate with EVerest open source software (OSS)
IEC61851-compatible state machine implementation

Product Details

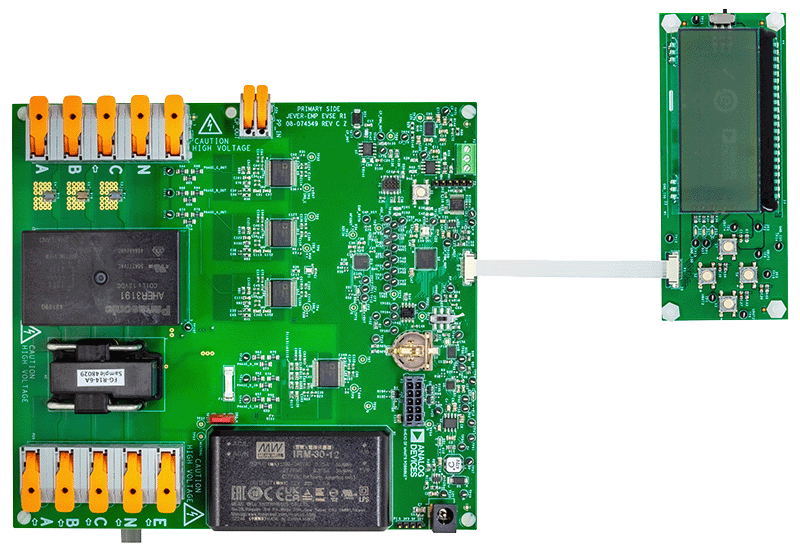

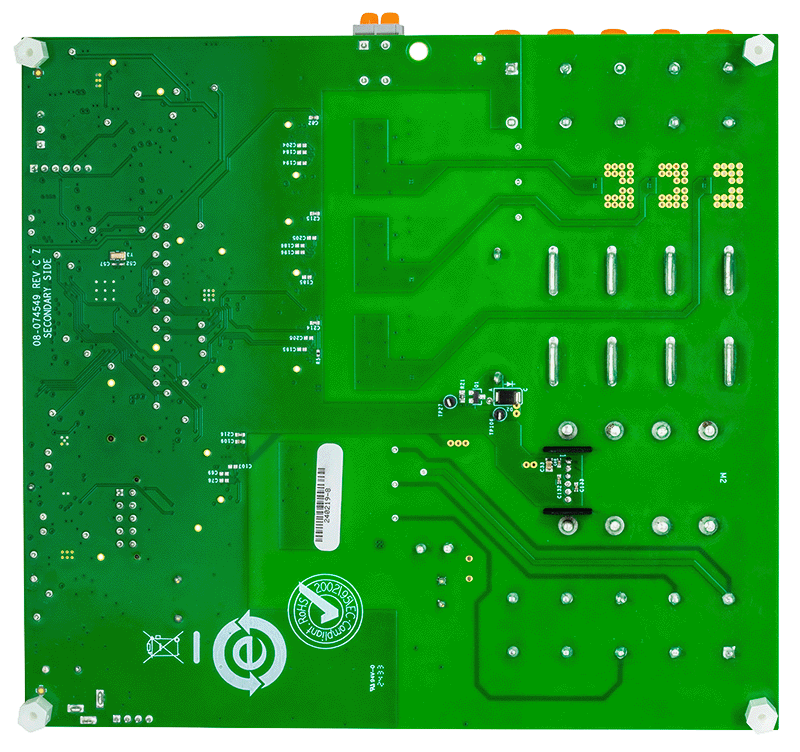

The AD-ACEVSE22KWZ-KIT is a reference design for the metrology subsystem plus selected other features of a level 2, 7 kW to 22 kW AC electric vehicle supply equipment (EVSE). It includes the ADE9113 isolated Σ-Δ analog-to-digital converter (ADC) coupled with the ADE9178 metrology DSP to accurately measure energy delivered to an electric vehicle (EV). It includes the MAX32672 ultralow- power ARM^® Cortex^®-M4 processor, a cost-effective, highly integrated, and highly reliable 32-bit microcontroller to accumulate energy measurements and securely send it to a host for display. A charge control state machine is run on the microcontroller to transition through different charge states when a charging plug is inserted into an electric vehicle. The kit includes a flexible printed circuit (FPC) connector and LCD to read the energy measurements and state transitions during a charging cycle. The power input/output, control pilot (CP), and proximity pilot (PP) signals are exposed on connectors at the edge of the board. The energy delivered to the EV is measured as a voltage drop across shunts and a resistor ladder network, which makes it easy to set up the boards in the field.
