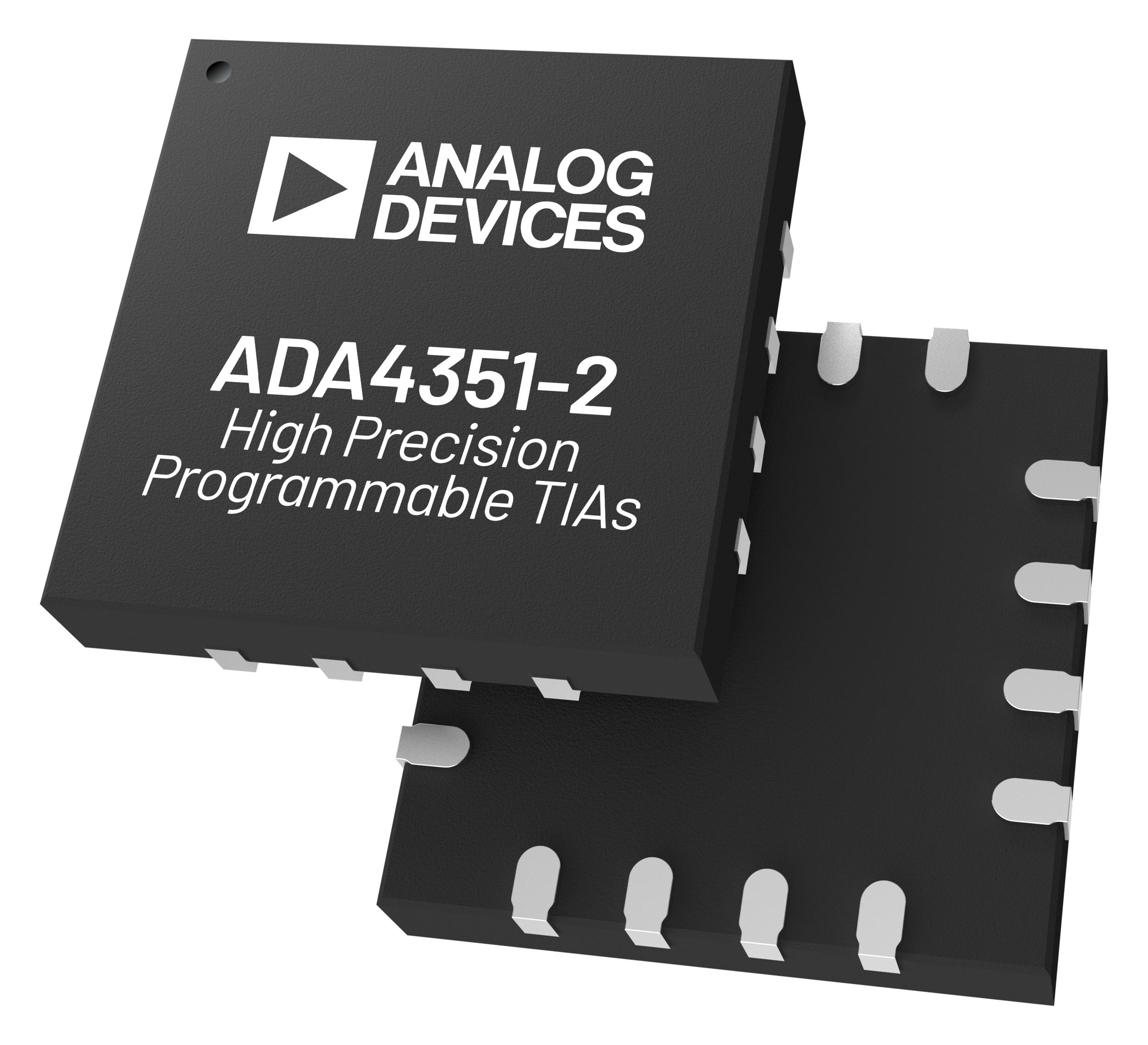

ADA4351-2

RECOMMENDED FOR NEW DESIGNS

Compact, Dual-Channel, Precision, Programmable Gain Transimpedance Amplifier (PGTIA)

Compact, Dual channel, Precision Programmable-Gain Transimpedance Amplifier (PGTIA) with 2 external gain settings per channel

Part Models
3
1ku List Price
Starting From $3.95

Part Details

  • Small, dual-channel, complete PGTIA and AFE solution
  • Small size package:16-lead LFCSP, 3 mm × 3 mm
  • Integrated switches, 2 external gains per channel
  • Wide input current dynamic range from picoamps to milliamps
  • Excellent DC precision
    • Low offset voltage: ±100 μV maximum, 25°C
    • Low offset voltage drift: ±0.85 μV/°C maximum, −40°C to +125°C
    • Low input bias current: ±9 pA maximum, 25°C
    • Low switch off leakage current : ±90 pA maximum (−40°C to +125°C)
  • New integrated architecture eliminates gain error due to switch resistance
  • Single-supply operation: +2.7 V to +5.5 V (dual-supply operation: ±1.85 V to ±2.75 V)
  • Wide gain bandwidth product: 8.5 MHz
  • Wide operating temperature range: −40°C to +125°C
ADA4351-2
Compact, Dual-Channel, Precision, Programmable Gain Transimpedance Amplifier (PGTIA)
Ask a Question

Documentation

Learn More

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
Linear Regulators 4
LT3042 RECOMMENDED FOR NEW DESIGNS 20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator
ADP7112 RECOMMENDED FOR NEW DESIGNS 20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator
ADP7118 RECOMMENDED FOR NEW DESIGNS 20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator
LT3097 RECOMMENDED FOR NEW DESIGNS Dual 500mA, Positive/Negative, Ultra-Low Noise, Ultra-High PSRR Low Dropout Linear Regulator
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

SPICE Model 1

Photodiode Circuit Design Wizard

Open Tool

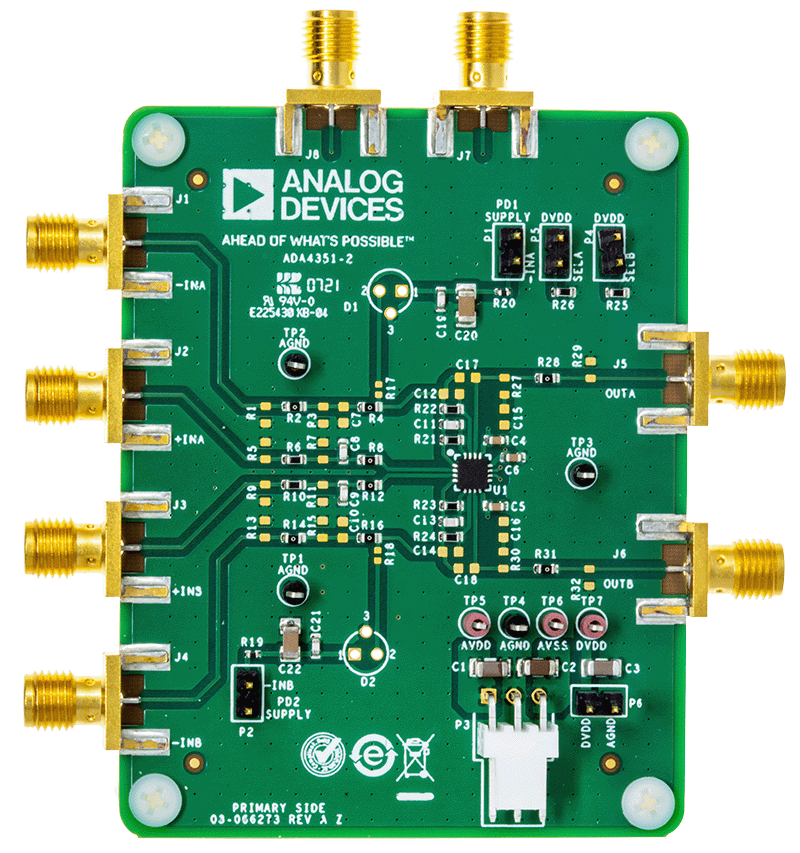

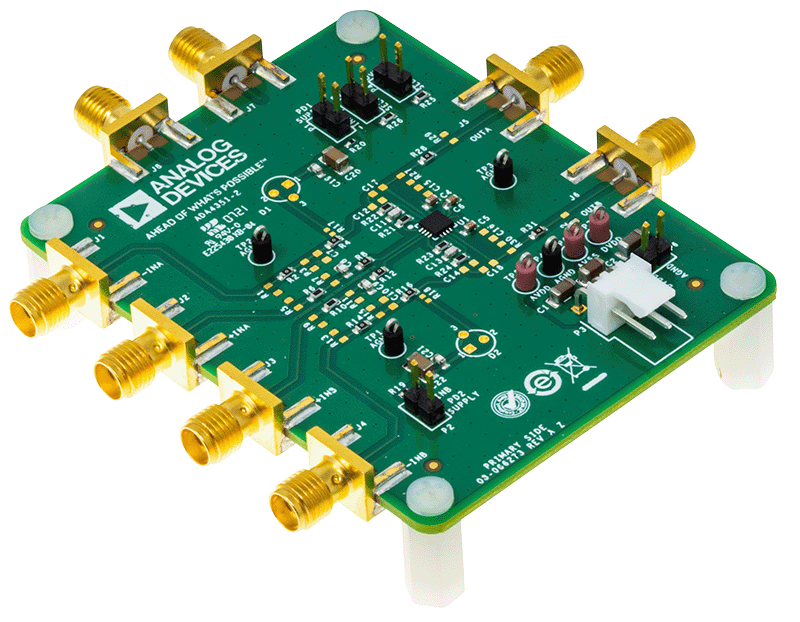

Evaluation Kits

eval board
EVAL-KW4101Z

Precision Integrating Transimpedance Amplifier KWIK Demo Board

Features and Benefits

  • Enables quick measurement of input current from the photodiode using ADA4351-2.
  • The included LED allows to measure pA in light setting configuration and fA in dark setting configuration.
  • The circuit is enclosed by a black box to reduce the sensitivity to ambient lighting conditions.
  • Plug and play in ADALM2000 learning module

Product Details

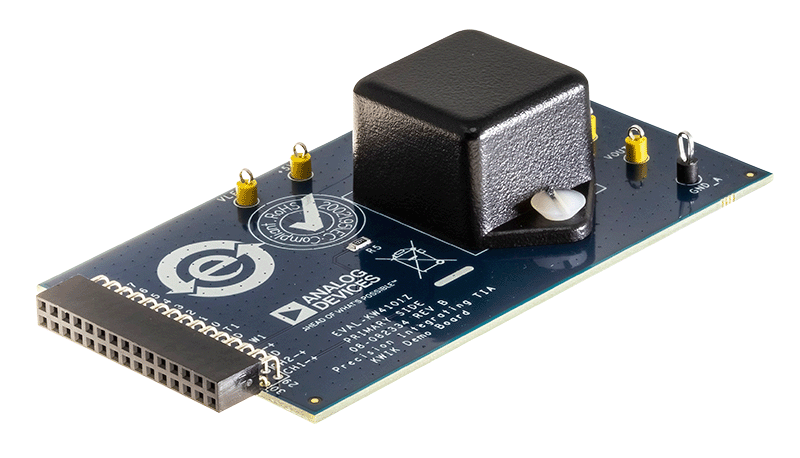

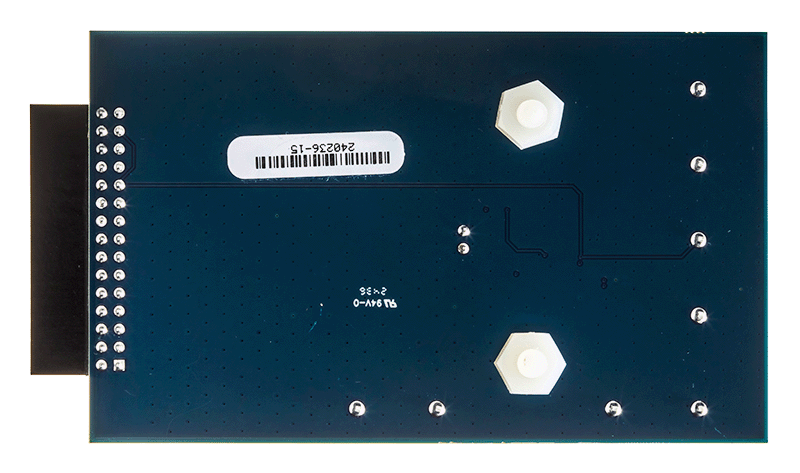

The EVAL-KW4101Z is a know-how with integrated knowledge (KWIK) demonstration board designed for evaluating current through a precision integrating transimpedance amplifier (TIA). It can measure femto ampere (fA) level of dark current of a TIA as well as pico ampere (pA) level of signal current with the included light-emitting diode (LED).

The EVAL-KW4101Z is mainly an integrator circuit with a 24pF external film capacitor. Connected to the TIA's noninverting input pin is a voltage divider circuit, with R1 and R2 being 1.27kΩ and 1kΩ, respectively. This thereby sets the common-mode input voltage (CMV) to 2.2V. The main circuit involves a sensitive photodiode and is thus confined within a black box enclosure to reduce the effects of ambient lighting conditions. See Figure 1 for the schematic diagram of the ADA4351-2 configured as an integrator with an external capacitor, resistor divider at the input, and a single supply of 5V.

Please see the User Guide for the full description.

EVAL-KW4101Z
Precision Integrating Transimpedance Amplifier KWIK Demo Board
