AD8565

PRODUCTION

16 V Rail-to-Rail Operational Amplifier (Single)

Data Sheet (Rev. H) Product Selection Table
Viewing:

Part Details

  • Single-supply operation: 4.5 V to 16 V
  • Input capability beyond the rails
  • Rail-to-rail output swing
  • Continuous output current: 35 mA
  • Peak output current: 250 mA
  • Offset voltage: 10 mV
  • Slew rate: 6 V/μs
  • Unity gain stable with large capacitive loads
  • Supply current: 700 μA per amplifier
  • Qualified for automotive applications
AD8565
16 V Rail-to-Rail Operational Amplifier (Single)

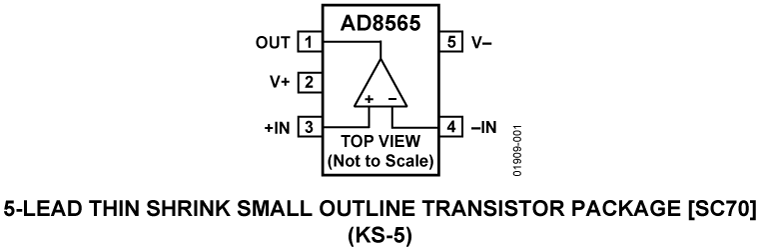

AD8565 Pin Configuration
