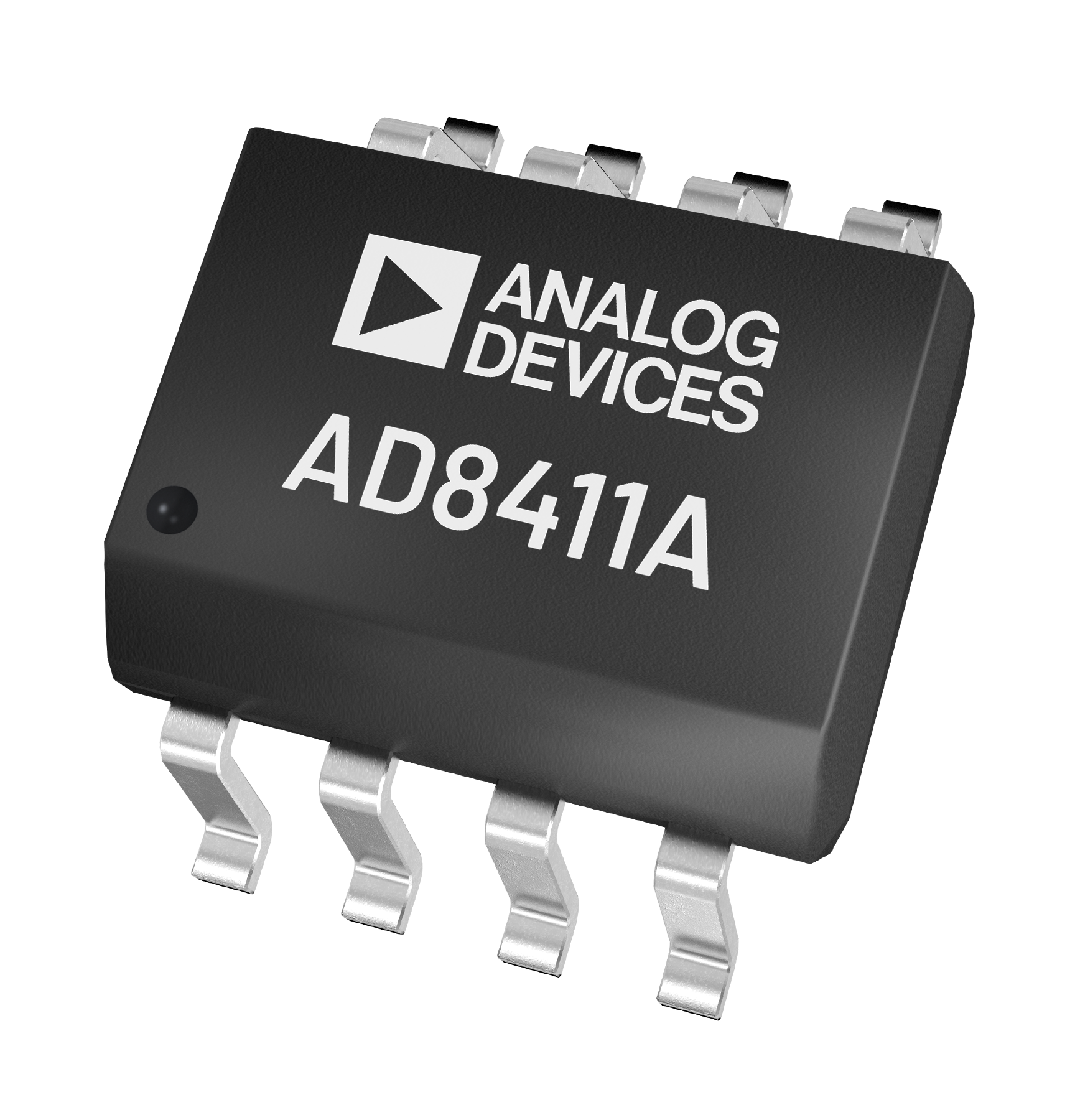

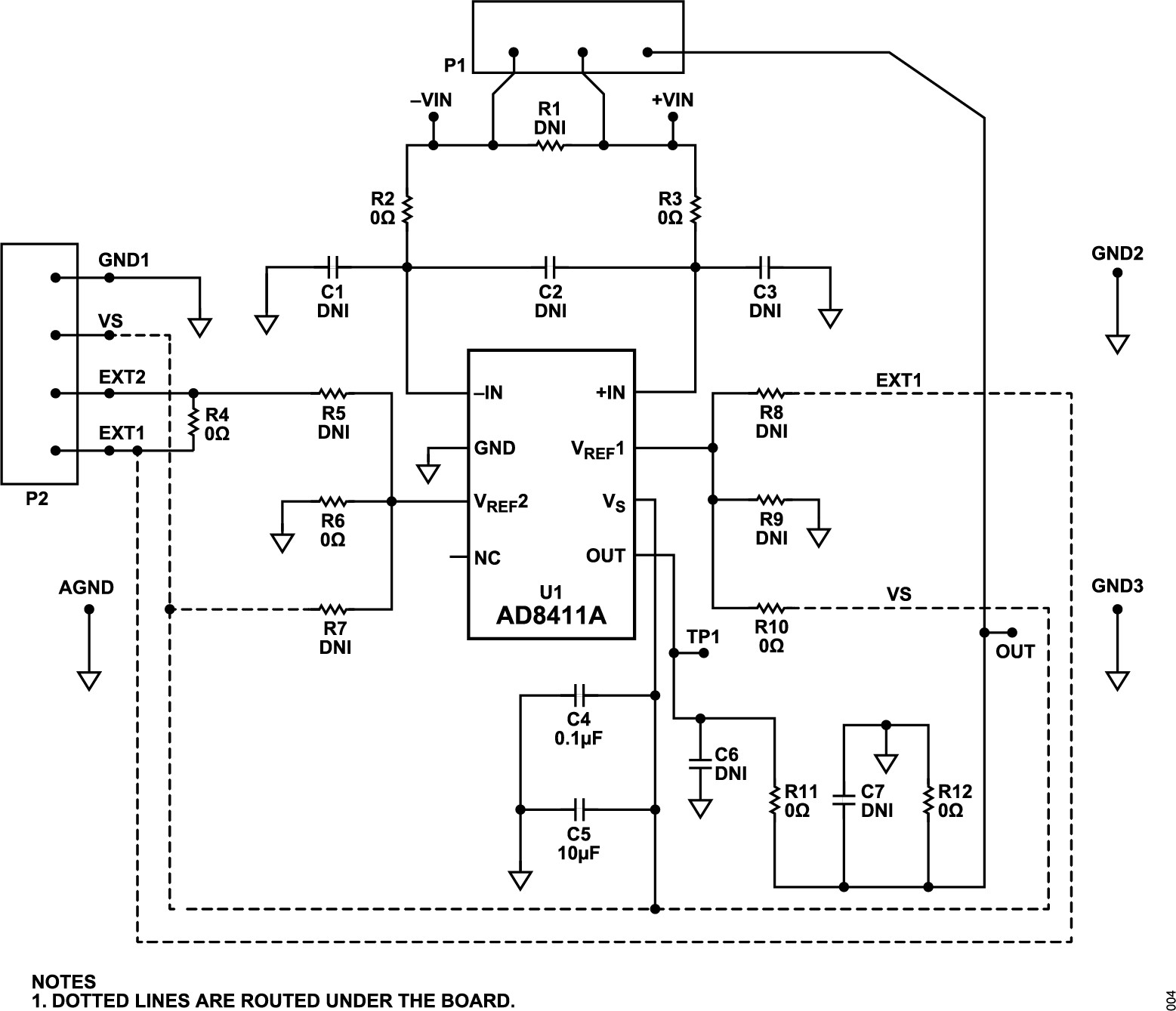

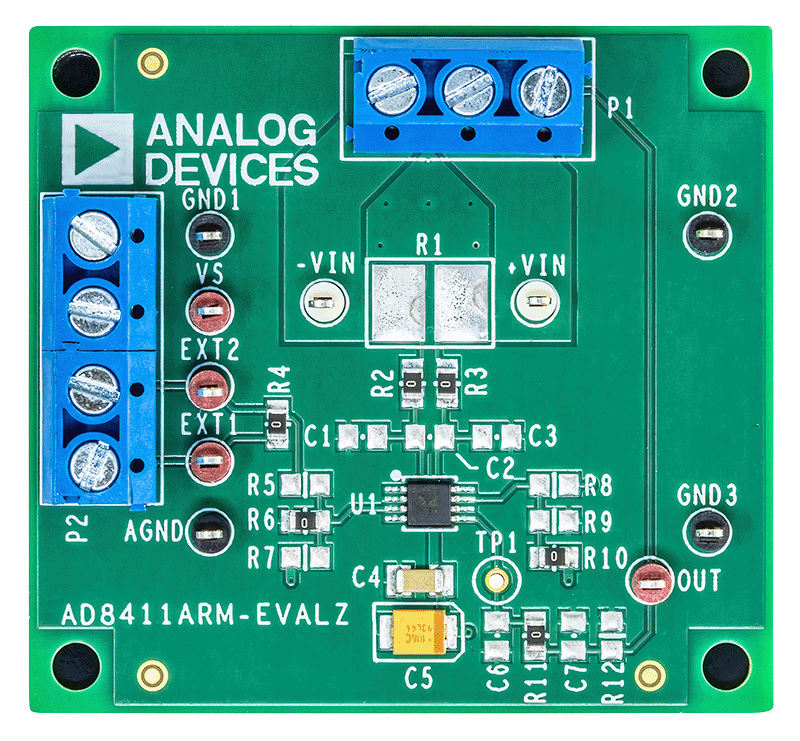

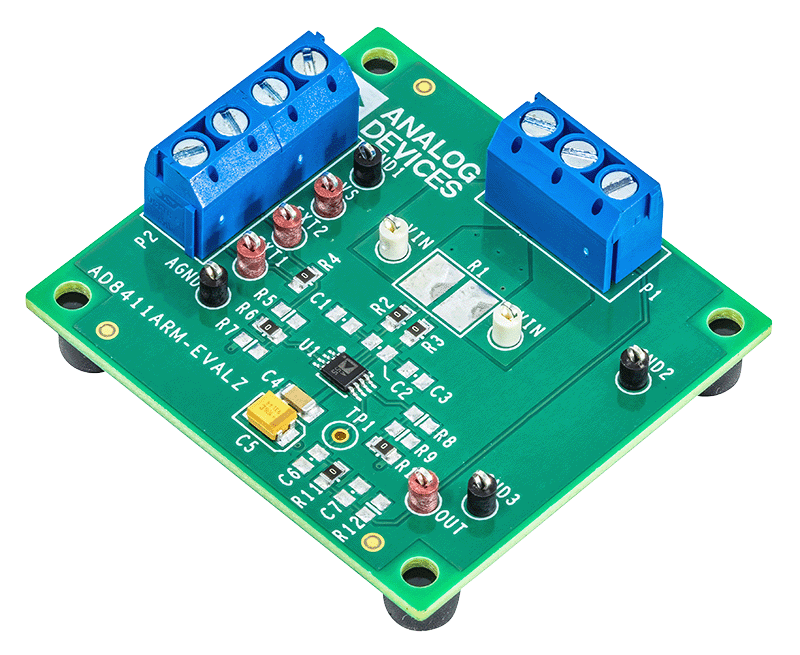

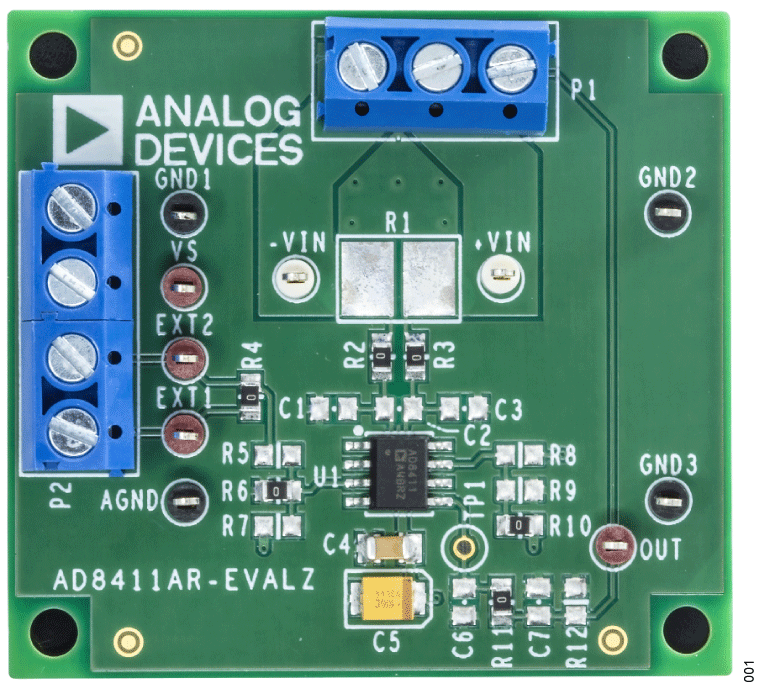

AD8411A

RECOMMENDED FOR NEW DESIGNS

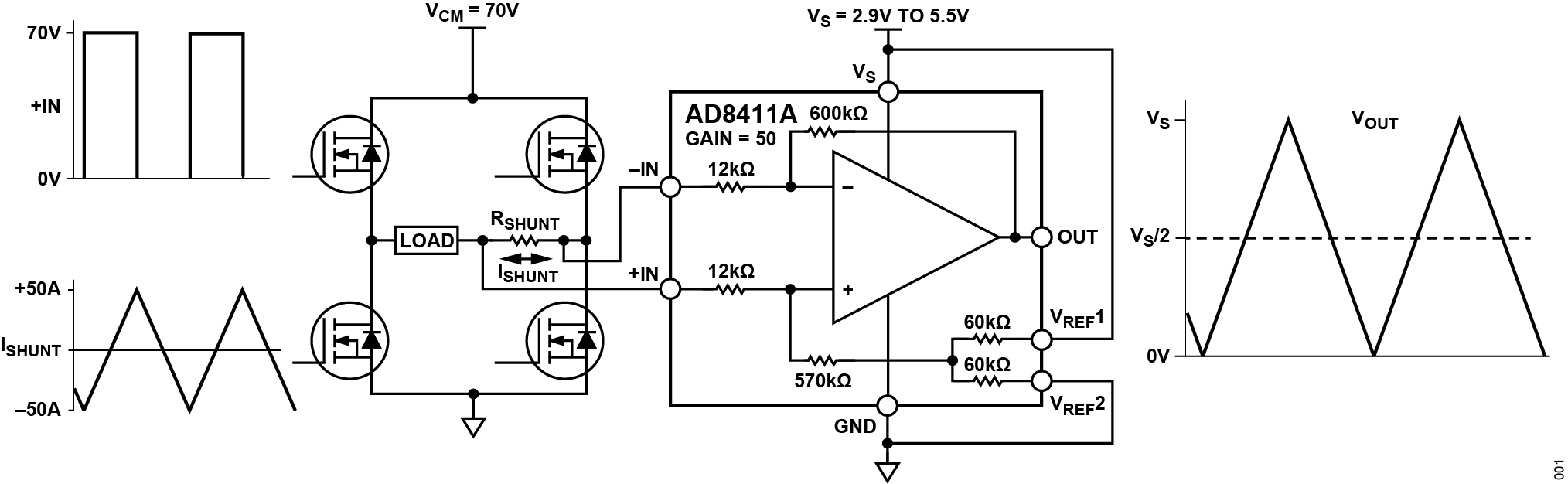

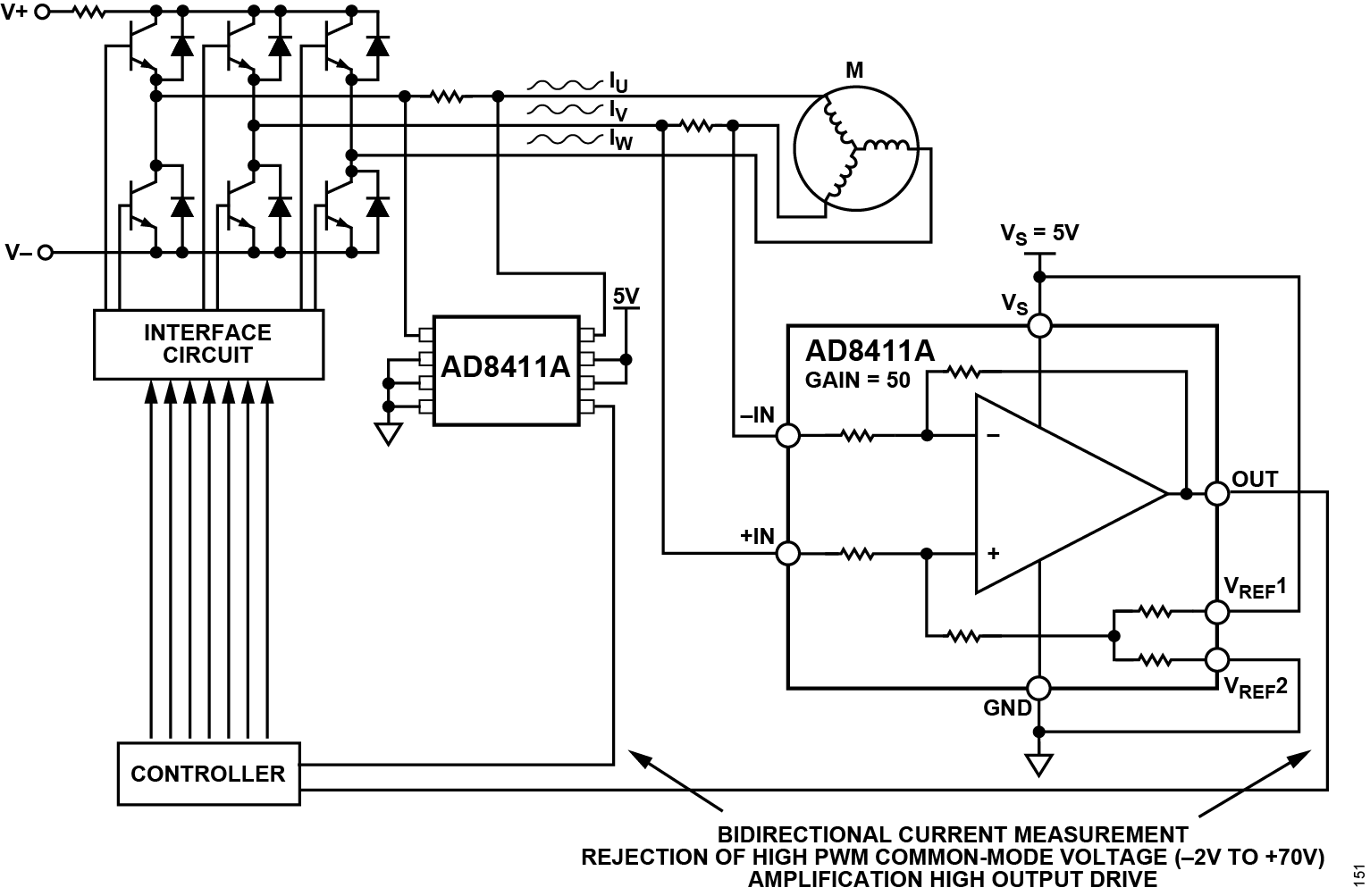

−2 V to 70 V Wide Input Voltage Range, 2.7 MHz High Bandwidth, Current-Sense Amplifier with PWM Rejection and Gain 50 V/V

Data Sheet (Rev. C)

Part Models: 4
1ku List Price: Starting From $1.32

Viewing:

Part Details

2.7 MHz small signal, −3 dB bandwidth
In-package Trim Core (DigiTrim^™)
- Precision without chopping and/or auto-zero
- Typical ±0.26 μV/°C offset drift
- Maximum ±200 μV voltage-offset over temperature range
- Typical DC CMRR: 142 dB
- Typical AC CMRR at 50 kHz: 96 dB
Wide common-mode input voltage range
- −2 V to +70 V, continuous operation
- −20 V to +85 V, continuous survival

Initial gain: 50 V/V
Wide operating temperature range: −40°C to +125°C
Bidirectional operation
2.9 V to 5.5 V power-supply operating range

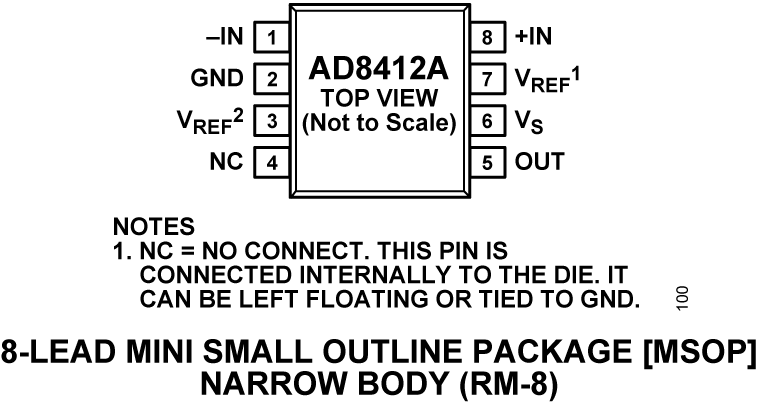

Available in 8-lead SOIC_N, 8-lead MSOP, and 10-lead MSOP packages
AEC-Q100 Automotive Qualified

Part Models: 4
1ku List Price: Starting From $1.32

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8411AWBRMZ	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8411AWBRMZ-RL	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8411AWBRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8411AWBRZ-RL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
