AD823

PRODUCTION

16 MHz, Rail-to-Rail FET Input Dual Amplifier

Data Sheet (Rev. E)

Part Models: 4
1ku List Price: Starting From $3.28

Viewing:

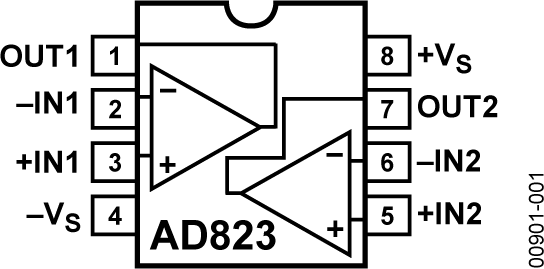

Part Details

Single-supply operation
- Output swings rail-to-rail
- Input voltage range extends below ground
- Single-supply capability from 3 V to 36 V
High load drive
- Capacitive load drive of 500 pF, G = +1
- Output current of 15 mA, 0.5 V from supplies
Excellent ac performance on 2.6 mA/amplifier
- −3 dB bandwidth of 16 MHz, G = +1
- 350 ns settling time to 0.01% (2 V step)
- Slew rate of 22 V/μs
Good dc performance
- 800 μV maximum input offset voltage
- 2 μV/°C offset voltage drift
- 25 pA maximum input bias current
Low distortion: −108 dBc worst harmonic @ 20 kHz
Low noise: 16 nV/√Hz @ 10 kHz
No phase inversion with inputs to the supply rails

Part Models: 4
1ku List Price: Starting From $3.28

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD823ANZ	8-Lead PDIP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD823ARZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD823ARZ-R7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD823ARZ-RL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
AD823ANZ	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
