AD626

PRODUCTION

Low Cost, Single-Supply Differential Amplifier

Data Sheet (Rev. D) Product Selection Table

Part Models: 5
1ku List Price: Starting From $6.41

Viewing:

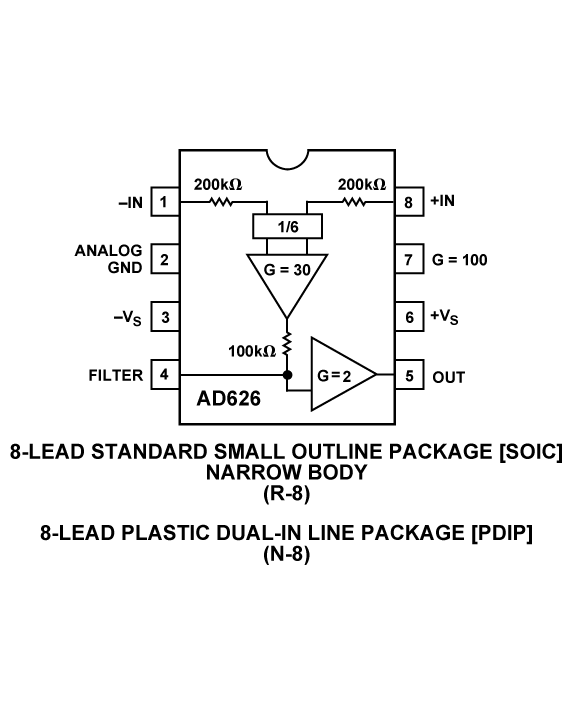

Part Details

Pin Selectable Gains of 10 and 100
True Single-Supply Operation
Single-Supply Range of +2.4V to +10V
Dual-Supply Range of ±1.2V to ±6V
Wide Output Voltage Range of 30 mV to 4.7V
Includes Input Protection
Series Resistive Inputs
(RIN = 200 kΩ)
RFI Filters Included
Allows 50V Continuous Overload
Optional Low-Pass Filtering
Excellent DC Performance
Low Input Offset Voltage: 500 µV Max
Large Common-Mode Range:
0V to +54V
Low Power: 1.2 mW (VS = +5V)
Good CMR of 90 dB Typ
AC Performance
Fast Settling Time: 24 µs (0.01%)

Part Models: 5
1ku List Price: Starting From $6.41

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD626ANZ	8-Lead PDIP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD626ARZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD626ARZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD626ARZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD626BNZ	8-Lead PDIP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 17, 2014 - 13_0265 Qualification of ASE Chungli, as an Alternate Assembly Site for Select 8L and 14L SOICN Packages
		PCN13_0265_Form Material_Report Detailed Change Description Qualification Report Summary
AD626ANZ	PRODUCTION
AD626BNZ	PRODUCTION
Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
AD626ANZ	PRODUCTION
AD626BNZ	PRODUCTION
Nov 13, 2013 - 13_0265 Qualification of ASE Chungli, as an Alternate Assembly Site for Select 8L and 14L SOICN Packages
		PCN13_0265_Form Material_Report Detailed Change Description Qualification Report Summary
AD626ARZ	PRODUCTION
AD626ARZ-REEL	PRODUCTION
AD626ARZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
AD8276	PRODUCTION	Low Power, Wide Supply Range, Low Cost Unity-Gain Difference Amplifier
AD8278	PRODUCTION	Low Power, Wide Supply Range, Low Cost Difference Amplifiers, G = ½, 2
