HMC1086F10

PRODUCTION

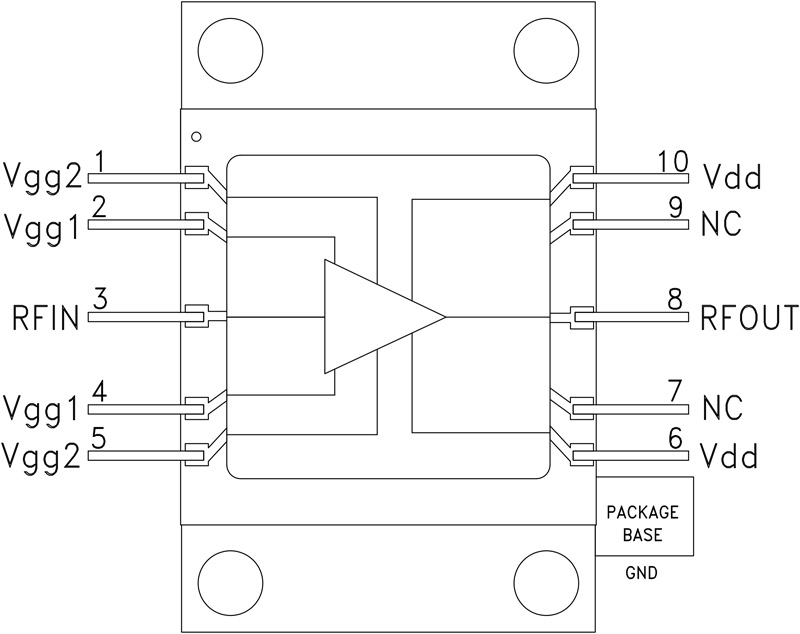

25 Watt Flange Mount GaN MMIC Power Amplifier, 2 - 6 GHz

Data Sheet

Viewing:

Part Details

High Psat: +44.5 dBm
Power Gain at Psat: 11 dB
High Output IP3: +46 dBm
Small Signal Gain: 23 dB
Supply Voltage: +28V @ 1100 mA
50 Ohm Matched Input/Output
10-Lead Flange Package

Documentation

Data Sheet 1

HMC1086F10: 25 Watt Flange Mount GaN MMIC Power Amplifier, 2 - 6 GHz Data Sheet 10/20/2015

Application Note 4

Thermal Management for Surface Mount Components General Application Note 11/11/2015

AN-1604: Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages 08/01/2019

AN-1363: Meeting Biasing Requirements of Externally Biased RF/Microwave Amplifiers with Active Bias Controllers 05/13/2020

AN-2591: When It Comes to Long-Term Reliability of RF Amplifier ICs, Focus First on Die Junction Temperature 08/05/2024

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

S-Parameter 1

HMC1086F10 S-Parameters

Evaluation Kits

Pulser Plus Reference Design for GaN PA Biasing and Sequencing

Buy Now View Details

Features and Benefits

Complete Bias Control and Sequencing Solution for Pulsed GaN Radar Power Amplifiers
Pin Compatible with ADI's existing Pulser Board and with ADI's GaN Power Amplifier Evaluation Boards
Operation in Drain Pulsed Mode or Gate Pulsed Mode
Optional Crowbar Circuit for Fast Turn Off in Drain Pulsed Mode
Single 24 V to 50 V Power Supply with on-board Negative Gate Voltage Generation.
Drain Current Monitoring Circuit

Product Details

Pulser Plus is a reference design for biasing Gallium Nitride RF Power Amplifiers. It plugs directly into Analog Devices’ GaN PA evaluation boards such as ADPA1106 and ADPA1107. The only input signals required to control and operate the board are a power supply voltage between 24 V and 50V and a 0V/3V signal on the Drain Pulse Enable or Gate Pulse Enable digital inputs.

Pulser Plus was specifically designed to enable fast pulsing of GaN Radar Power Amplifiers. It can support RF pulses as short as 1us and with rise and fall times of less than 100 ns in both Drain Pulsed mode and Gate Pulsed Mode.
