ADPA1122

RECOMMENDED FOR NEW DESIGNS

43 dBm, 20 W, GaN Power Amplifier, 8.2 GHz to 11.8 GHz

Part Models
2
1ku List Price
Starting From $342.49
Viewing:

Part Details

  • Internally matched and AC-coupled 20 W GaN power amplifier
  • Integrated temperature-compensated RF power detector
  • POUT with PIN = 22 dBm: 43.5 dBm typical from 9.6 GHz to 11 GHz
  • Small signal gain: 31 dB typical from 9.6 GHz to 11 GHz
  • Power gain with PIN = 22 dBm: 21.5 dB typical from 8.2 GHz to 11 GHz
  • PAE: 46% typical from 9.6 GHz to 11 GHz
  • Supply voltage: 28 V at 200 mA on 10% duty cycle
  • 18-terminal, 7 mm × 7 mm, LCC_HS package
ADPA1122
43 dBm, 20 W, GaN Power Amplifier, 8.2 GHz to 11.8 GHz

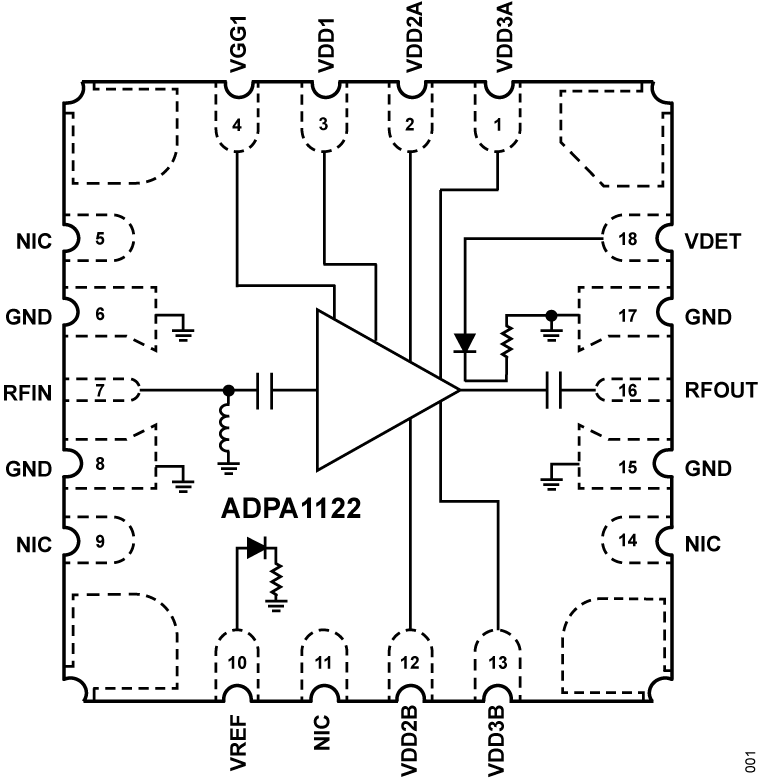

ADPA1122 Functional Block Diagram ADPA1122 Pin Configuration ADPA1122 Chip Image
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

S-Parameter 1


Evaluation Kits

eval board
ADPULSERPLUSEBZ

Pulser Plus Reference Design for GaN PA Biasing and Sequencing

Features and Benefits

  • Complete Bias Control and Sequencing Solution for Pulsed GaN Radar Power Amplifiers
  • Pin Compatible with ADI's existing Pulser Board and with ADI's GaN Power Amplifier Evaluation Boards
  • Operation in Drain Pulsed Mode or Gate Pulsed Mode
  • Optional Crowbar Circuit for Fast Turn Off in Drain Pulsed Mode
  • Single 24 V to 50 V Power Supply with on-board Negative Gate Voltage Generation.
  • Drain Current Monitoring Circuit

Product Details

Pulser Plus is a reference design for biasing Gallium Nitride RF Power Amplifiers. It plugs directly into Analog Devices’ GaN PA evaluation boards such as ADPA1106 and ADPA1107. The only input signals required to control and operate the board are a power supply voltage between 24 V and 50V and a 0V/3V signal on the Drain Pulse Enable or Gate Pulse Enable digital inputs.

Pulser Plus was specifically designed to enable fast pulsing of GaN Radar Power Amplifiers. It can support RF pulses as short as 1us and with rise and fall times of less than 100 ns in both Drain Pulsed mode and Gate Pulsed Mode.

ADPULSERPLUSEBZ
Pulser Plus Reference Design for GaN PA Biasing and Sequencing
ADPULSERPLUSEBZ Angle View ADPULSERPLUSEBZ Bottom View ADPULSERPLUSEBZ Top View ADPULSERPLUSEBZ Pulser Plus Block Diagram ADPULSERPLUSEBZ Drain Pulsed Mode Block Diagam
