ADPA1106

RECOMMENDED FOR NEW DESIGNS

46 dBm (40 W), 2.7 GHz to 3.5 GHz, GaN Power Amplifier

Data Sheet (Rev. A)
Part Models
2
1ku List Price
Starting From $352.17
Viewing:

Part Details

  • Frequency range: 2.7 GHz to 3.5 GHz
  • POUT: 46 dBm typical with PIN = 21 dBm at 2.7 GHz to 3.1 GHz
  • Power gain: 25 dB typical with PIN = 21 dBm at 2.7 GHz to 3.1 GHz
  • Small signal gain: 34.5 dB typical at 2.7 GHz to 3.1 GHz
  • PAE: 56% typical with PIN = 21 dBm at 2.7 GHz to 3.1 GHz
  • Supply voltage: VDD = 50 V at IDQ = 300 mA with 10% duty cycle
  • 32-lead, 5 mm × 5 mm LFCSP_CAV package
ADPA1106
46 dBm (40 W), 2.7 GHz to 3.5 GHz, GaN Power Amplifier

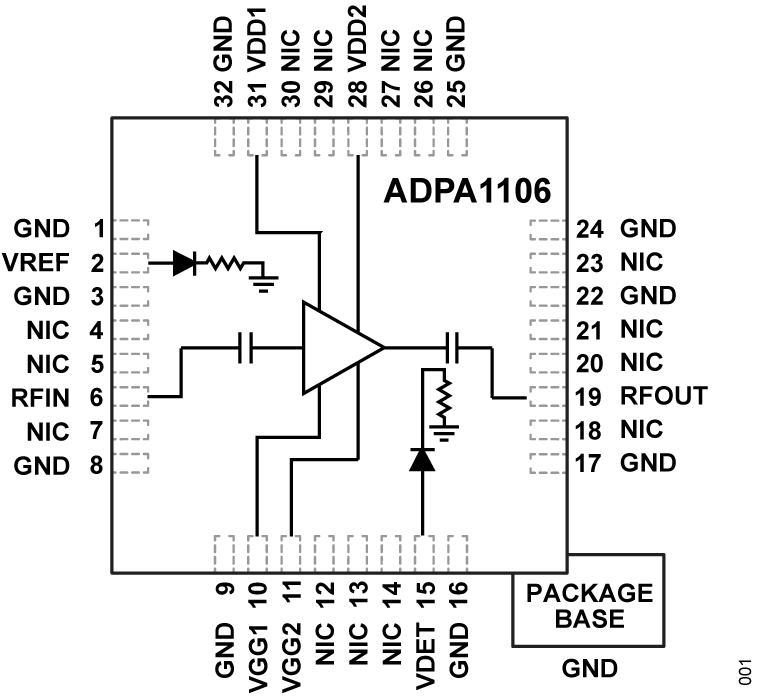

ADPA1106 Functional Block Diagram ADPA1106 Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Application Note 2

Technical Articles 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

S-Parameter 1

Evaluation Kits

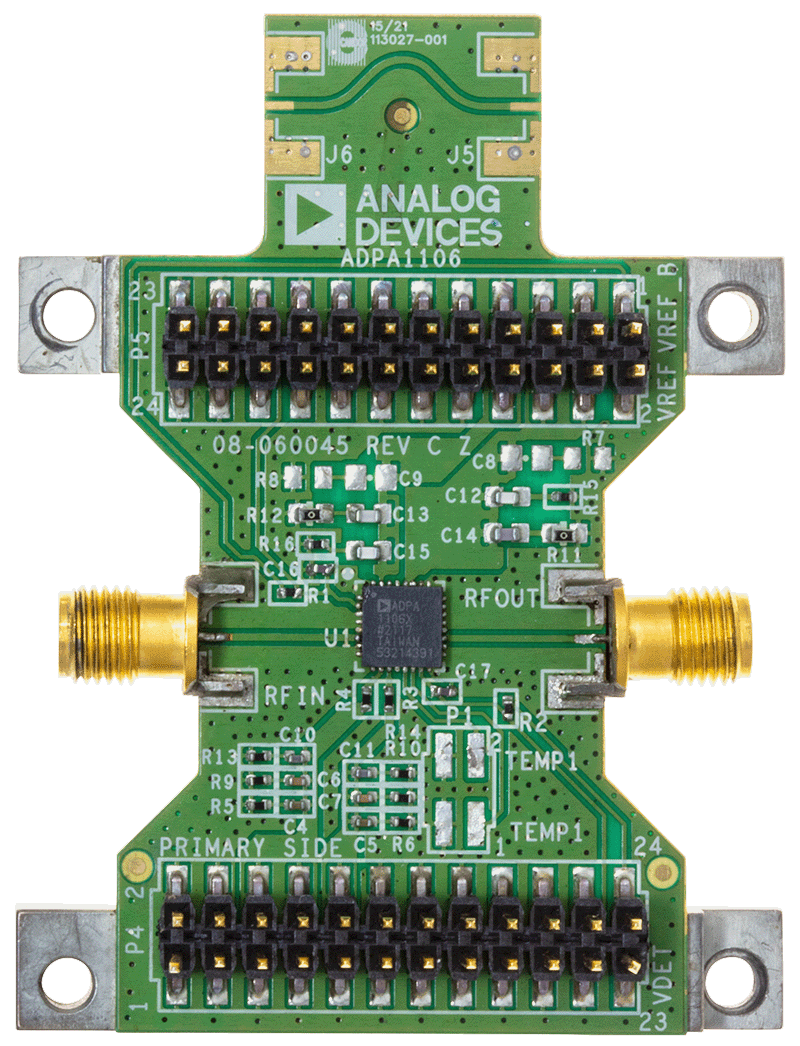

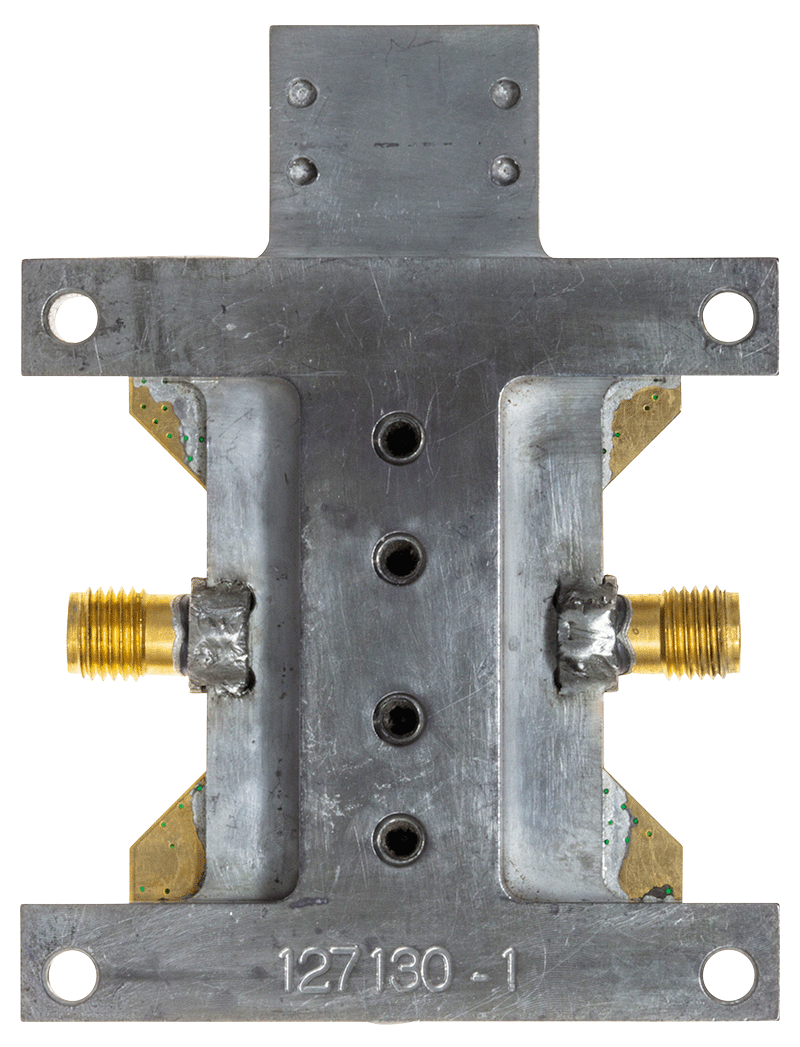

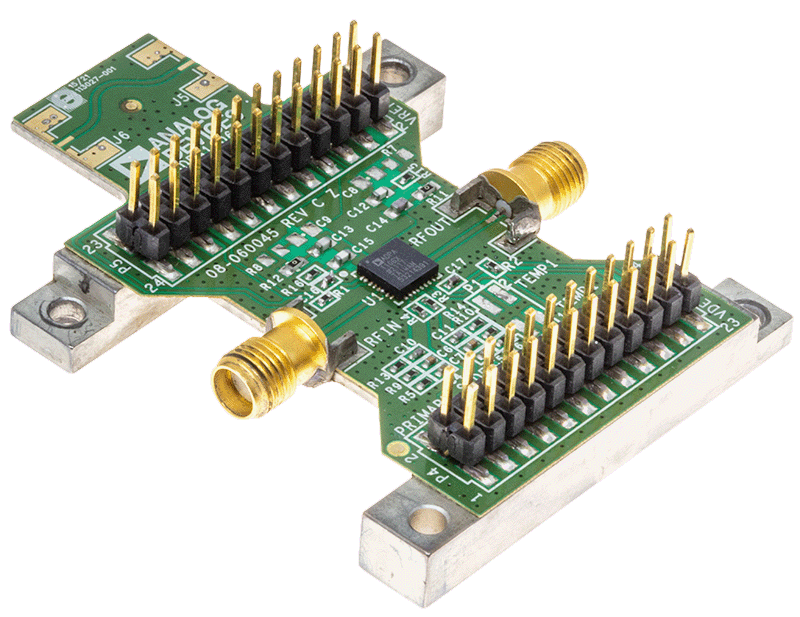

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5
ADPULSERPLUSEBZ

Pulser Plus Reference Design for GaN PA Biasing and Sequencing

Buy Now View Details

Features and Benefits

  • Complete Bias Control and Sequencing Solution for Pulsed GaN Radar Power Amplifiers
  • Pin Compatible with ADI's existing Pulser Board and with ADI's GaN Power Amplifier Evaluation Boards
  • Operation in Drain Pulsed Mode or Gate Pulsed Mode
  • Optional Crowbar Circuit for Fast Turn Off in Drain Pulsed Mode
  • Single 24 V to 50 V Power Supply with on-board Negative Gate Voltage Generation.
  • Drain Current Monitoring Circuit

Product Details

Pulser Plus is a reference design for biasing Gallium Nitride RF Power Amplifiers. It plugs directly into Analog Devices’ GaN PA evaluation boards such as ADPA1106 and ADPA1107. The only input signals required to control and operate the board are a power supply voltage between 24 V and 50V and a 0V/3V signal on the Drain Pulse Enable or Gate Pulse Enable digital inputs.

Pulser Plus was specifically designed to enable fast pulsing of GaN Radar Power Amplifiers. It can support RF pulses as short as 1us and with rise and fall times of less than 100 ns in both Drain Pulsed mode and Gate Pulsed Mode.
ADPULSERPLUSEBZ
Pulser Plus Reference Design for GaN PA Biasing and Sequencing
ADPULSERPLUSEBZ Angle View ADPULSERPLUSEBZ Bottom View ADPULSERPLUSEBZ Top View ADPULSERPLUSEBZ Pulser Plus Block Diagram ADPULSERPLUSEBZ Drain Pulsed Mode Block Diagam
