REF192

量产

2.5V精密、微功耗、低压差、低压基准电压源

数据手册 (Rev. L)

产品模型: 12

Viewing:

产品详情

初始精度：±2 mV（最大值）
温度系数：5 ppm/°C（最大值）
低电源电流：45 µA（最大值）
休眠模式：15 µA（最大值）

低压差
负载调整率：4 ppm/mA
线性调整率：4 ppm/V
高输出电流：30 mA
短路保护

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

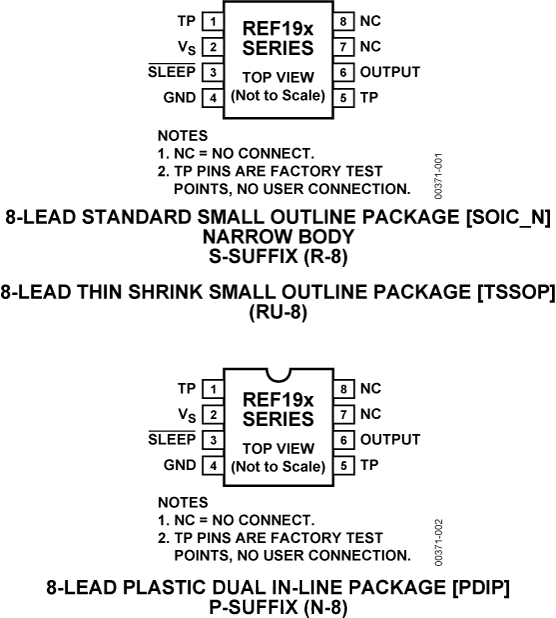

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
REF192ESZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192ESZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192ESZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192FSZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192FSZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192FSZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192GPZ	8-Lead PDIP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192GRUZ	8-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192GRUZ-REEL7	8-Lead TSSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192GSZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192GSZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
REF192GSZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN
未找到匹配项目
11月 2, 2012 - 12_0105 Halogen Free Material Change for Select SOIC Narrow and Wide Body Products Assembled at Amkor
		PCN12_0105_Form Material_Report Qualification Report Summary
REF192ESZ	量产
REF192ESZ-REEL	量产
REF192ESZ-REEL7	量产
REF192GSZ	量产
REF192GSZ-REEL	量产
REF192GSZ-REEL7	量产
8月 6, 2010 - 10_0187 REF19x Die Coat Change on SOIC models
		PCN10_0187_Form Material_Report Detailed Change Description Detailed Change Description Reliability Report
REF192ESZ	量产
REF192ESZ-REEL	量产
REF192ESZ-REEL7	量产
REF192FSZ	量产
REF192FSZ-REEL	量产
REF192FSZ-REEL7	量产
REF192GSZ	量产
REF192GSZ-REEL	量产
REF192GSZ-REEL7	量产
11月 23, 2010 - 10_0004 Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor
		PCN10_0004_Form Material_Report ADI0012 Reliability Report
REF192FSZ	量产
REF192FSZ-REEL	量产
REF192FSZ-REEL7	量产
11月 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
REF192GPZ	量产
REF192GRUZ	量产
REF192GRUZ-REEL7	量产
8月 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
REF192GPZ	量产
2月 11, 2011 - 10_0005 Halogen Free Material Change for TSSOP Products Assembled at Amkor
		PCN10_0005_Form Material_Report Reliability Report
REF192GRUZ	量产
REF192GRUZ-REEL7	量产
