LTP8800-1A

推荐新设计使用

具有PMBus接口的150A DC/DC μModule稳压器

数据手册 (Rev. D)
产品模型
1
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 高频下实现高效率
    • 高达87.0%效率（1MHz，54VIN至0.8VOUT时）
  • 符合PMBus标准的I2C串行接口
    • 监控电压、电流、温度和故障
    • 内部EEPROM故障日志记录
    • 数字可编程控制环路
    • 设置电压、电流限制、软启动/软停止、频率、同步和相位调整、电源良好、警告和故障
  • 宽输入电压范围：45V至65V
  • 输出电压范围：0.5V至1.1V
  • 针对45V至65VIN/0.8VOUT进行了优化
  • 最大直流输出误差±0.5%，带差分远程电压检测
  • 电流回读精度±3%
  • 多个μModule® IC可以并联且均流
  • 22mm × 24mm × 6.7mm表贴封装
LTP8800-1A
具有PMBus接口的150A DC/DC μModule稳压器

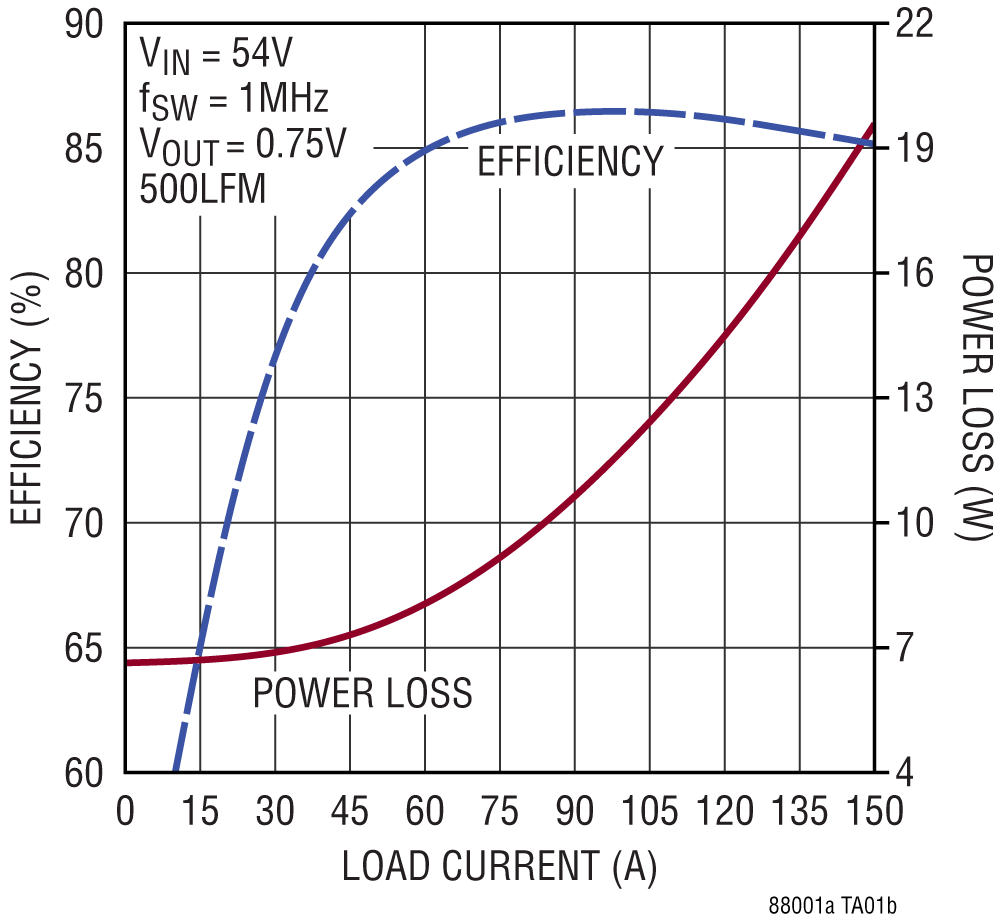

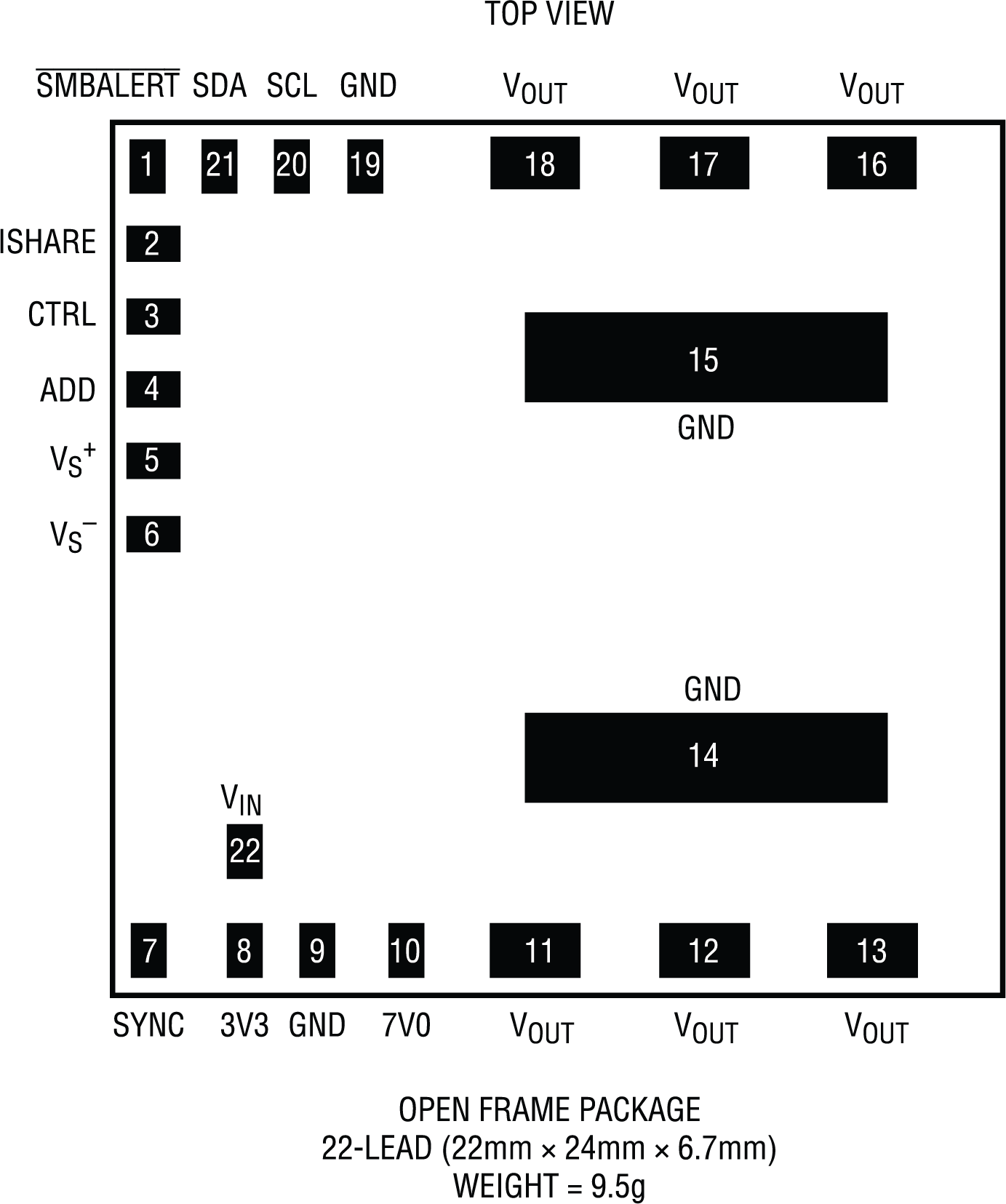

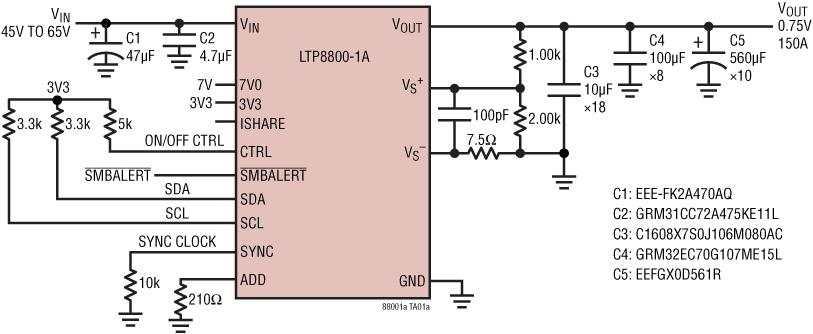

LTP8800-1A Application Circuit LTP8800-1A Performance Graph LTP8800-1A Pin Configuration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

工具及仿真模型

LTspice 1

LTpowerCAD

LTpowerCAD中提供以下器件的设计工具：

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
DC3190A-A

LTP8800-1A | 54V Input, High Current DC/DC Power μModule with PMBus Interface

立即购买 更多内容

产品详情

Demonstration circuit 3190A-A is a high current, high density, high efficiency open-frame μModule® regulator with 45V to 65V input range. The demo board has a LTP8800-1A μModule regulator which provides microprocessor 0.75V voltage from 54V power distribution architecture with digital power system management. The maximum output current for the demo board is 150A. Please see LTP8800-1A data sheet for more detailed information.

DC3190A-A powers up to default settings and produces power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay® onto your PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status.

GUI Download

The software can be downloaded from: LTpowerPlay

For more details and instructions of LTpowerPlay, please refer to LTpowerPlay GUI for LTP8800-1A Quick Start Guide.
DC3190A-A
LTP8800-1A | 54V Input, High Current DC/DC Power μModule with PMBus Interface

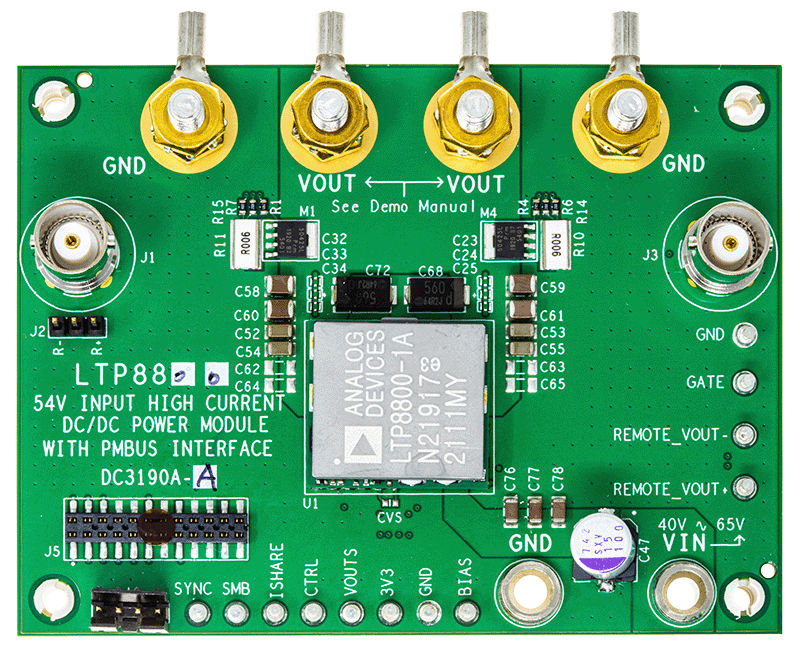

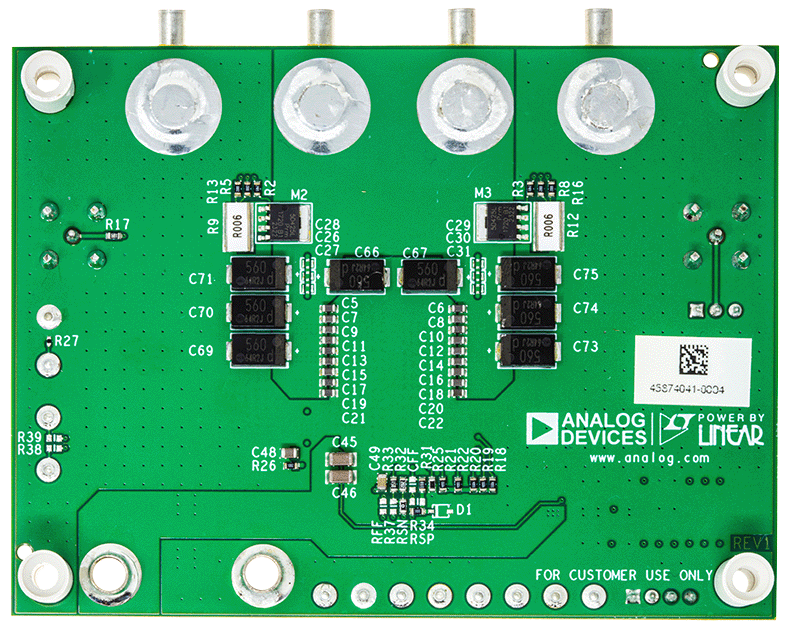

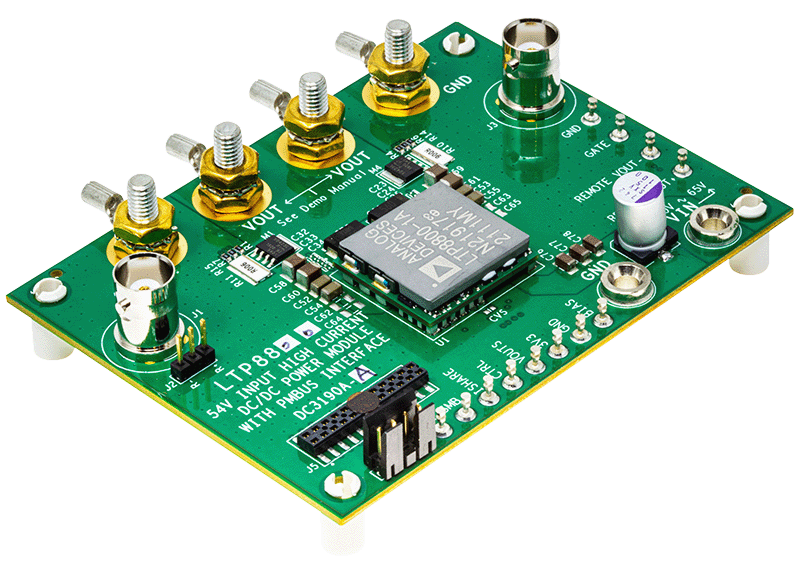

DC3190A-A Evaluation Board DC3190A-A Evaluation Board - Top View DC3190A-A Evaluation Board - Bottom View
