LTC2000A

量产

16 / 14 / 11 位、2.7Gsps DAC

数据手册
产品模型
6
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 在 50MHz fOUT 具有 80dBc SFDR
  • 在 DC 至 1080MHz fOUT 范围内具有 >68dBc SFDR
  • 可兼容 40mA 标称全标度、±1V 输出
  • 10mA 至 60mA 可调全标度电流范围
  • 单或双端口 DDR LVDS 和 DHSTL 接口
  • 低延迟 (对于单端口为 7.5 个周期，对于双端口为 11 个周期)
  • 在 DC 至 1000MHz fOUT 范围内具有 >78dBc 双音调互调失真 (IMD)
  • 在用于 65MHz fOUT 的 1MHz 偏移频率下具有 –156dBc/Hz 附加相位噪声
  • 170 引脚 (9mm x 15mm) BGA 封装
LTC2000A
16 / 14 / 11 位、2.7Gsps DAC

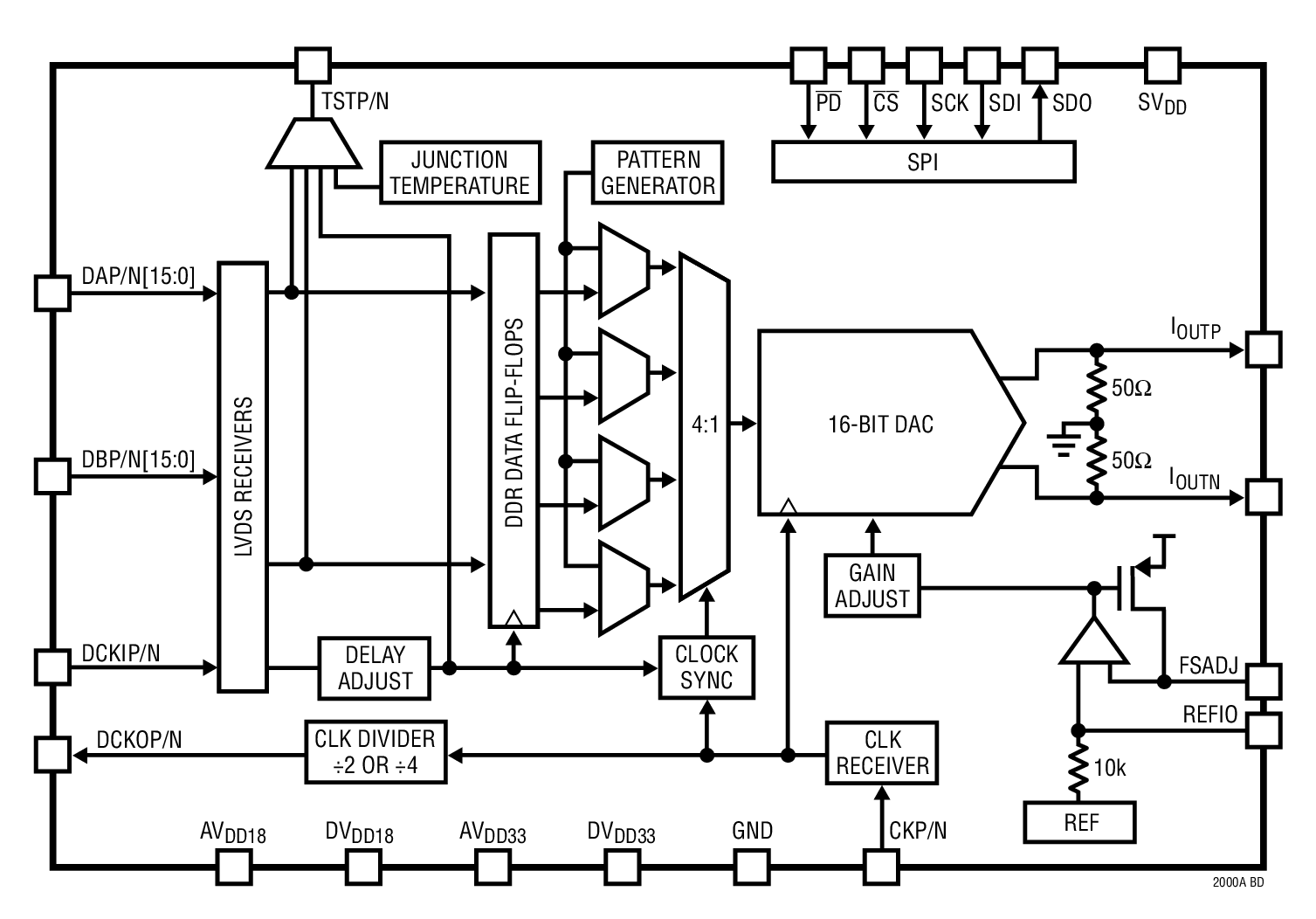

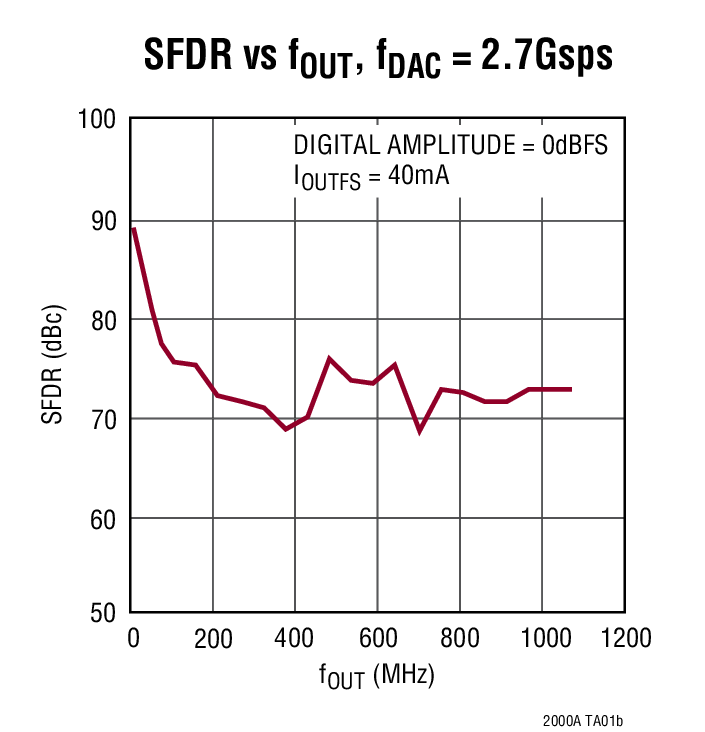

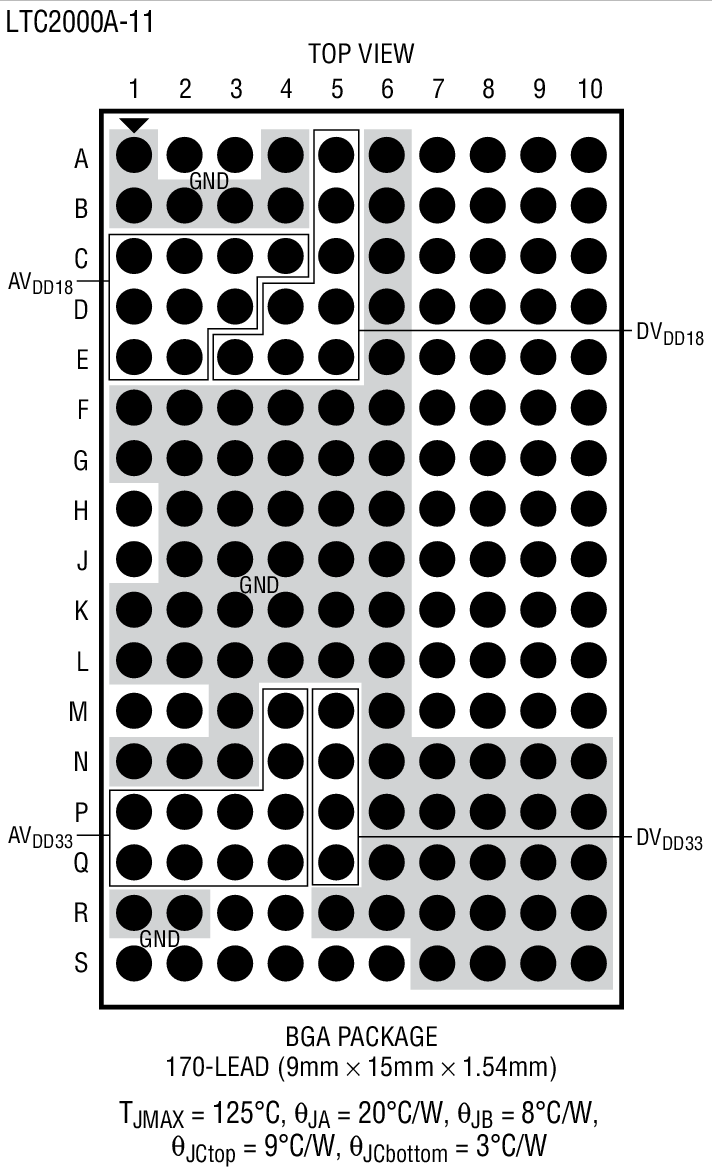

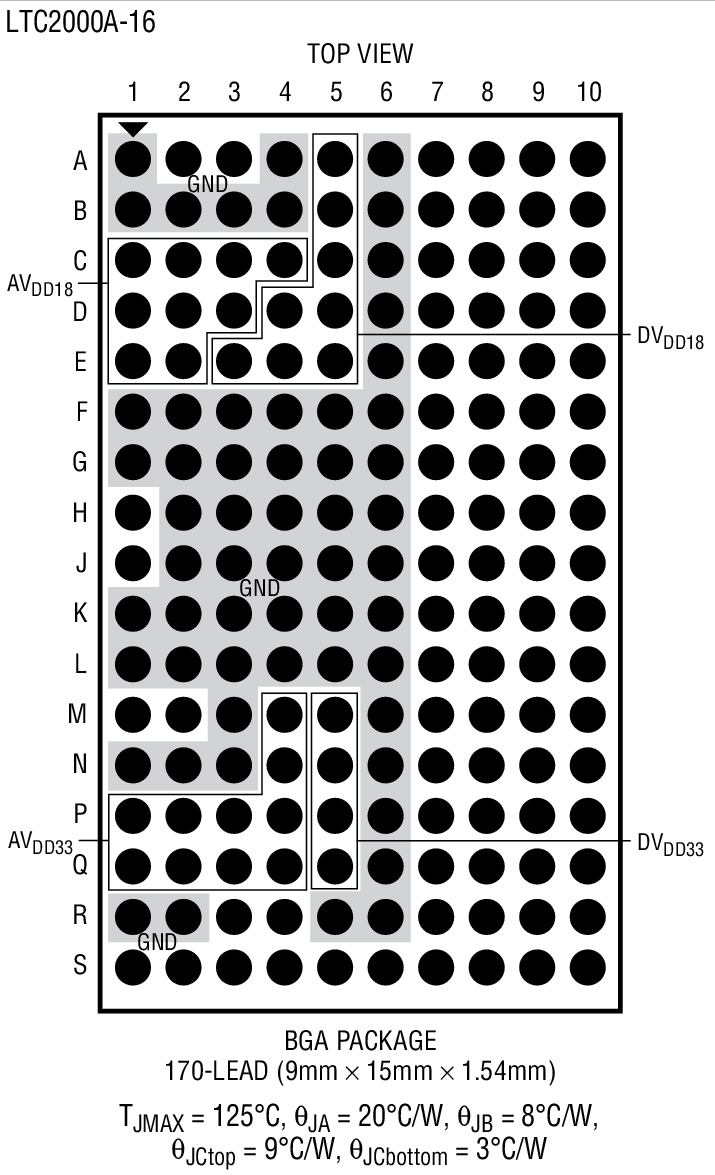

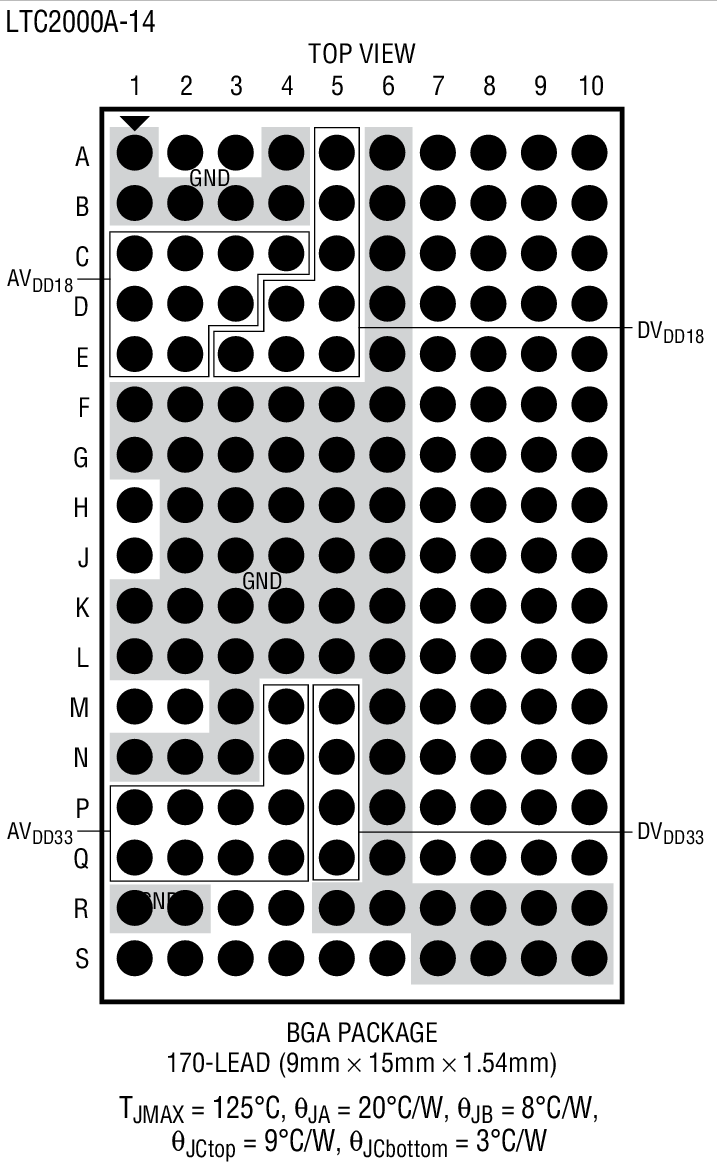

SFDR vs fOUT, fDAC = 2.7Gsps Product Package 1 Product Package 2 Product Package 3
