预发布8V, 12A, 2-Phase Low IQ Synchronous Boost Converter
- 产品模型
- 1
Viewing:
产品详情
- Input Voltage Range: 2.5V to 5.5V
- Output Voltage Programmable Up to 8V
- 2-Phase Operation Reduces Required Input and Output Capacitance and Power Supply Induced Noise
- Synchronous Operation for High Efficiency and Reduced Heat Dissipation
- Stage SheddingTM and Optional Burst Mode® Operation for High Efficiency at Light Load
- Low VIN Pin Quiescent Current:
- 0.5µA in Shutdown
- 15µA in Burst Mode Operation
- Integrated 8V/6A Synchronous Power Switches
- Adjustable and Synchronizable: 300kHz to 4MHz
- Burst Mode or Forced Continuous Operation at Light Load
- Accurate 1V Enable Pin Threshold

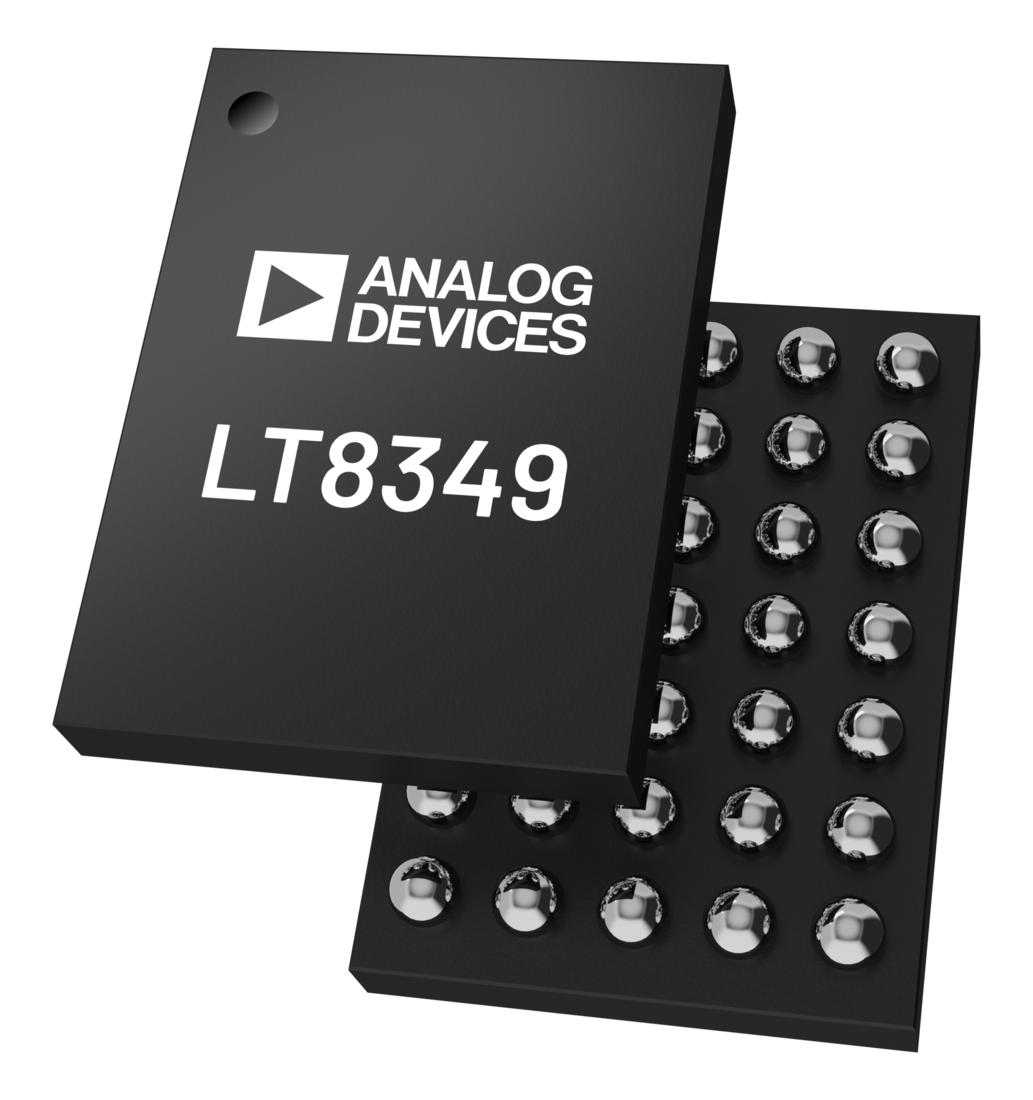

- Small 1.9mm x 2.6mm WLCSP Package
The LT8349 is a 2-phase single output synchronous boost converter that drives two internal N-Channel power MOSFET stages out-of-phase. Multiphase operation reduces input and output capacitor requirements and allows the use of smaller inductors than the single-phase equivalent. Synchronous rectification increases efficiency, reduces power losses, and eases thermal requirements, enabling high power boost applications.
The LT8349 features Stage Shedding and selectable Burst Mode operation at light load conditions allowing high efficiency over a wide range of load. It features optional spread spectrum frequency modulation (SSFM) to minimize EMI emissions.
The LT8349 integrates 8V/6A power switches, operating at a fixed switching frequency programmable between 300kHz and 4MHz and synchronizable to an external clock. The LT8349 features output soft-start and output overvoltage lockout.
APPLICATIONS
-
Handheld and Industrial Power Supplies
参考资料
数据手册 1
用户手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| LT8349ACBZ-R7 | CHIPS W/SOLDER BUMPS/WLCSP |
这是最新版本的数据手册
评估套件

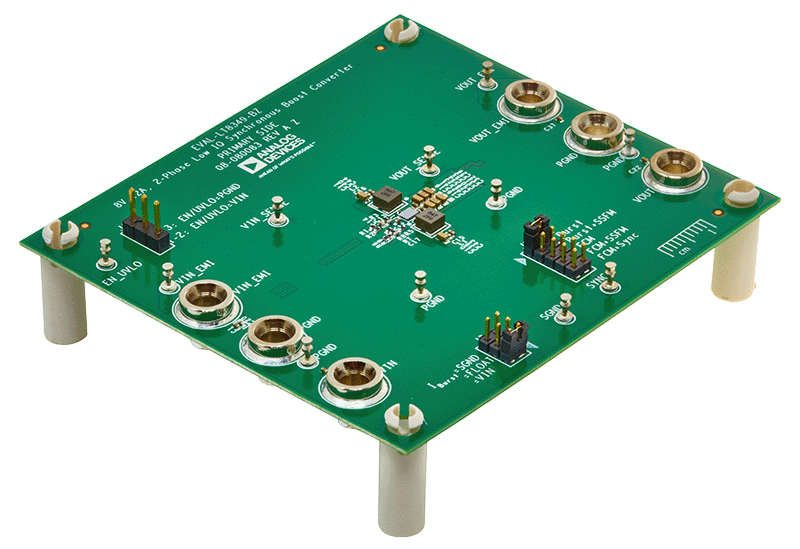

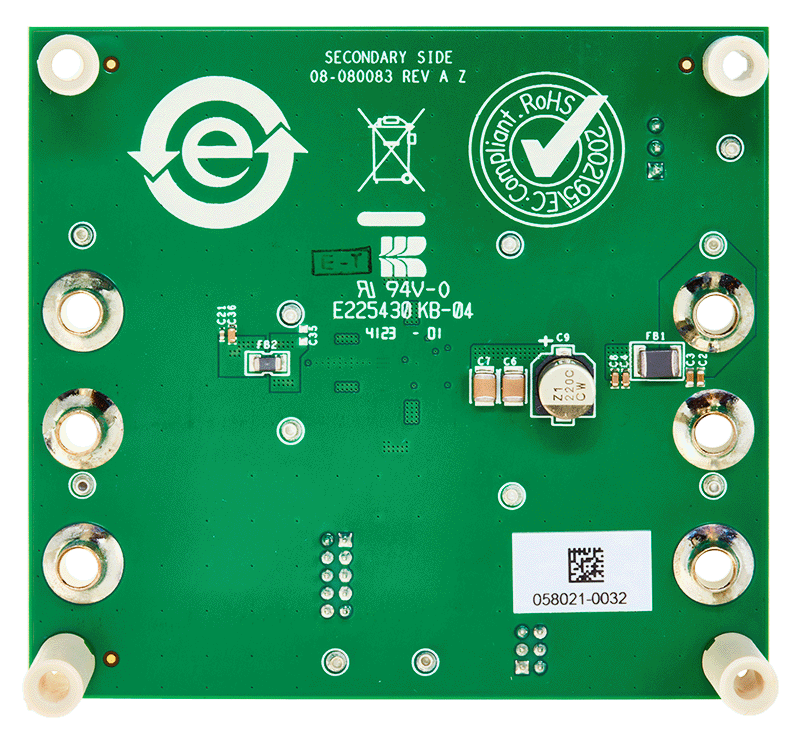

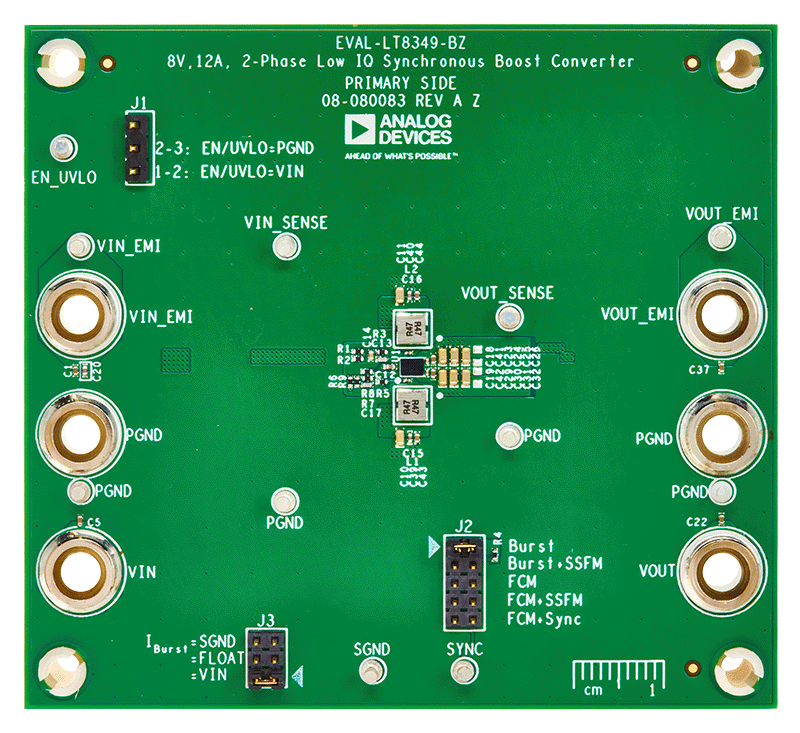

评估：LT8349 在 6V 输出电压应用中
