QBL4208
RECOMMENDED FOR NEW DESIGNSNEMA 17 BLDC motor 6Ncm, 8 poles, 4000RPM
Part Details
- Hall Effect Angle: 120° electric angle
- Shaft run out: 0,025 mm
- Insulation Class: B
- Radial Play: 0,02 mm 450G load
- Max Radial Force: 28N (10mm from flange)
- Max Axial Force: 10
- Dielectric Strength: 500 VDC For One Minute
- Insulation Resistance: 100M Ohm min. 500VDC
- Recommended Ambient Temp.: -20 to +40°C
- Bearing: Brushless motors fitted with ball bearings
- Coil windings in delta topology
- Variants with encoder: 1024 lines/ 4096 counts
Qmot 42mm 3-phase BDLC motors are quality motors with digital hall output for universal use. They feature a long life due to ball bearings and no wearing out parts. These BLDC motors give a good fit to the ADI Trinamic family of medium and high current BLDC motor modules.
Variants include mall size optical incremental encoder kit. It comes with a resolution up to 1024 lines (4096 counts). ADI Trinamic’s B LDC motors are quality motors for universal use. They feature a long life due to ball bearings and no wearing out parts.
Technical Details

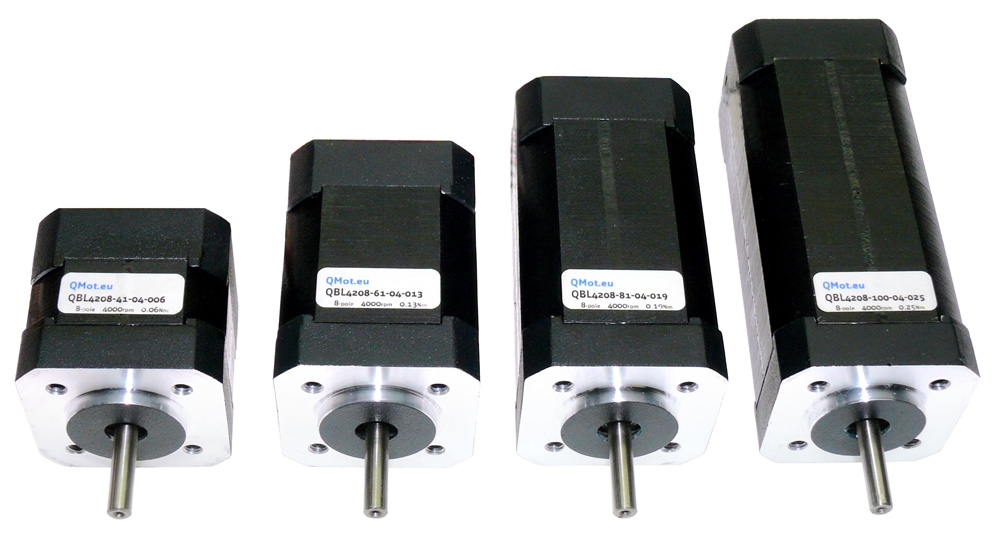

| QBL4208-41-04-006 | QBL4208-61-04-013 | QBL4208-81-04-019 | QBL4208-100-04-025 | |
| Status | Active | Active | Active | Active |
| Flange | 42mm | 42mm | 42mm | 42mm |
| Torque | 6.25Ncm | 12.5Ncm | 18.5Ncm | 25Ncm |
| Phase Current | 1.78A | 3.48A | 5.14A | 6.94A |
| Pole Count | 8 | 8 | 8 | 8 |
| Rated Speed | 4000rpm | 4000rpm | 4000rpm | 4000rpm |
| Width | 42mm | 42mm | 42mm | 42mm |
| Height | 42mm | 42mm | 42mm | 42mm |
| Length | 41mm | 61mm | 81mm | 100mm |
| Weight | 300g | 450g | 650g | 800g |
| Flange NEMA | 17 | 17 | 17 |
Documentation
Data Sheet 2
Package Outline Drawing 6
This is the most up-to-date revision of the Data Sheet.
Hardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Motor Drivers & Motion Controllers 1 | ||
| TMCM-1640 | RECOMMENDED FOR NEW DESIGNS | Motor mountable Servo drive for 3-phase BLDC motors 12 to 28.5V, 5A, with RS485 Interface |
