PD-1210
PRODUCTIONNEMA8 / 20mm flange size stepper motor and the TMCM-1210 controller / driver
Part Details
- CoolStep™
- SpreadCycle™
- StallGuard2™
- StealthChop™

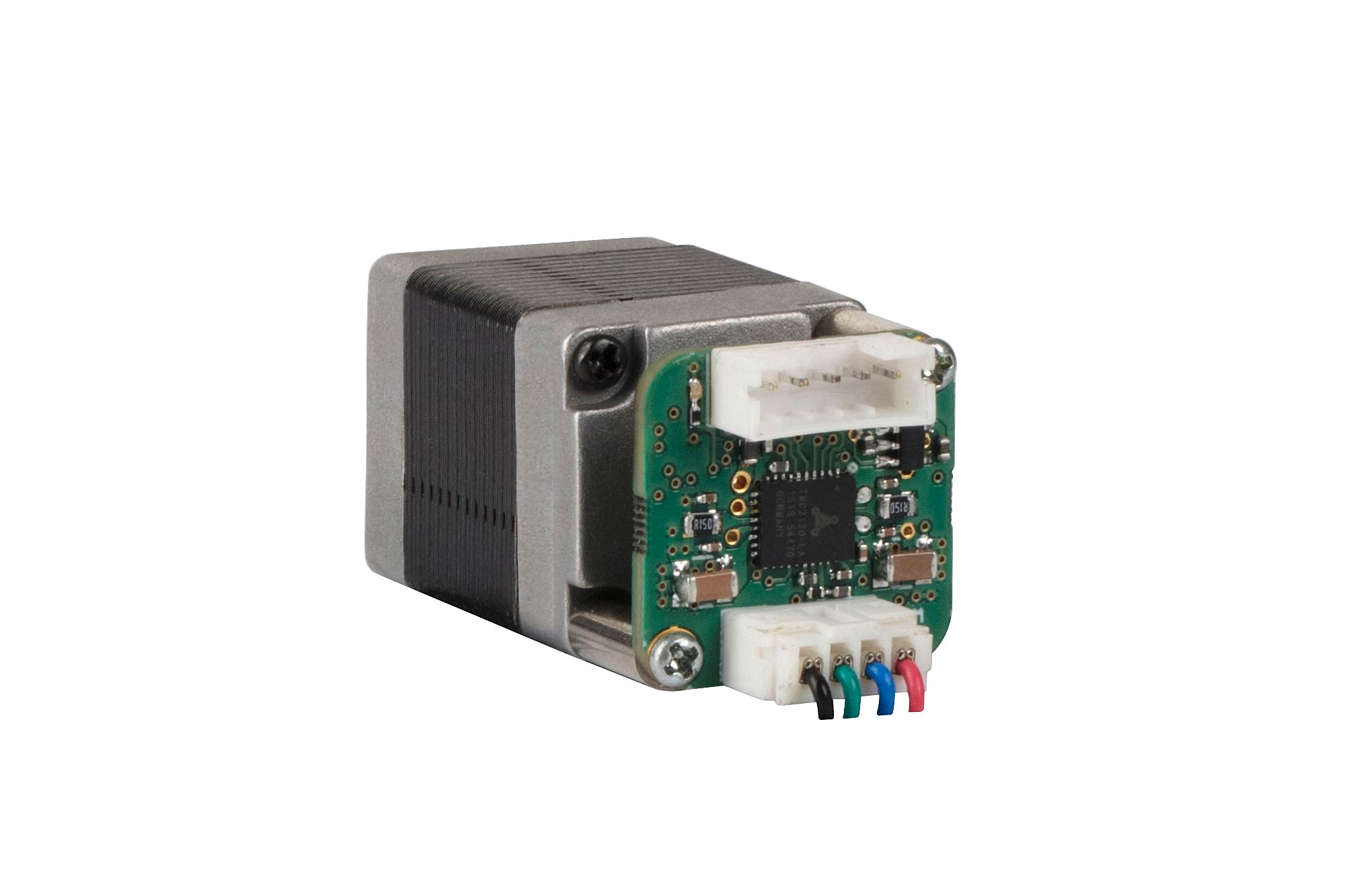

The PANdrive™ PD20-1-1210 is currently our smallest and most compact full mechatronic solution including a NEMA8 / 20mm flange size stepper motor, the TMCM-1210 controller / driver electronics and hall sensor based encoder.It can be controlled via RS485 and offers one digital input for easy homing / intial search for reference position and supports linear and SixPoint™ ramps.
All you need to get started is a power supply and Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
Documentation
User Guide 1
Software Manual 1
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| TMCM-1210 | RECOMMENDED FOR NEW DESIGNS | Motor mountable stepper motor controller/driver module 7 to 30V, 0.6A, 256 µSteps, SixPoint ramp controller with RS485 Interface, StallGuard, CoolStep, StealthChop |
Tools & Simulations
3-D Design Model 1
