MAX1618
NOT RECOMMENDED FOR NEW DESIGNSRemote Temperature Sensor with SMBus Serial Interface
Industry's Smallest Remote Diode Temperature Sensor - Measurement and Protection in a uMAX-10
- Part Models
- 2
- 1ku List Price
- price unavailable
Part Details
- Single Channel: Measures Remote CPU Temperature
- No Calibration Required
- SMBus 2-Wire Serial Interface
- Programmable Under/Overtemperature Alarms
- Overtemperature Output for Fan Control (Thermostat Mode)
- Supports SMBus Alert Response Accuracy
- ±3°C (+60°C to +100°C)
- ±5°C (-55°C to +120°C)
- 3°A (typ) Standby Supply Current
- 900°A (max) Supply Current in Autoconvert Mode
- +3V to +5.5V Supply Range
- Small 10-Pin °MAX Package

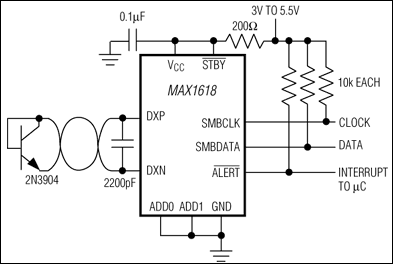

The MAX1618 precise digital thermometer reports the temperature of a remote sensor. The remote sensor is a diode-connected transistor-typically a low-cost, easily mounted 2N3904 NPN type-that replaces conventional thermistors or thermocouples. Remote accuracy is ±3°C for multiple transistor manufacturers, with no calibration needed. The MAX1618 can also measure the die temperature of other ICs, such as microprocessors, that contain an on-chip, diode-connected transistor.
The 2-wire serial interface accepts standard System Management Bus (SMBus™) Write Byte, Read Byte, Send Byte, and Receive Byte commands to program the alarm thresholds and to read temperature data. The data format is 7 bits plus sign, with each bit corresponding to 1°C, in two's complement format. Measurements can be done automatically and autonomously, with the 16Hz conversion rate or programmed to operate in a single-shot mode.
The thermostat mode configures the active-low ALERT output as an interrupt or as a temperature reset that remains active only while the temperature is above the maximum temperature limit or below the minimum temperature limit. The active-low ALERT output polarity in thermostat mode can be configured for active high or active low. Fan control is implemented using this active-low ALERT output.
The MAX1618 is available in a small (1.1mm high) 10-pin µMAX package.
Applications
- Central Office Telecom Equipment
- Computers: Desktop, Workstation, Server
- Industrial Controls
- LAN Servers
- Multichip Modules
- Smart Battery Packs/Chargers
- Test and Measurement Equipment
