ADUM7702
RECOMMENDED FOR NEW DESIGNS16-Bit, Isolated, Sigma-Delta Modulator
- Part Models
- 6
- 1ku List Price
- Starting From $4.83
Part Details
- 5 MHz to 21 MHz master clock input frequency
- Offset drift vs. temperature: ±0.25 μV/°C
- SNR: 82 dB typical
- 16 bits, no missing codes
- Full-scale analog input voltage range: ±64 mV
- ENOB: 13 bits typical
- IDD1: 10 mA maximum
- On-board digital isolator
- Operating temperature range: −40°C to +125°C
- High isolation common-mode transient immunity: 150 kV/μs minimum, VDD2 = 3.3 V
- Wide-body SOICs

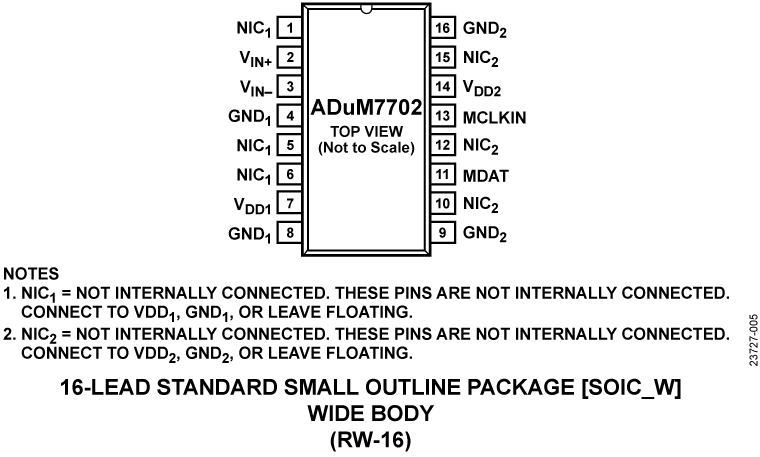

- 16-lead SOIC_W

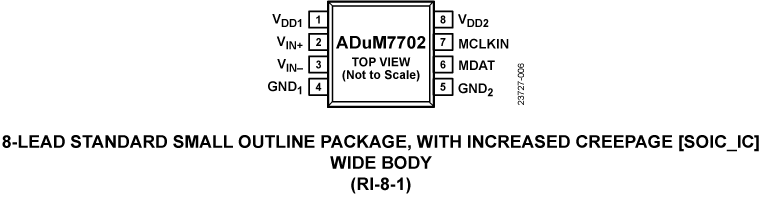

- 8-lead SOIC_IC with increased creepage
- Safety and regulatory approvals
- UL recognition
- 5700 V rms for 1 minute per UL 1577
- UL recognition
- CSA Component Acceptance Notice 5A
- VDE Certificate of Conformity
- DIN V VDE V 0884-10: VIORM = 1270 VPEAK
- DIN V VDE V 0884-11: VIORM = 1060 VPEAK (pending)

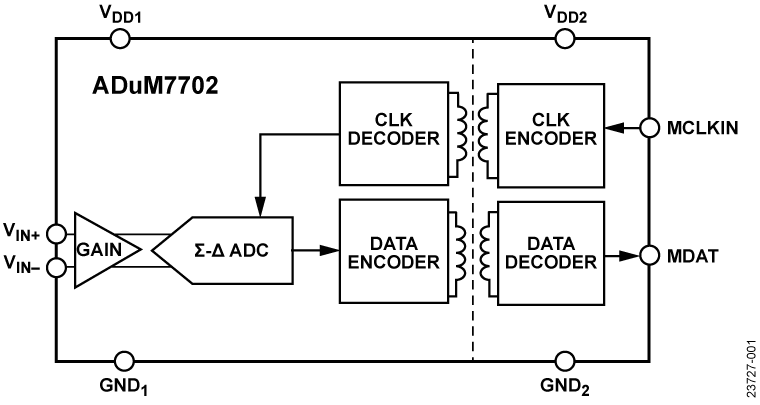

The ADuM7702 is a high performance, second-order, Σ-Δ modulator that converts an analog input signal to a high speed, single-bit data stream, with on-chip digital isolation based on Analog Devices, Inc., iCoupler® technology. The device operates from a 4.5 V to 5.5 V power supply range (VDD1) and accepts a pseudo differential input signal of ±50 mV (±64 mV full-scale). The pseudo differential input is ideally suited to shunt voltage monitoring in high voltage applications where galvanic isolation is required.
The analog input is continuously sampled by a high performance analog modulator and converted to a ones density digital output stream with a data rate of up to 21 MHz. The original information can be reconstructed with an appropriate sinc3 digital filter to achieve an 82 dB signal-to-noise ratio (SNR) at 78.1 kSPS with a 256 decimation rate and a 20 MHz master clock. The serial input and output operates from a 5 V or a 3 V supply (VDD2).
The serial interface is digitally isolated. High speed complementary metal-oxide semiconductor (CMOS) technology, combined with monolithic transformer technology, results in on-chip isolation providing outstanding performance characteristics, superior to alternatives such as optocoupler devices. The ADuM7702 is available in both a 16-lead SOIC_W and an 8-lead SOIC_IC and has an operating temperature range of −40°C to +125°C.
Applications
- Shunt current monitoring
- AC motor controls
- Power and solar inverters
- Wind turbine inverters
- Analog-to-digital and optoisolator replacement
Documentation
Data Sheet 1
User Guide 1
Technical Articles 1
Safety and Regulatory Compliance 1
Solutions Bulletin & Brochure 1
Safety and Regulatory Compliance 1
Product Selection Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADUM7702-8BRIZ | 8-Lead SOIC (Increased Creepage) | ||
| ADUM7702-8BRIZ-RL | 8-Lead SOIC (Increased Creepage) | ||
| ADUM7702-8BRIZ-RL7 | 8-Lead SOIC (Increased Creepage) | ||
| ADUM7702BRWZ | 16-Lead SOIC Wide | ||
| ADUM7702BRWZ-RL | 16-Lead SOIC Wide | ||
| ADUM7702BRWZ-RL7 | 16-Lead SOIC Wide |
This is the most up-to-date revision of the Data Sheet.
Hardware Ecosystem
Tools & Simulations
LTpowerCAD
Design tools for the following parts are available in LTpowerCAD:
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Evaluation Kits

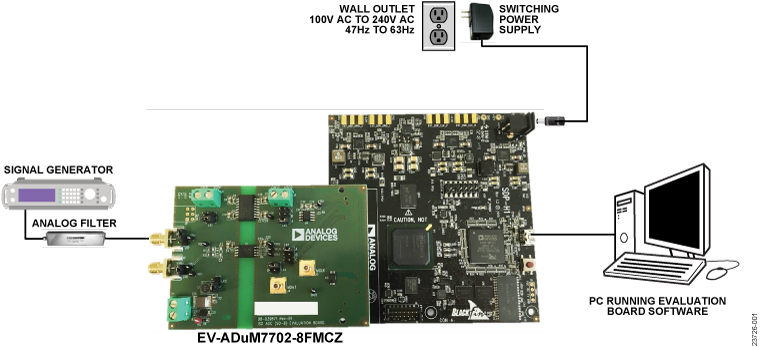

ADuM7702 Evaluation Board
