ADGM1121
RECOMMENDED FOR NEW DESIGNS0 Hz/DC to 18 GHz, DPDT, MEMS Switch
Part Details
- DC to 18 GHz frequency range
- High bit rate capability up to 64 Gbps
- Low insertion loss:
- 0.5 dB (typical) at 8 GHz
- 1.0 dB (typical) at 16 GHz
- High Input IIP3: 73 dBm (typical)
- High RF power handling: 33 dBm (maximum)
- On-resistance: 1.9 Ω (typical)
- High DC current handling: 200 mA
- High switch cycle count: 100 million cycles (minimum)
- Fast switching time: 200 μs TON (typical)
- Integrated 3.3 V driver for simple control with parallel interface and SPI
- Space-saving integrated passive including decoupling and shunt resistors
- Small 5 mm × 4 mm × 1 mm, 24-lead plastic package
- Temperature range: −40°C to +85°C

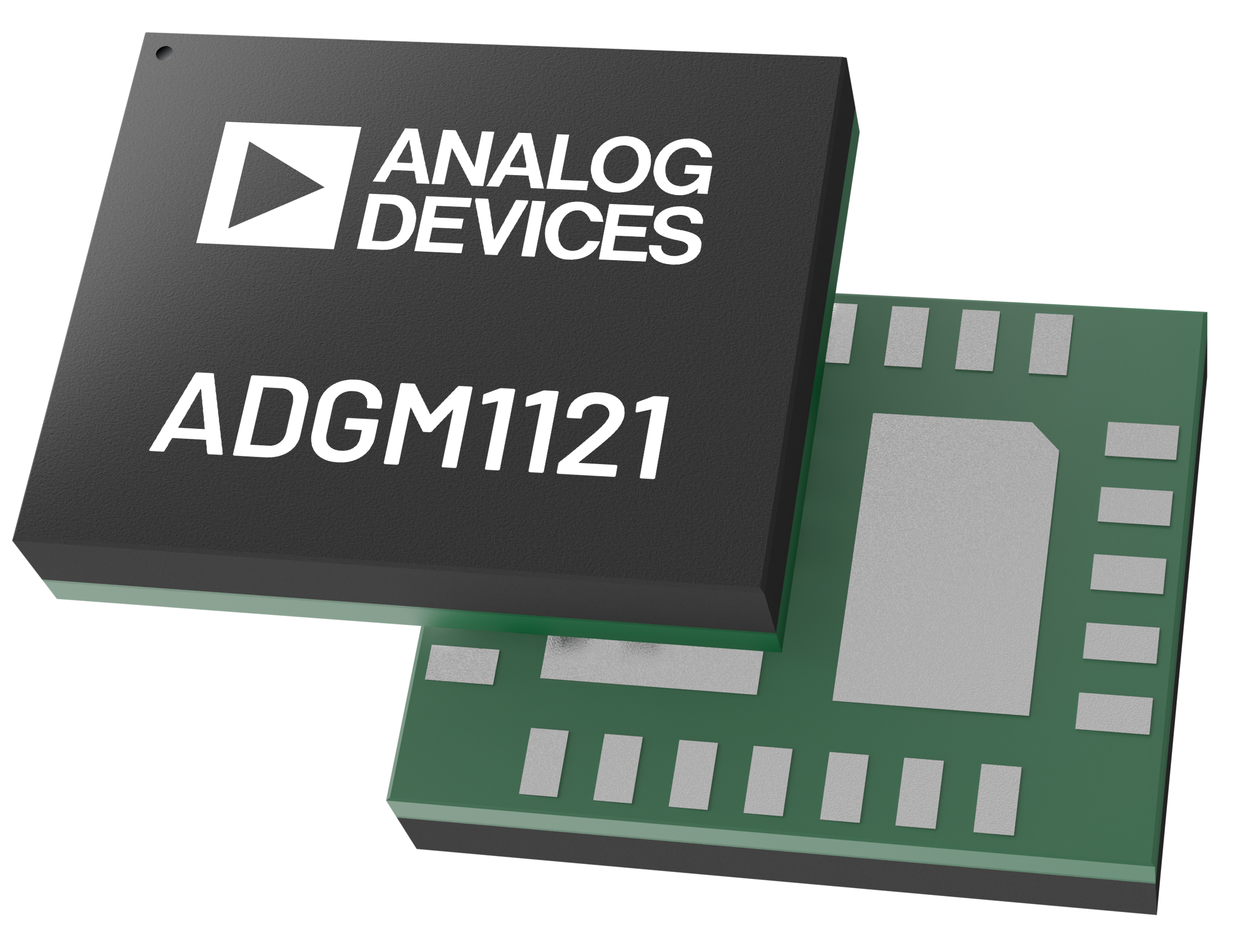

The ADGM1121 is a wideband, double-pole, double-throw (DPDT) switch, fabricated using Analog Devices' microelectromechanical system (MEMS) switch technology. This technology enables a small form factor, wide RF bandwidth, highly linear and low insertion loss switch that is operational down to 0 Hz/DC, making it an ideal solution for a wide range of RF and precision equipment switching needs.
An integrated driver chip generates a high voltage to electrostatically actuate switch that can be controlled by a parallel interface and a serial peripheral interface (SPI). All switches are independently controllable.
The device is packaged in a 24-lead, 5 mm × 4 mm × 1 mm land grid array (LGA) package. To ensure optimum operation of the ADGM1121, see the Critical Operational Requirements section of the data sheet.
The on-resistance (RON) performance of the ADGM1121 is affected by part-to-part variation, channel-to-channel variation, cycle actuations, settling time post turn on, bias voltage, and temperature changes.
APPLICATIONS
- ATE load and probe boards
- DC with high speed loopback testing
- High speed SerDes, PICe Gen4/5, USB4, PAM4
- Relay replacements
- Reconfigurable filters/attenuators
- Military and microwave radios
- Cellular infrastructure: 5G mm wave
Documentation
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Automatic Test Equipment 1 | ||
| AD5522 | PRODUCTION | Quad Parametric Measurement Unit With Integrated 16-Bit Level Setting DACs |
| Linear Regulators 7 | ||
| ADP150 | PRODUCTION | Ultralow Noise, 150 mA CMOS Linear Regulator |
| ADP7112 | RECOMMENDED FOR NEW DESIGNS | 20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator |
| ADP7118 | RECOMMENDED FOR NEW DESIGNS | 20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator |
| LT3042 | RECOMMENDED FOR NEW DESIGNS | 20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator |
| LT1962 | RECOMMENDED FOR NEW DESIGNS | 300mA, Low Noise, Micropower LDO Regulators |
| ADP7142 | RECOMMENDED FOR NEW DESIGNS | 40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator |
| LT3045-1 | RECOMMENDED FOR NEW DESIGNS | 20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator with VIOC Control |
| MEMS Switches 3 | ||
| ADGM1144 | RECOMMENDED FOR NEW DESIGNS | 0 Hz/DC to 18 GHz, SP4T, MEMS Switch |
| ADGM1304 | RECOMMENDED FOR NEW DESIGNS | 0 Hz/dc to 14 GHz, Single-Pole, Four-Throw MEMS Switch with Integrated Driver |
| ADGM1004 | RECOMMENDED FOR NEW DESIGNS | 0 Hz/DC to 13 GHz, 2.5 kV HBM ESD, SP4T, MEMS Switch with Integrated Driver |
