AD1580
PRODUCTION1.2 V Micropower, Precision Shunt Voltage Reference
- Part Models
- 4
- 1ku List Price
- Starting From $0.66
Part Details
- Wide operating range: 50 µA to 10 mA
- Initial accuracy: ±0.1% maximum
- Temperature drift: ±50 ppm/°C maximum
- Output impedance: 0.5 Ω maximum
- Wideband noise (10 Hz to 10 kHz): 20 µV rms
- Operating temperature range: –40°C to +85°C
- High ESD rating: 4 kV human body model, 400 V machine model

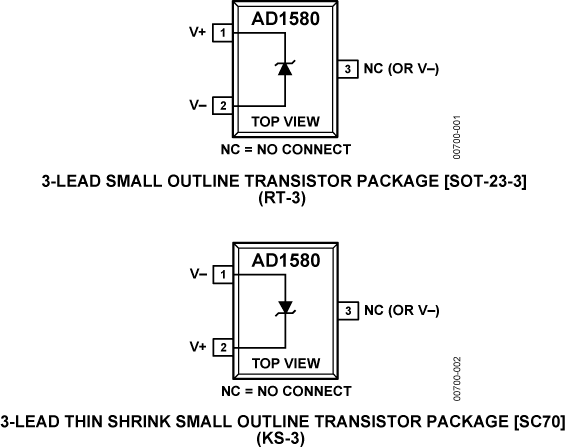

- Compact, surface-mount SOT-23 and SC70 packages
The AD1580 is a low cost, 2-terminal (shunt), precision band gap reference. It provides an accurate 1.225 V output for input currents between 50 μA and 10 mA.
The superior accuracy and stability of the AD1580 is made possible by the precise matching and thermal tracking of on-chip components. Proprietary curvature correction design techniques have been used to minimize the nonlinearities in the voltage output temperature characteristics. The AD1580 is stable with any value of capacitive load.
The low minimum operating current makes the AD1580 ideal for use in battery-powered 3 V or 5 V systems. However, the wide operating current range means that the AD1580 is extremely versatile and suitable for use in a wide variety of high current applications.
The AD1580 is available in two grades, A and B, both of which are provided in the SOT-23 and SC70 packages, the smallest surface-mount packages available. Both grades are specified over the industrial temperature range of −40°C to +85°C.
APPLICATIONS
- Portable, battery-powered equipment
Cellular phones, notebook computers, PDAs, GPSs, and DMMs - Computer workstations
- Suitable for use with a wide range of video RAMDACs
- Smart industrial transmitters
- PCMCIA cards
- Automotive
- 3 V/5 V, 8-bit to 12-bit data converters
Documentation
Data Sheet 1
Frequently Asked Question 1
Analog Dialogue 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD1580ARTZ-REEL7 | 3-Lead SOT-23 | ||
| AD1580BKSZ-REEL7 | 3-Lead SC70 | ||
| AD1580BRTZ-R2 | 3-Lead SOT-23 | ||
| AD1580BRTZ-REEL7 | 3-Lead SOT-23 |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
| No Match Found | ||
|
Oct 11, 2022 - 22_0253 Addition of UTAC Thailand as an Alternate Assembly Site for SOT23, SC70 and TSOT Packages/Devices |
||
| AD1580ARTZ-REEL7 | PRODUCTION | |
| AD1580BRTZ-REEL7 | PRODUCTION | |
|
Feb 4, 2010 - 10_0009 Halogen Free Material Change for SOT_23 Products |
||
| AD1580ARTZ-REEL7 | PRODUCTION | |
| AD1580BRTZ-REEL7 | PRODUCTION | |
|
Sep 9, 2009 - 07_0083 Polyimide Change |
||
| AD1580ARTZ-REEL7 | PRODUCTION | |
| AD1580BKSZ-REEL7 | PRODUCTION | |
| AD1580BRTZ-REEL7 | PRODUCTION | |
