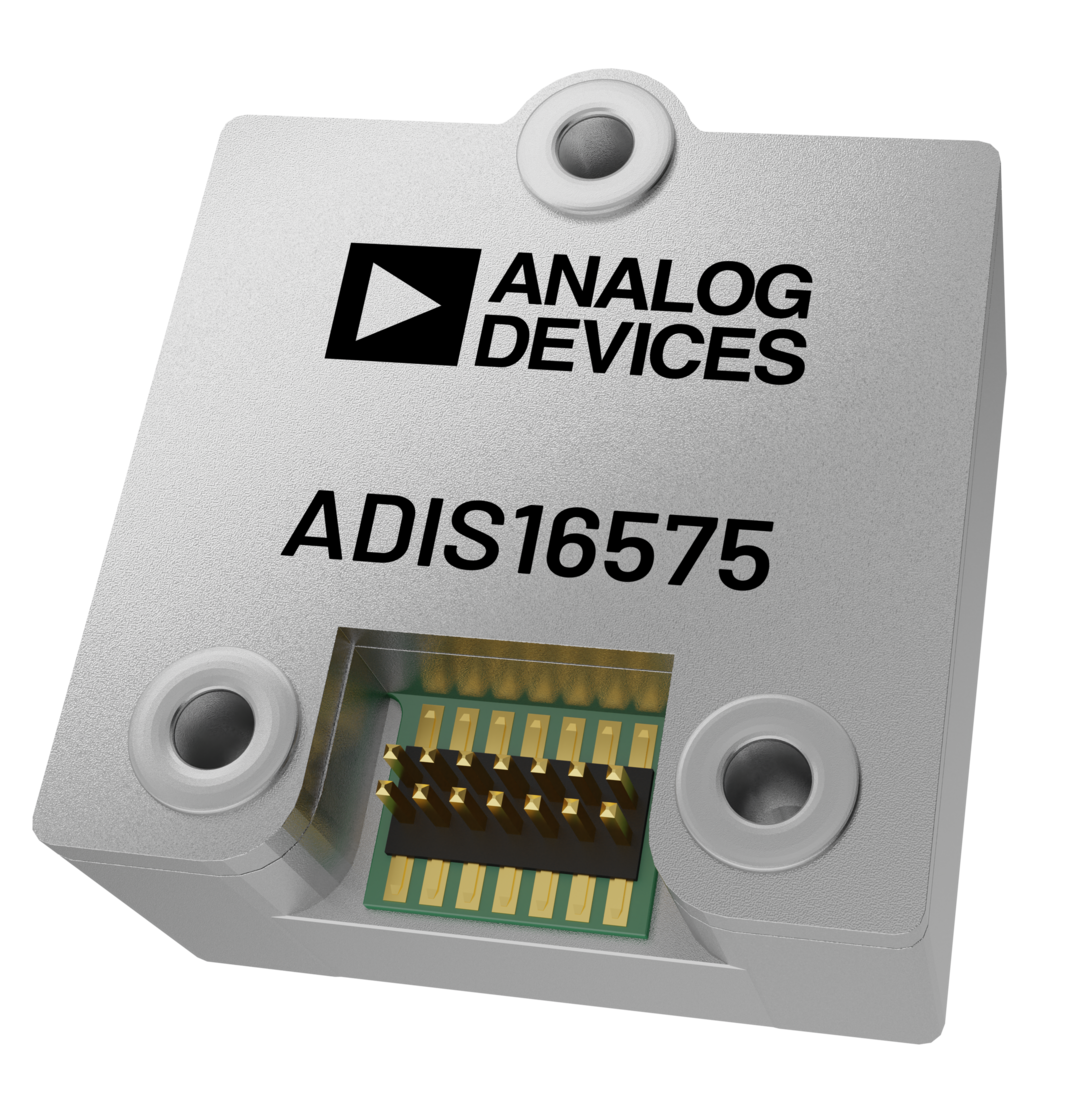

ADIS16575

Precision MEMS IMU Module

Data Sheet (Rev. 0)

Viewing:

Part Details

Triaxial digital angular rate (gyroscope) sensing
- ±450°/sec and ±2000°/sec range options
- 2.0°/hr in-run bias stability (±450°/sec range)
- 0.2°/√hr angular random walk (±450°/sec range)
- ±0.05° axis to axis misalignment error
Triaxial digital accelerometer sensing
- ±8 g Full Scale Range
- 2.9 μg in-run bias stability
Triaxial delta angle and delta velocity outputs
Factory-calibrated sensitivity, bias, and axial alignment
- Calibration temperature range: −40°C to +85°C
SPI-compatible data communications

Programmable operation and control
- Automatic and manual bias correction controls
- Data ready indicator for synchronous data acquisition
- External synchronization of data sampling/processing
- On-demand self test of inertial sensors
- On-demand self test of flash memory
- Continuous real-time health monitoring of SRAM and sensors
- FIFO, 512 samples, up to 4 kHz sample rate
Single-supply operation (VDD): 3.0 V to 3.6 V
2000 g mechanical shock survivability
Operating temperature range: −40°C to +105°C

Documentation

Data Sheet 1

ADIS16575/ADIS16576/ADIS16577: Precision MEMS IMU Module Data Sheet (Rev.0) 10/31/2024

User Guide 1

UG-2268: ADIS16IMU5/PCBZ MEMS IMU Breakout Board (Rev.0) 10/31/2024

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 2

Can't find the software or driver you need?

Evaluation Kits

ADIS16IMU5/PCBZ MEMS IMU Breakout Board

Buy Now View Details

Features and Benefits

Breakout board for ADIS16575, ADIS16576, and ADIS16577
Compatible with ADIS16460, ADIS16465, and ADIS16467
Easy prototyping interface for SPI-compatible processor platforms
Dual-row, 16-pin header for simple 1 mm ribbon cable connections
PC Windows connection with EVAL-ADIS-FX3
Four mounting holes for secure attachment
Optimized layout for high signal integrity
Includes necessary setup hardware (ribbon cable, screws, washers, nuts, and spacers)

Product Details

The ADIS16IMU5/PCBZ breakout board offers a straightforward method for developing a prototype connection between various Analog Devices, Inc., inertial measurement units (IMUs) and serial peripheral interface (SPI)-compatible embedded processor platforms. The ADIS16IMU5/PCBZ also provides a convenient method for connecting the same microelectromechanical systems (MEMS) IMUs to the EVAL-ADIS-FX3 for PC Windows^®-based data acquisition and configuration. For a complete list of supported IMUs, refer to the Compatible-MEMS IMUs section.

Resources

UG-2268: ADIS16IMU5/PCBZ MEMS IMU Breakout Board (Rev.0)
10/31/2024

IMU to Raspberry Pi Adaptor Board

Buy Now View Details

Features and Benefits

Simplifies software and application prototyping of IMU’s on Raspberry Pi Platform
- Direct mounting for software development
- Ribbon cable mounting for application testing and verification
Connects to ADIS16IMU1/PCBZ and ADIS16IMU4/PCBZ compatible IMU devices
Connectable to Raspberry Pi 3B+ and 4 through the 40pin GPIO connector

Product Details

This adaptor board allows for easy plug and play connection of Analog Devices Inertial Measurement Unit (IMU) devices to the Raspberry Pi platform, providing application and software development.

There are two ways in which to connect your IMU to this adaptor board.

Direct board mounting using the screws and mounting locations provided.
Mount the IMU to a separate ADIS16IMU1/PCBZ or ADIS16IMU4/PCBZ breakout board and use the flexible 16-position ribbon cable to the EVAL-ADISIMU1-RPIZ.

This helps both software development as well as enabling real world application verification with the ability to physically move the sensor.

Resources

EVAL-ADISIMU1-RPIZ Hardware User Guide
1/21/2021

ADIS1613x Linux Device Drivers
1/21/2021

ADIS16375/ADIS1648x/ADIS1649x Linux Device Drivers
1/21/2021

ADIS1646x/ADIS1647x/ADIS1650x Linux Device Drivers
1/21/2021

ADI FX3 iSensor® Evaluation System

Buy Now View Details

Features and Benefits

Real-time sampling of IMU at full sample rate with no loss of data guaranteed.
No external power needed. (Can be powered from USB port.)
Completely open source API, Firmware, and Evaluation GUI.
Schematics available
API includes a wrapper library for interfacing to MATLAB, Python, LabView.

Product Details

The EVAL-ADIS-FX3 is the latest addition to the iSensor evaluation portfolio and was designed from the ground up to provide users with an easy-to-use solution for capturing reliable inertial data in lab and characterization environments. The EVAL-ADIS-FX3 incorporates the ability to capture inertial sensor data at maximum throughput while interfacing with external test equipment and reacting to external triggers.

In addition to launching a redesigned hardware platform, we’ve also developed a robust API that allows users to quickly build custom applications that capture reliable sensor data. We’ve included many useful features into the API that enable designers to characterize sensor performance in any .NET compatible environment.
