概览

优势和特点

  • AD7172-2的全功能评估板
  • PC控制结合系统演示平台(SDP)，更多信息参见ADI EVAL-SDP-CB1Z
  • PC软件用于控制和数据分析（时域）
  • 独立工作能力

产品详情

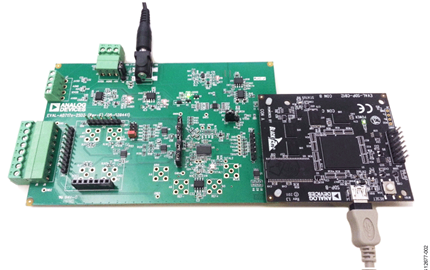

EVAL-AD7172-2SDZ评估套件具有AD7172-2、低功耗、24位、31.25 kSPS、Σ-Δ型模数转换器(ADC)，集成真轨到轨缓冲器、片上电源调节器及外部放大器部分用于放大器评估。 7 V至9 V AC-DC适配器调节到5 V和3.3 V，以便为AD7172-2供电并支持所有元件。 EVAL-AD7172-2SDZ通过EVAL-SDP-CB1Z控制器板上的SDP连接至USB端口。

EVAL-AD7172-2SDZ评估软件通过用户可访问寄存器接口全面配置AD7172-2器件功能，并提供波形图、直方图形式的直流时域分析和相关的噪声分析，以便评估ADC性能。

有关器件的完整详情可参考AD7172-2数据手册，使用EVAL-AD7172-2SDZ时应同时参阅该数据手册。

技术与领域

相关产品

包装内含

  • EVAL-AD7172-2SDZ evaluation board
  • Evaluation software CD
  • 7 V to 9 V ac-to-dc adapter
  • Plastic screw washer set

文档

  • 查看全部 (2)
  • 用户手册 (1)
  • 评估设计文件 (1)
    • Document Type

    软件

    评估软件

    ZIP
    285.72 M
    AD717x Eval+ Software (Rev. V3.3.2.3)
    Eval+ is single piece of software to aid in product selection, evaluation and debug of the AD717x. Eval+ enables customers to understand all performance trade-offs that a user or application should care about in an easy to use and understand way even without hardware. Eval+ does this by integrating a functional model of the AD717x. Customers don’t need to read pages of register information to understand and program the device as the interactive block diagram simplifies configuration and the integrated documentation pane contains all the same register information as that found in the data sheet. The Eval+ modelling functionality includes waveform and histogram plots with noise performance results, filter frequency response plots and information about the filter latency and delay. It also includes power consumption figures for the selected mode and timing information to show the impact of multiplexing channels on the AD717x.
