LTC9105
LTC9105
预发布IEEE 802.3bt PD with Telemetry and Power Priority
Viewing:
产品详情
- IEEE 802.3bt Powered Device (PD) Controller
- 400kHz I2C Interface
- Continuous Voltage, Current, and Power Telemetry
- Dedicated 14-Bit Delta-Sigma Current and Voltage ADCs
- Automatic Maintain Power Signature (MPS)
- Supports Up to 90W PDs with Extended Power
- 5-Event Classification Sensing with PSE Allocated Power Readback
- Seamless Switchover between Dual PD or PD/AUX Inputs
- Superior Surge Robustness (100V Absolute Maximum)
- Wide Junction Temperature Range (-40⁰C to 125⁰C)
- External Hot Swap N-Channel MOSFET for Lowest Power Dissipation and Highest System Efficiency
- 50mΩ Current Sense Resistor
- Auxiliary Input Sense with Standby Modes

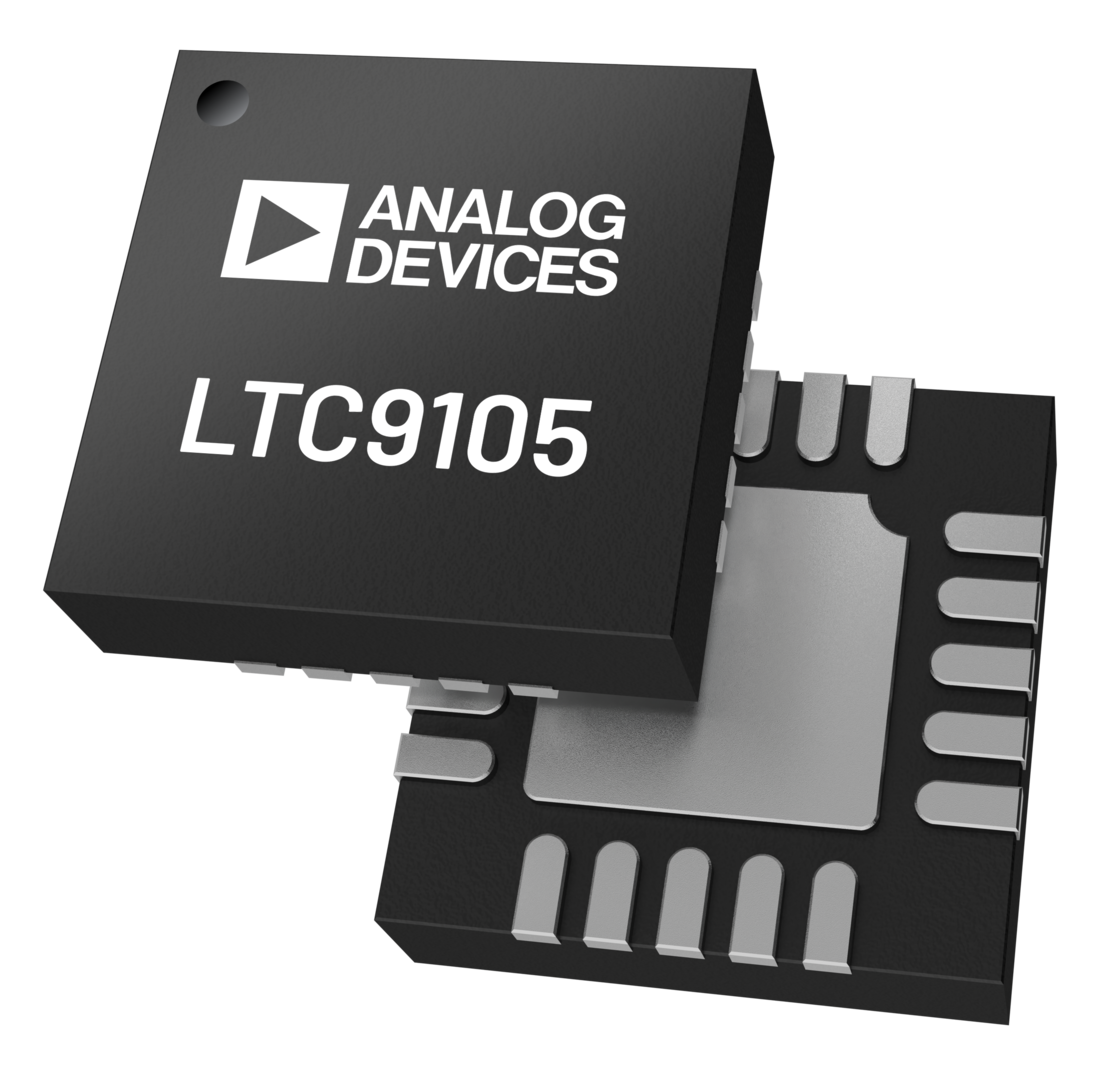

- 20-Pin 5mm x 5mm QFN Package
The LTC9105 is an IEEE 802.3af/at/bt ("PoE 2") Power over Ethernet (PoE) powered device (PD) controller with input current, voltage, and power telemetry. The LTC9105 includes an I2C interface to read telemetry, power sourcing equipment (PSE) allocated power, and auxiliary input status, and to write power input priority. The LTC9105 also features a configurable downstream power-up disable with under-power indication when the PSE allocated power is less than the PD requested power.
The LTC9105 utilizes an external, low RDS(ON), N-Channel, Hot Swap MOSFET, and a 50mΩ current sense resistor, and supports the LT4321 ideal bridge to extend the end-to-end power delivery efficiency. Also included are a power good output, external signature resistor, resistor programmable classification and pin-configurable PD requested Class. The presence of an auxiliary power supply is sensed at the AUX pin and reported through the I2C interface. Automatic maintain power signature (MPS) circuitry keeps the PD interface powered when downstream current draw falls below an internal MPS threshold.
Two dedicated Delta-Sigma ADCs continuously measure PD controller input voltage and current with a typical conversion time of 100ms and with 14-bit resolution. Simultaneous conversion of current and voltage measurements enables high-accuracy power calculations.
参考资料
软件资源
Evaluation Software 1
C API Documentation
The C API Documentation for this PD may be requested from the Software Request Form (SRF). This C API Documentation describes the I2C interface and programming details for the respective PD controller.
评估套件

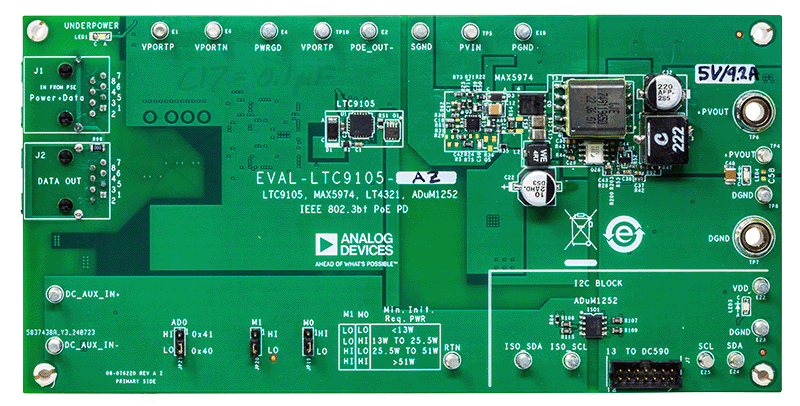

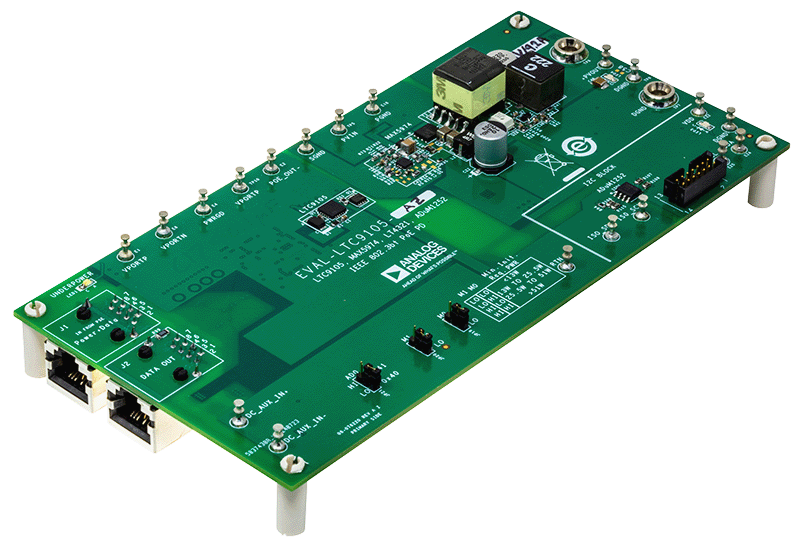

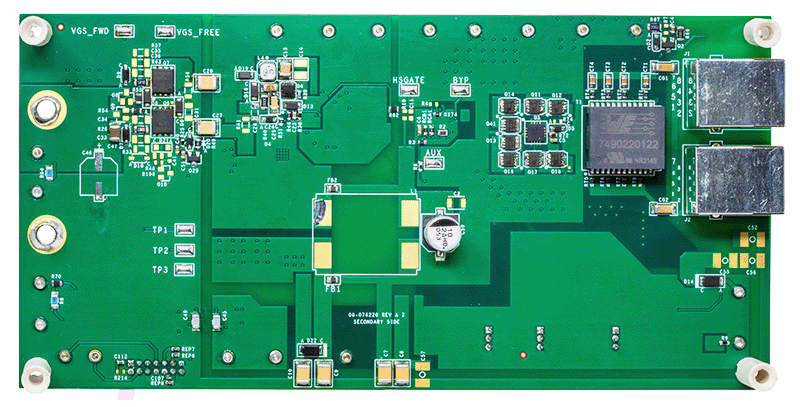

EVAL-LTC9105-AZ：具有 I2C 遥测功能的 LTC9105、MAX5974C、LT4321 和 ADuM1252 IEEE 802.3bt 受电设备
